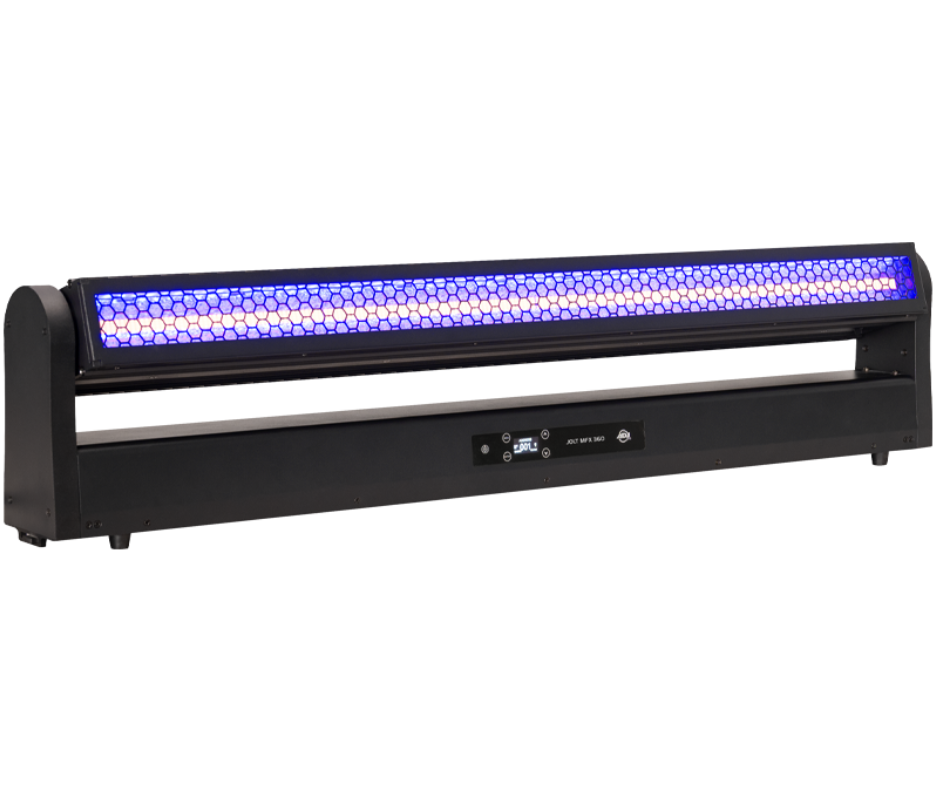

American DJ Jolt MFX 360 | 360° Dual-Sided FX with COB + SMD LEDs | DMX, ArtNet, sACN Control Support

American DJ Jolt MFX 360  (American DJ JOL360)

Hybrid LED Lighting Fixture

ADJ Jolt MFX 360 is a powerful, dual-sided lighting fixture designed to deliver a wide range of visual effects in a single, compact unit. Combining scenic vintage glow and dynamic strobe capabilities, it’s ideal for stage productions, clubs, touring acts, and permanent installs. The fixture’s continuous 360° tilt and zone-based LED control provide unmatched flexibility for high-impact light shows.

ADJ Jolt MFX 360 Competitive Differences

• Dual-sided FX: Vintage Amber COB + High-Impact White Strobe
• 360° Continuous Tilt with Zone Pixel Control

ADJ Jolt MFX 360 Description

The ADJ Jolt MFX 360 merges two signature effects—Vintage Bar and Jolt Bar—into a single hybrid unit, delivering both warm amber scenic lighting and modern strobe-driven energy. One side features four 100W COB amber LEDs surrounded by RGBL SMDs for rich retro ambiance. The reverse houses 448 cool white strobe LEDs backed by 448 RGB SMDs, perfect for dramatic washes and high-speed effects. Its continuous 360° tilt movement enables creative and dynamic positioning, while pixel-mapping zones and built-in macros allow for highly customizable programming. The Jolt MFX 360 is equipped with a lens slot for frost filters, a tilt lock for stable placement, and magnetic end caps for seamless fixture alignment when used in series. With full support for DMX, ArtNet, sACN, RDM, and ADJ's Aria X2 wireless protocol, the fixture is ready for any professional setup. NFC configuration and an OLED menu further simplify the workflow, making this unit both innovative and user-friendly. Whether you're lighting a concert stage, dance floor, or immersive environment, the Jolt MFX 360 delivers stunning visuals with the control and reliability demanded by pros.

Model Features

• Vintage and strobe bar effects combined in one fixture
• 360° continuous tilt with tilt lock
• Built-in Aria X2 wireless and NFC setup
• 128 built-in background macros, plus dim and strobe presets
• OLED menu with 4 touch buttons
• Magnetic end caps for precise alignment

Model Specifications

• Max Power Consumption: 780W (3.55A @ 220V)
• Voltage: 100–240V, 50/60Hz Auto Sensing
• Control: DMX, ArtNet, sACN, Aria X2, NFC, RDM
• Max Strobe Rate: 25Hz
• LED Life: 50,000 hours (all LEDs)
• Length: 42.4 in (1078.2 mm)
• Width: 5.1 in (129.2 mm)
• Height: 11 in (280 mm)
• Weight: 40.3 lb (18.3 kg)
• UPC: 818651028727

What's In The Box

• ADJ Jolt MFX 360 unit
• IP65 locking power cable (6.5 ft)
• Safety cable
• 2 x Omega brackets
