American DJ Protégé XM | 350W LED Spot - 16,000 Lumens | CMY + Dual Color Wheels & Dual GOBOs

American DJ Protégé XM  (American DJ PRO500)

LED Moving Head Spot

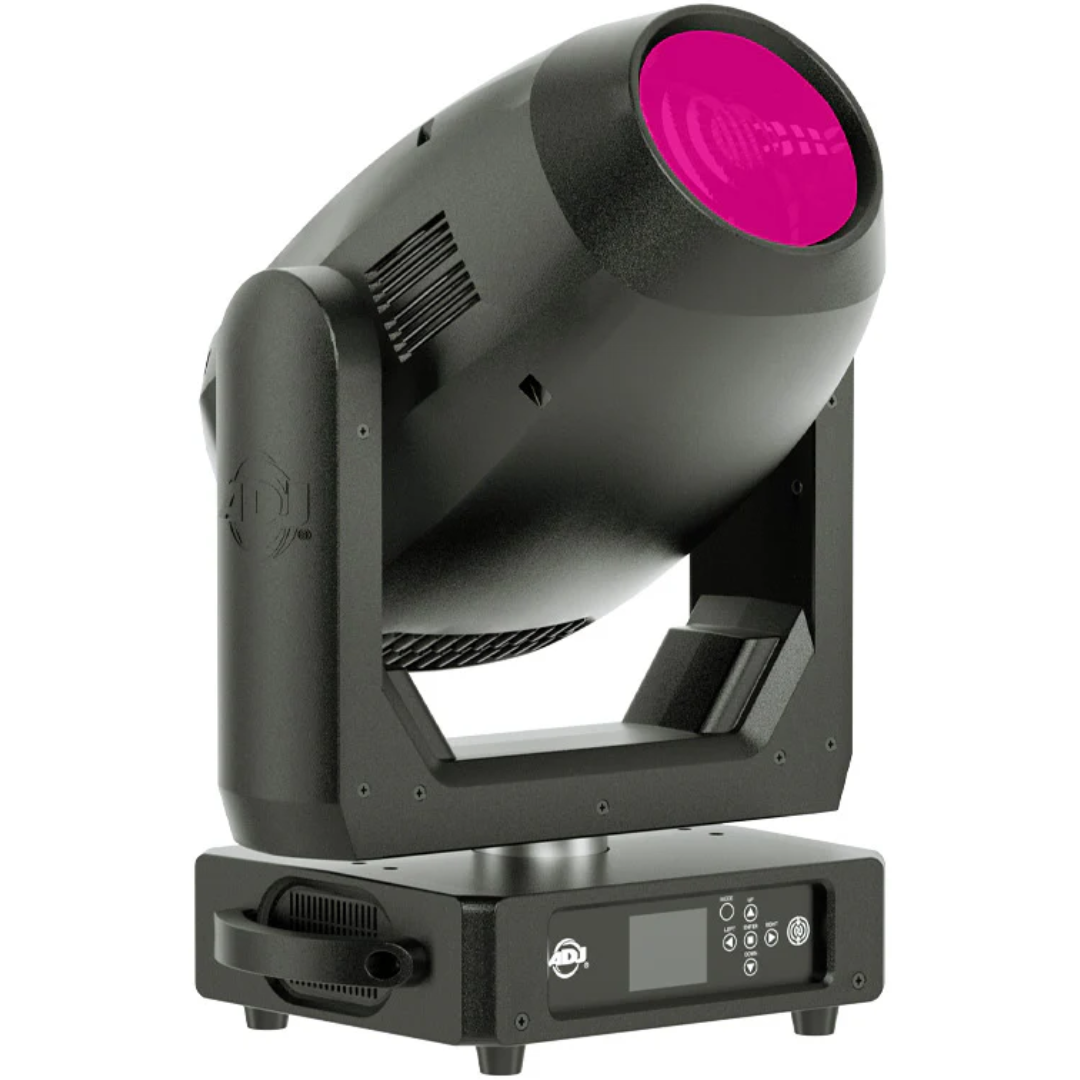

ADJ Protégé XM is a compact yet powerful moving head spot fixture designed for lighting professionals who demand performance and flexibility. Delivering up to 16,000 lumens from a 350W white LED engine, it combines fast movement, creative FX, and deep color control for impactful visual performances in a wide range of applications.

ADJ Protégé XM Competitive Differences

• 16,000 Lumen Output from 350W LED with 8000K Color Temp
• Dual Color Wheels + CMY + Dual GOBO Wheels with Overlay Effects

ADJ Protégé XM Description

The ADJ Protégé XM brings professional-grade lighting tools into a streamlined form factor. With its 350W white LED engine rated at 8000K, this fixture outputs a crisp, punchy beam ideal for both focused projections and smooth wash effects. Its optical system includes a motorized zoom ranging from 3.7° to 43°, offering seamless transitions between beam and spot applications. Color creativity is a highlight of the Protégé XM, with a full CMY color mixing system backed by two independent color wheels—each loaded with 9 rich dichroic filters, including a high CRI option and CTO for warm tones. The fixture also includes two rotating GOBO wheels with seven glass patterns each, dual 6-facet prisms (linear and circular), and two frost filters for soft washes. A rotating animation wheel rounds out the visual toolset, providing motion-rich effects for aerials and projections. Three-phase motors allow for ultra-fast pan and tilt motion with precise control, including 360° continuous pan. The fixture also includes pan/tilt locks for safe rigging and transport. Designed with the modern production environment in mind, the XM includes advanced connectivity with DMX, Art-Net, sACN, RDM, and wireless Aria X2 control, plus NFC for fixture setup via compatible smart devices. Whether used in houses of worship, touring rigs, theaters, or corporate events, the Protégé XM delivers flexible lighting performance in a manageable size—bridging power, precision, and creative control.

Model Features

• 350W White LED engine with 16,000 lumen output
• Disc-based CMY color mixing + two 9-color wheels
• Dual rotating GOBO wheels with replaceable glass patterns
• Motorized zoom range: 3.7°–43°
• Two 6-facet overlay prisms (linear + circular)
• Light and heavy frost filters for diffusion
• Animation wheel for moving pattern effects
• 360° continuous pan with 3-phase motors and pan/tilt locks
• Control via DMX, Art-Net, sACN, RDM, and Aria X2
• NFC configuration and 6-button color LCD display

Model Specifications

• Max Lumen Output: 16,000 Lumens
• LED Source: 350W White LED (8000K)
• Zoom Range: 3.7°–43°
• CRI: 70
• Strobe Rate: 1Hz – 10Hz
• Pan: 540° / 630° + 360° continuous
• Tilt: 270°
• Max Power Consumption: 675W (5.9A @ 120V)
• Voltage: AC 100–240V, 50/60Hz
• Dimensions: 14.49 x 9.76 x 22.3 in (368 x 248 x 566.5 mm)
• Weight: 48.5 lb (22 kg)
• IP Rating: IP20
• UPC: 818651029076

What's In The Box

• Protégé XM moving head fixture
• Locking power cable (6.5 ft)
• 2 x Omega brackets
• Safety cable
