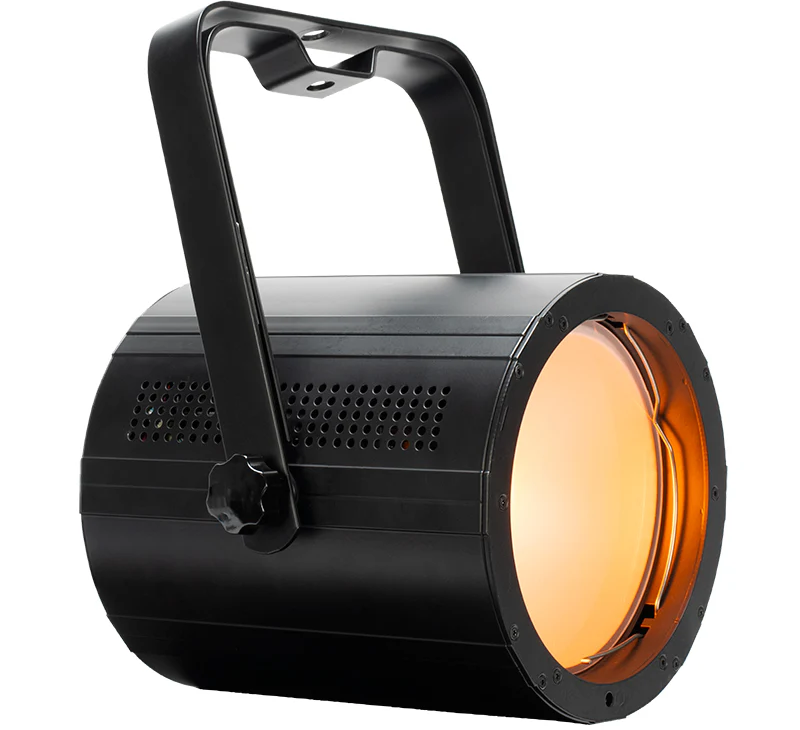

American DJ COB Cannon LP200STX | 200W RGBAL COB Wash Light | 80 Degree Beam + Wireless Aria Control

ADJ LP200STX COB Cannon  (American DJ LP-200 STX Canon)

Wash Lighting Fixture

ADJ COB Cannon LP200STX is a powerful and compact wash lighting fixture designed for versatile stage, studio, and architectural applications. Utilizing a 200W RGBAL COB LED engine, it delivers vibrant colors, high CRI, and smooth output with no color shadows. A wide 80-degree beam angle and included lens kit (40° and 50°) make it suitable for broad coverage or more focused lighting needs.

ADJ COB Cannon LP200STX Competitive Differences

• Built-in Aria X2 wireless system for app-based control and OTA updates
• RGBAL LED engine with tunable white (2300K–9900K) and CRI >90

ADJ COB Cannon LP200STX Description

The COB Cannon LP200STX from ADJ is built around a 200-Watt Chip-On-Board (COB) RGBAL LED, producing smooth, powerful output with a wide spectrum of rich colors. Its added lime chip enhances color rendering and achieves a CRI of over 90, making it ideal for live events, film, and broadcast environments that demand high-fidelity lighting. The fixture features an 80-degree native beam angle for large-area coverage, and it comes with 40-degree and 50-degree lenses for tighter beam control. Whether placed on the ground or mounted using its scissor yoke or included Omega bracket, it adapts easily to different setups. Control flexibility is a highlight, with embedded Aria X2 wireless management enabling full app-based configuration, DMX channel mode switching, firmware updates, and more. It also includes 10 selectable DMX channel modes, 64 color macros, and 6 dimming modes to meet the needs of professionals. Rear-panel 5-pin DMX and locking power In/Out connections support daisy chaining, and the unit is flicker-free for video applications. Optional barn doors are available to further refine its output, making the COB Cannon LP200STX a reliable and expandable solution for lighting designers.

Model Features

• 200W RGBAL COB LED with >90 CRI and tunable white (2300–9900K)
• Aria X2 wireless system with mobile app control and OTA firmware updates
• 80° native beam angle with included 40° and 50° lens kit
• 10 DMX channel modes and 64 built-in color macros
• Flicker-free operation with adjustable refresh rates (900–25,000Hz)
• Scissor yoke for ground or truss mounting; Omega bracket included

Model Specifications

• Max SPL: N/A (lighting product)
• Power Draw: 175W max
• Dimensions: 13 x 10.3 x 7.5 in (330 x 262 x 190 mm, with bracket)
• Weight: 9.45 lb (4.3 kg)
• UPC: 810087373849

What's In The Box

• Main unit
• 50-degree lens
• 40-degree lens
• UCIR24 Wireless IR Remote
• Power cord
• Scissor yoke
• Omega bracket
