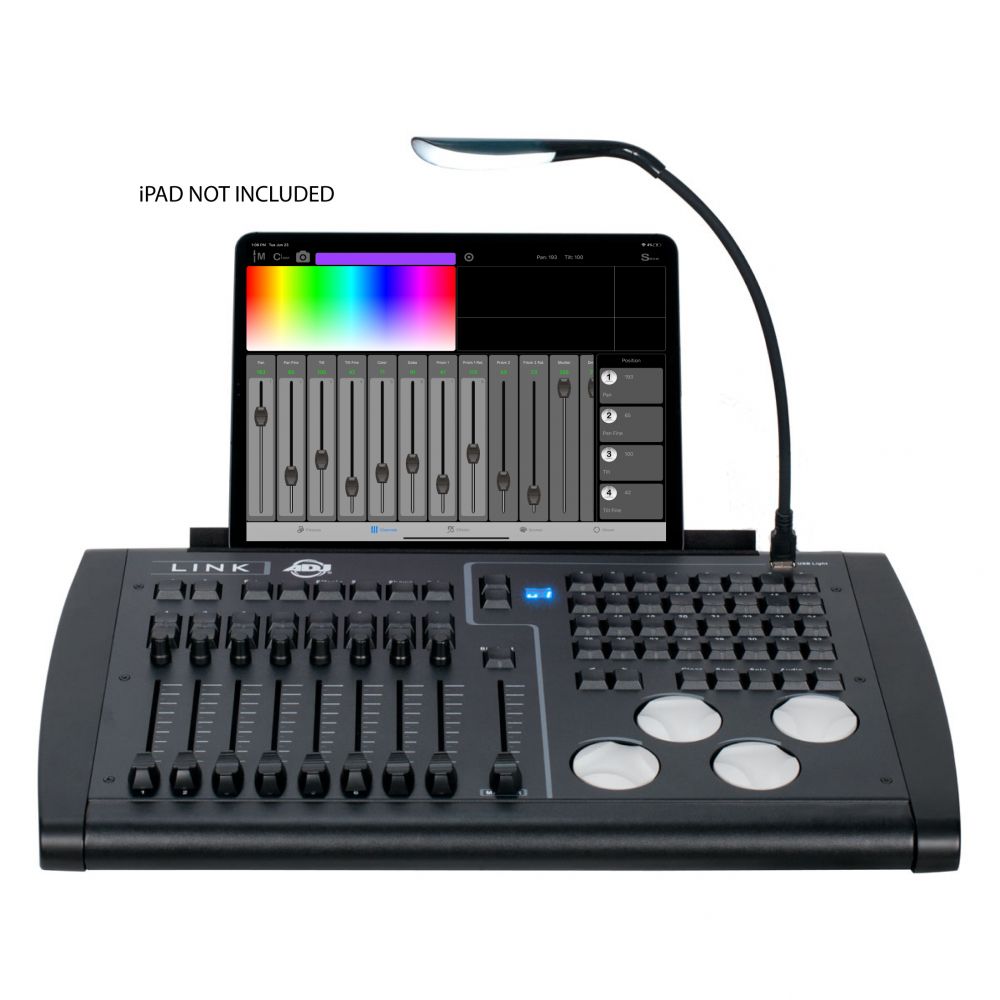

The American DJ LINK is a 4-universe DMX hardware controller designed for use with iPad and the Airstream DMX LINK iOS app. It offers wireless or hardwired iPad control, four 5-pin DMX outputs, and a removable 6U rackmount-ready outer case for lighting control in venues and events.
DMX Lighting Controller
American DJ LINK is a 4-universe DMX hardware controller designed for controlling compatible DMX lighting fixtures from an iPad using the Airstream DMX LINK iOS app. It is useful for mobile events, bars, nightclubs, small productions, and installed lighting setups that need flexible app-based control with reliable hardwired DMX output.
American DJ LINK Competitive Differences
4 hardwired DMX universes through four 5-pin XLR DMX output ports
Wireless iPad control using a private standalone 2.4 or 5 GHz DSSS WiFi network
Can also connect to an iPad by USB with a compatible adapter, not included
Dedicated physical controls including faders, rotary dials, playback buttons, encoder wheels, and blackout control
Removable outer case allows 6U rack mounting for permanent or touring setups
American DJ LINK Description
The American DJ LINK combines app-based lighting control with a hardware surface designed for hands-on programming and playback. It is built for use with the Airstream DMX LINK iOS app for iPad, giving lighting operators a flexible control system for compatible DMX devices.
For wireless operation, LINK creates a private standalone 2.4 or 5 GHz DSSS WiFi network between the controller and iPad. This allows the iPad to be undocked for remote control, programming, and playback while maintaining a dedicated connection separate from general venue WiFi.
For installations or operators who prefer a wired setup, LINK can connect to an iPad through USB using a compatible cable adapter, not included. Four 5-pin DMX outputs on the rear panel provide constant hardwired DMX output across 4 universes.
The American DJ LINK is designed for small production events, nightclubs, bars, mobile entertainers, and venues that need a robust iPad-based lighting control solution with physical faders, buttons, encoders, and rackmount flexibility.
LINK Features
4-universe DMX hardware controller for compatible DMX lighting devices
Designed for use with the Airstream DMX LINK iOS app for iPad
Wireless iPad connection using private 2.4 or 5 GHz DSSS WiFi network
Hardwired iPad connection supported with compatible USB cable adapter, not included
Four 5-pin DMX output ports for hardwired DMX signal
WiFi and DMX512 control
6 general purpose buttons
1 master fader and 8 control 100mm faders
16 page playback buttons above faders
8 rotary dials with push-in selection above faders
1 blackout button
32 instant effect or scene calling buttons
8 bump / momentary effect buttons
4 rotary encoder wheels with push-in selection
USB input for gooseneck work light

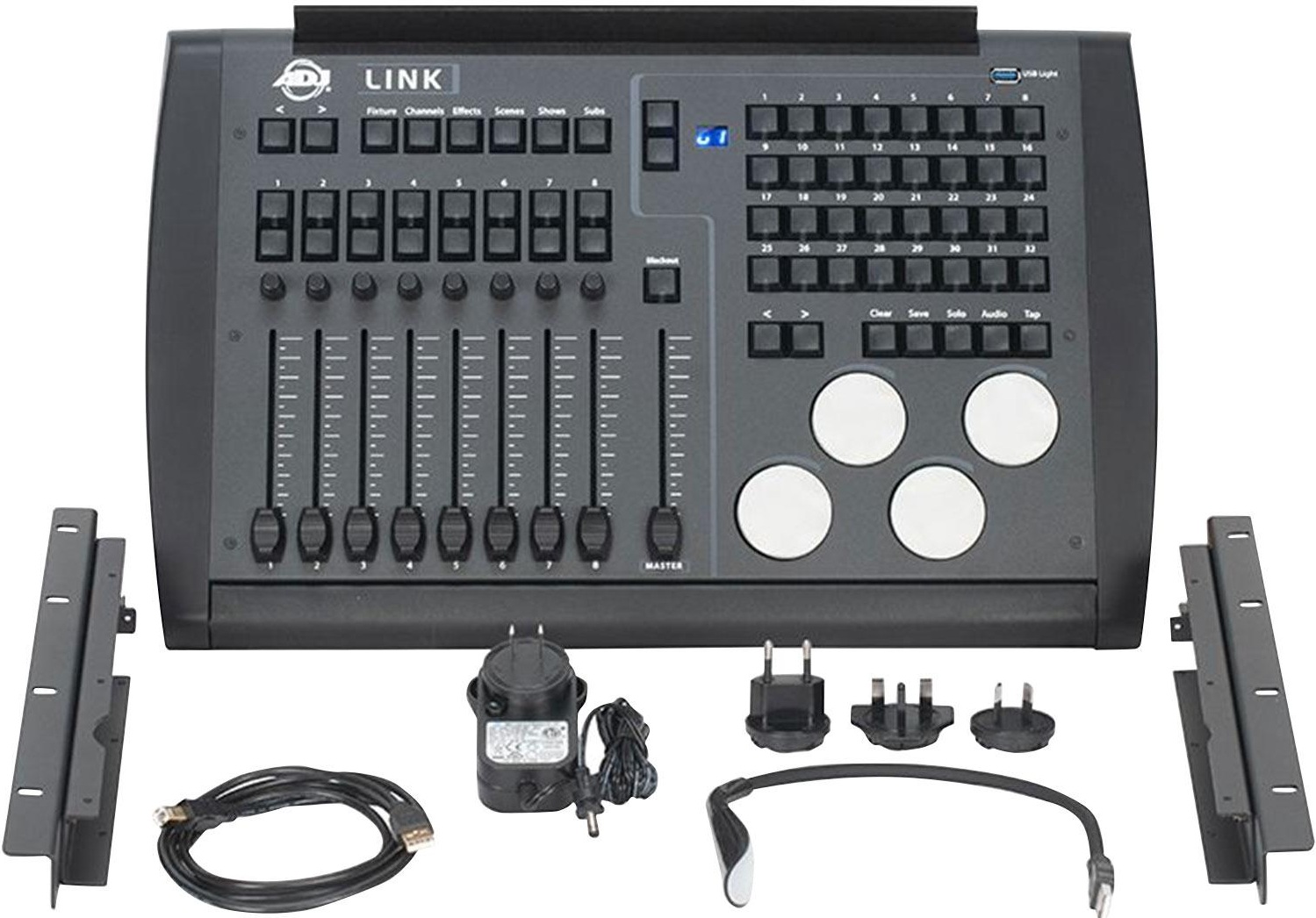

Removable outer case for 6U rack mounting
Kensington security device slot
LINK Specifications
DMX Universes: 4 hardwired DMX universes
DMX Outputs: 4 x 5-pin DMX output ports
Wireless Network: 2.4 and 5 GHz DSSS WiFi
USB Connection: USB 2.0 Type B port
Compatibility: iPad only
Required Operating System: iPadOS 14.5 or later
Rackmount Size: 6U with removable outer case
Power Supply: Multi-voltage DC9V power supply, 100-240V, 50/60Hz
Dimensions: 20.3 x 13.2 x 3.5 in (514 x 336 x 88 mm)
