American DJ Protégé XS | 250W LED Beam/Spot/Wash - 9,800 Lumens | Dual Color Wheels & 4.8°–38° Zoom

American DJ Protégé XS  (American DJ PRO300)

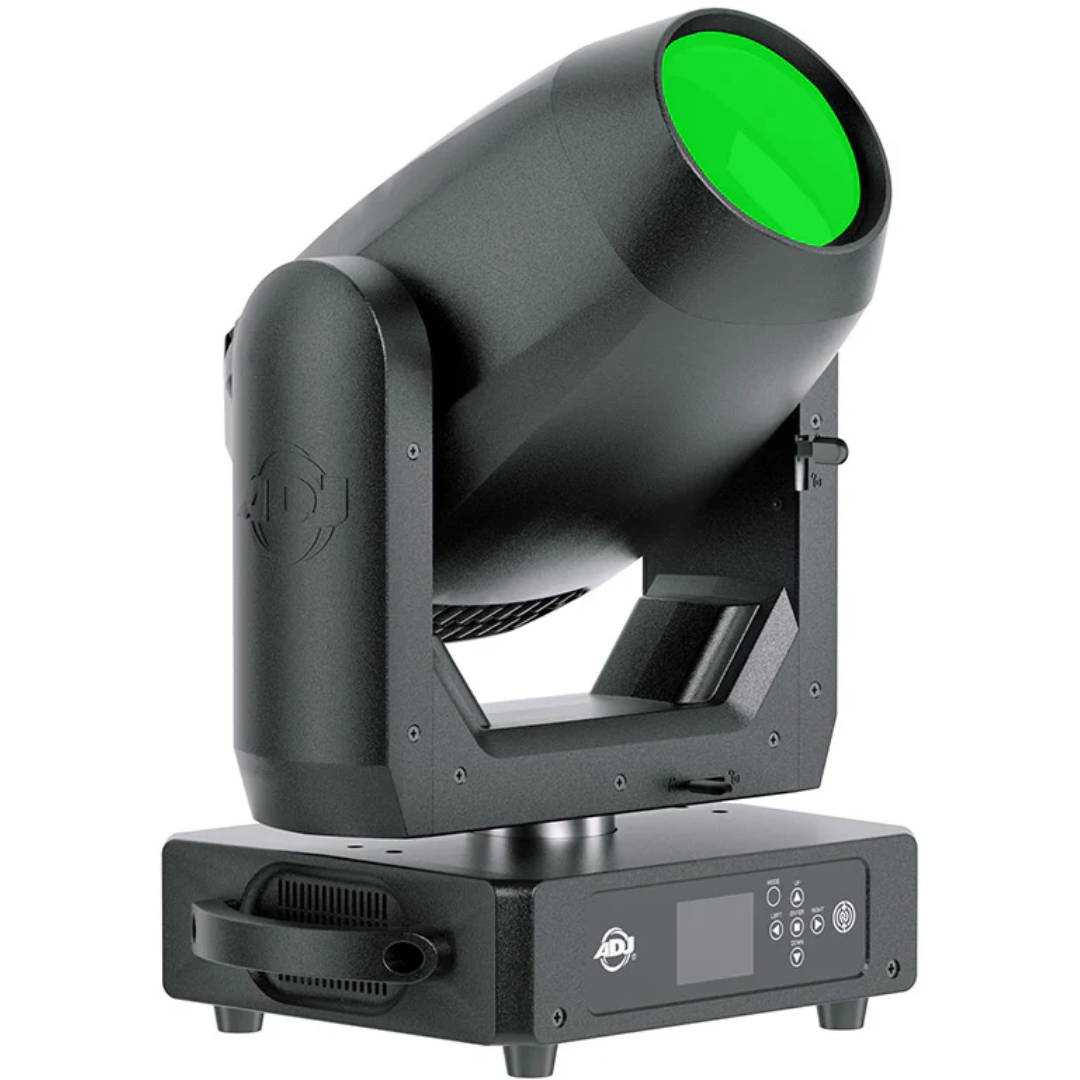

Beam/Spot/Wash Moving Head

ADJ Protégé XS is a compact LED-powered Beam/Spot/Wash fixture that delivers impressive output, precision control, and a versatile set of effects for its size. Designed for professionals working in clubs, churches, theaters, or mobile production, it provides big creative potential in a small footprint.

ADJ Protégé XS Competitive Differences

• 250W LED with 9,800 Lumen Output in a Compact Design
• Dual Color Wheels, Dual GOBOs, Dual Prisms + Frost + Animation

ADJ Protégé XS Description

The ADJ Protégé XS redefines what’s possible from a small-format moving head. Powered by a 250W white LED with an 8500K color temperature, this fixture outputs up to 9,800 lumens of crisp, vibrant light. Its motorized zoom range of 4.8°–38° supports tight aerial beams, focused projections, or wide washes—making it a go-to solution for flexible lighting environments. Color creativity is a strong suit, with two 8-color wheels offering a variety of rich hues, including quad-color effects, UV, CTO (3200K), and CTB (9000K) filters. The Protégé XS also features a rotating GOBO wheel with seven interchangeable glass patterns and a static wheel with 11 aluminum gobos, including beam reducers for narrow projections. Layered effects are easily achieved using the overlay-capable dual prisms—6-facet circular and 6-facet linear—alongside a heavy frost filter and expressive animation wheel. The fixture’s motorized focus ensures sharp imaging across its entire zoom range. Control is just as advanced. It supports both wired 5-pin DMX and wireless Aria X2 for DMX + remote fixture management, with NFC setup capabilities for fast configuration. With 360° continuous pan, pan/tilt locks, and smooth 3-phase motor movement, the XS is made for real-world production and rapid deployment. Whether replacing older fixtures or building out a new lighting rig, the Protégé XS delivers powerful output and modern features in a lightweight, reliable housing.

Model Features

• 250W White LED engine with 9,800 lumen output
• Dual color wheels with CTO, CTB, and quad-color effects
• Rotating and static GOBO wheels for textured projections
• Motorized zoom (4.8°–38°) and motorized focus
• 6-facet linear and circular prisms (overlay capable)
• Heavy frost filter for soft wash effects
• Animation wheel for added motion
• 360° continuous pan, tilt lock, and fast 3-phase motors
• Aria X2 wireless and NFC-enabled fixture management

Model Specifications

• Max Lumen Output: 9,800 Lumens
• LED Source: 250W White LED (8500K)
• Zoom Range: 4.8°–38°
• CRI: 73
• Strobe Rate: 1Hz – 10Hz
• Pan: 540° / 630° + 360° continuous
• Tilt: 270°
• Max Power Consumption: 616W
• Voltage: AC 100–240V, 50/60Hz
• Dimensions: 14.3 x 9.8 x 20 in (364 x 248 x 509 mm)
• Weight: 39 lb (17.85 kg)
• IP Rating: IP20
• UPC: 818651029069

What's In The Box

• Protégé XS moving head fixture
• Locking power cable (6.5 ft)
• 2 x Omega brackets
• Safety cable
