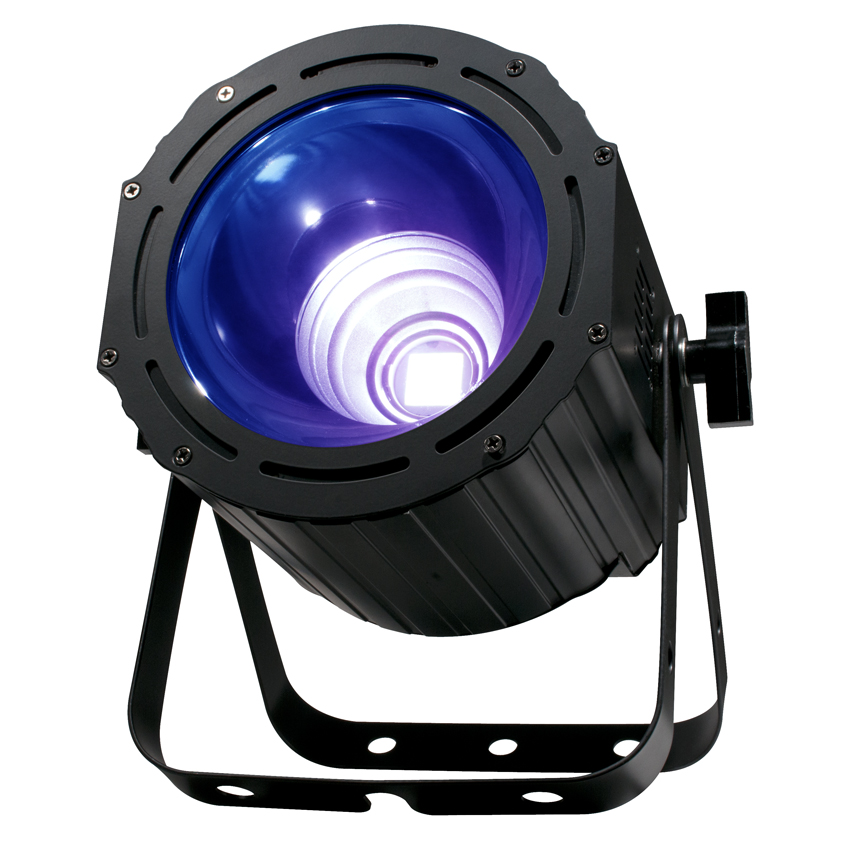

The ADJ UV COB Cannon is a professional 100W ultraviolet LED wash light designed to create powerful blacklight effects for clubs, concerts, theaters, stage productions, and entertainment venues. Featuring advanced Chip On Board (COB) LED technology, it produces smooth UV illumination within the 395-405nm wavelength range. With a 33° beam angle, sound-active, manual, and DMX operating modes, electronic dimming, and strobe effects, the UV COB Cannon provides flexible ultraviolet lighting for both mobile productions and permanent installations.
ADJ UV COB Cannon Competitive Differences
High-output 100W COB ultraviolet LED engine produces smooth UV illumination for professional blacklight effects
395-405nm UV wavelength enhances the appearance of fluorescent materials and UV-reactive surfaces
33° beam angle provides focused UV wash coverage for stages, dance floors, and special effects applications
Three operating modes include Sound Active, Manual, and DMX control for flexible setup and operation
Three selectable DMX channel modes offer 1, 2, or 3 channels of lighting control
Five selectable dimming curves provide different brightness response characteristics for stage and production applications
Flicker-free operation with a 1kHz refresh rate supports use in video and television environments
Electronic dimming from 0% to 100% with adjustable LED pulse and strobe effects
Dual-purpose mounting yoke supports overhead installation or floor placement
Locking power input and output connectors allow multiple fixtures to share an AC power connection within specified limits
Low-maintenance solid-state LED construction reduces the need for frequent lamp replacement
ADJ UV COB Cannon Description
The ADJ UV COB Cannon delivers high-output ultraviolet lighting in a compact fixture designed for professional entertainment and special effects applications. Its 100W Chip On Board LED engine combines multiple LED emitters into a concentrated light source, producing smooth UV illumination across a 33° beam angle. Operating within the 395-405nm wavelength range, the fixture enhances fluorescent clothing, UV-reactive decorations, theatrical materials, and other surfaces designed to respond to ultraviolet light. This makes it suitable for nightclubs, glow parties, performance stages, theatrical productions, and special events.
Designed for flexible operation, the UV COB Cannon offers three control modes: Sound Active, Manual, and DMX. Sound Active mode allows the fixture to respond to music, making it convenient for DJs and mobile entertainers who need synchronized lighting effects without a dedicated controller. Manual mode provides direct access to UV intensity adjustments, while DMX operation supports 1-channel, 2-channel, or 3-channel configurations for integration into larger lighting systems. A rear-mounted four-button digital display simplifies fixture addressing and operating mode selection.
The fixture provides electronic dimming from 0% to 100%, allowing operators to adjust UV intensity for different environments and production requirements. Five selectable dimming curves include Standard, Stage, TV, Architectural, and Theatre, providing control over the fixture's brightness response. Additional LED pulse and strobe effects create dynamic ultraviolet lighting patterns. Flicker-free operation with a 1kHz refresh rate also makes the fixture suitable for applications involving cameras, television, and video production.
Built for professional use, the UV COB Cannon features a durable metal housing and dual-purpose mounting yoke that allows the fixture to be suspended from compatible mounting hardware or positioned on the floor. Three-pin XLR DMX input and output connections support data linking between fixtures, while locking power input and output connectors allow multiple units to be connected to a compatible power circuit. Up to three fixtures can be power-linked at 120V or five fixtures at 220V, following the manufacturer's specifications.
The UV COB Cannon operates on an auto-switching 100-240V AC power supply and consumes approximately 120W at full output. Measuring 12.75 x 11 x 8 inches and weighing 11 pounds, it provides a portable ultraviolet lighting solution for touring productions, mobile DJs, theatrical lighting designers, and fixed entertainment installations. Its solid-state LED construction offers lower heat generation and reduced maintenance compared with traditional ultraviolet discharge lighting systems.
UV COB Cannon Features
Professional high-output ultraviolet LED wash light
100W COB (Chip On Board) UV LED engine
395-405nm ultraviolet wavelength range
33° beam angle for focused UV wash coverage
COB LED technology produces smooth ultraviolet illumination
Designed for professional blacklight and UV-reactive lighting effects
Three operating modes: Sound Active, Manual, and DMX
Sound Active mode responds to music for automated effects
Manual mode provides direct UV dimmer control
DMX control for integration into professional lighting systems
Three selectable DMX channel modes: 1, 2, or 3 channels
Four-button digital DMX display on rear panel
Electronic dimming from 0% to 100%
Five selectable dimming curves
Standard dimming curve
Stage dimming curve
TV dimming curve
Architectural dimming curve
Theatre dimming curve
LED pulse and strobe effects
Flicker-free operation for camera and video applications
1kHz LED refresh rate
Dual-purpose mounting yoke
Can be mounted overhead using appropriate rigging accessories
Can be positioned on the floor for uplighting applications
Three-pin XLR DMX input and output connections
DMX linking between compatible fixtures
Locking power input and output connectors
Power linking supports up to three fixtures at 120V
Power linking supports up to five fixtures at 220V
Auto-switching universal AC power supply
100-240V AC, 50/60Hz operation
120W maximum power consumption
Solid-state LED construction for reduced maintenance
Durable metal housing
Suitable for nightclubs, dance floors, and entertainment venues
Ideal for glow parties and fluorescent special effects
Suitable for theatrical productions and performance stages
Compact construction for mobile DJs and touring productions
ETL certified
UV COB Cannon Specifications
Product Type: Ultraviolet LED Wash Light
Brand: ADJ
Model: UV COB Cannon
Manufacturer SKU: UVC350
Light Source: 1 x 100W COB UV LED
LED Technology: Chip On Board (COB)
LED Color: Ultraviolet (UV)
UV Wavelength: 395-405nm
Beam Angle: 33°
Average LED Life: Approximately 25,000 Hours (US Specification)
