ApeLabs Connect and ADJ WolfMix WMX1 MK2 Package
(Ape Labs Connect-ADJ- WolfMix-WMX1-MK2-Package)
Ape Labs Connect 2.0 IP Grey + American DJ WMX1 MK2 Package Competitive Differences
- Combines standalone DMX programming with long-range Ape Labs wireless DMX transmission
- American DJ WMX1 MK2 operates without a computer and includes 2 DMX universes as standard
- Ape Labs Connect provides up to 3,900 ft wireless range to compatible Ape Labs fixtures
- Connect can operate as a wireless DMX transmitter or receiver
- Ape Labs Android and iOS app support adds wireless fixture setup, addressing, color selection, programs, scenes, and firmware updates
- WMX1 MK2 supports up to 680 fixtures and beams, 50 fixture types, and up to 5,000 fixture features
- WMX1 MK2 includes built-in Color, Move, and Beam FX engines for creating lighting shows in real time
- Includes a 5 ft tour-grade 110-ohm SquareCable DMX cable with 3-pin XLR connectors for connecting the controller to the wireless transceiver
Ape Labs Connect 2.0 IP Grey + American DJ WMX1 MK2 Package Description
The Ape Labs Connect 2.0 IP Grey + American DJ WMX1 MK2 Package creates a flexible lighting control system for users who want physical standalone DMX control together with Ape Labs wireless operation. The WMX1 MK2 provides hands-on programming through a 4.3-inch color touchscreen, rotary encoders, and 37 backlit silicone buttons, while the Ape Labs Connect can receive the controller's DMX signal and transmit it wirelessly to compatible Ape Labs fixtures.
The WMX1 MK2 is designed for computer-free operation and includes two DMX universes as standard, with expansion to as many as four universes available through optional WTOOLS upgrades. It supports up to 680 fixtures and beams, up to 50 fixture types, and as many as 5,000 fixture features. Eight independent fixture groups, real-time FX engines, an 8-step sequencer, color and position controls, music synchronization, and MIDI triggering make it well suited for mobile DJs, bands, clubs, bars, event spaces, and other live lighting environments.
The Ape Labs Connect 2.0 IP Grey adds wireless communication with compatible Ape Labs fixtures at distances of up to 1,200 meters / 3,900 feet. It can function as an Ape Labs app dongle, wireless DMX transmitter, wireless DMX receiver, or master microphone for Sound Active operation. Its built-in battery provides up to 50 hours of operation per charge, while 3-pin Neutrik DMX input and output connections allow it to integrate with standard DMX controllers such as the WMX1 MK2.
Using the Ape Labs Android or iOS app, users can wirelessly address and configure fixtures, create and save custom colors and programs, adjust brightness, speed, and strobe, control fixture groups, select Sound Active behavior, check battery information, update fixture firmware, and share custom programs, scenes, and colors. A compatible Android or iOS phone or tablet is required for app-based functions.
The included SquareCable DMX-05 provides the wired connection between the WMX1 MK2 and Ape Labs Connect. Its 110-ohm twisted-pair construction, all-metal 3-pin XLR connectors, gold-plated contacts, Duofoil and braided shielding, and bend-resistant jacket are designed for reliable DMX data transmission in mobile and installed lighting systems.
Package Features
- Complete controller-to-wireless-DMX package for compatible Ape Labs lighting systems
- Standalone lighting programming without a computer
- Wireless DMX range up to 3,900 ft with Ape Labs Connect
- Two DMX universes included with WMX1 MK2
- Expandable to four DMX universes through optional WTOOLS upgrades
- Supports up to 680 fixtures and beams
- Supports up to 50 different fixture types
- Supports up to 5,000 fixture features
- Eight independent fixture groups
- Color, Move, and Beam FX engines
- Music synchronization through built-in microphone or line input
- MIDI triggering support
- USB-A connection for MIDI controllers or memory sticks
- Ape Labs Android and iOS app compatibility
- Wireless Ape Labs fixture addressing and configuration
- Wireless fixture firmware updates through Ape Labs Connect
- Custom colors, scenes, and programs
- Adjustable brightness, speed, and strobe control
- Sound Active mode with master microphone or individual fixture microphones
- Connect can operate as a wireless DMX transmitter or receiver
- Connect built-in battery provides up to 50 hours of operation per charge
- Includes 5 ft tour-grade 3-pin DMX cable
Ape Labs Connect 2.0 IP Grey Features
- Dongle for Ape Labs Android and iOS app
- Wireless DMX transmitter for use with DMX controllers
- Wireless Ape Labs DMX receiver
- KNX integration capability with additional KNX-DMX adapter
- Up to 3,900 ft / 1,200 m wireless range to compatible Ape Labs fixtures
- Built-in battery with up to 50 hours of operation per charge
- 2.4 GHz wireless communication
- 3-pin Neutrik DMX input and output
- Master microphone functionality for Sound Active Mode
- Individual wireless DMX addressing for compatible Ape Labs fixtures
- Four-group management
- Can trigger one, two, three, or all four groups simultaneously
- Color wheel and color palette selection through the Ape Labs app
- Save custom colors, scenes, and programs
- Adjust brightness, speed, and strobe from 0-100%
- Blackout control for selected or all groups
- Battery run-time setting with automatic brightness adjustment
- Wireless fixture addressing, setup, and firmware updates
- Share custom programs, scenes, and colors with other users
Ape Labs Connect 2.0 IP Grey Specifications
- Wireless Frequency Range: 2.4 GHz (2400-2485 MHz)
- Transmission Power: Max. 20 dBm / approximately 100 mW EIRP
- Wireless Range: Up to 1,200 m / 3,900 ft
- Battery Life: Up to 50 Hours
- DMX Connections: 3-Pin Neutrik DMX Input and Output
- Power Requirement: 100-240V, 50-60 Hz
- Dimensions: 4.9 x 4.9 x 1.9 in
- Weight: 1.6 lb
- App Compatibility: Android and iOS
American DJ WMX1 MK2 Features
- Standalone DMX lighting controller requiring no computer
- 4.3-inch color TFT touchscreen with capacitive touch
- 37 LED-backlit silicone buttons
- Larger encoder caps for improved hands-on control
- Two DMX universes included as standard
- Expandable to four DMX universes through optional WTOOLS upgrades
- Supports up to 680 fixtures and beams
- Supports up to 50 fixture types and 5,000 fixture features
- Eight independent fixture groups
- Color FX module with eight effect types and 16 definable colors
- Move FX and Beam FX modules with eight effect types each
- Six Flash buttons for Special FX, Strobe, Blinder, Speed, Blackout, and Smoke
- Group and master dimming controls
- 16-bit Pan/Tilt control
- Multi-beam LED bar control
- Built-in microphone and 3.5 mm line input for music synchronization
- BPM synchronization through Ableton Link, OS2L, or BPM Tap
- MIDI triggering
- USB-A port for MIDI over USB and project backup
- Fixture Builder and calibration tools
- RGBW touchscreen color picker
- X-Y touchscreen positioning grid
- 8-step real-time sequencer
- Live DMX level view and channel testing
American DJ WMX1 MK2 Specifications
- Display: 4.3 in Color TFT with Tinted Glass and Capacitive Touch
- Encoders: Full-Body Alloy with Incremental Push and Acceleration
- Buttons: 37 Silicone Buttons with LED Color Backlighting
- Processing: 220 MHz ARM CPU
- Memory: 8 MB RAM, 16 MB Flash
- Audio: Built-In Microphone with Auto-Gain
- Audio Input: 3.5 mm Jack
- DMX Outputs: 2 x 3-Pin DMX OUT XLR, 1 x 5-Pin DMX OUT XLR
- DMX Input/Output: 1 x 5-Pin XLR with WLINK
- USB: USB-B Power Connection, USB-A for MIDI and Project Backup
- Housing: ABS Plastic with Powder-Coated Steel Base and Reinforced Back Plate
- Dimensions: 7.68 x 8.66 x 2.44 in (195 x 220 x 62 mm)
- Weight: 2.36 lb (1070 g)
SquareCable DMX-05 Features
- 5 ft 3-pin DMX lighting cable
- 3-pin XLR male to 3-pin XLR female connectors
- 110-ohm nominal characteristic impedance
- All-metal XLR connectors
- Gold-plated contacts
- Twisted-pair data cable with polyethylene insulation
- 100% coverage Duofoil shield
- 85% coverage tinned copper braid shield with cotton
- Durable PVC jacket
- Bend- and twist-resistant construction
- Lifetime guarantee
SquareCable DMX-05 Specifications
- Length: 5 ft
- Connector Type: 3-Pin XLR Male to 3-Pin XLR Female
- Nominal Characteristic Impedance: 110 Ohms
- Nominal Velocity of Propagation: 66%
- Nominal Delay: 1.6 ns/ft
- Nominal Capacitance, Conductor to Conductor at 1 kHz: 12.8 pF/ft
- Nominal Capacitance, Conductor to Other Conductor and Shield at 1 kHz: 23 pF/ft
- Nominal Conductor DC Resistance at 20°C: 24 Ohms/1000 ft
- Nominal Outer Shield DC Resistance at 20°C: 3.4 Ohms/1000 ft
- Nominal Attenuation at 1 MHz: 0.6 dB/100 ft
Compatible Ape Labs Products
- Coin
- Coin 2.0
- Can
- Can SE
- Can 2.0
- Mini
- Mini 2.0
- Stick
- Stick 2.0
- Stick XL 2.0
- Glow Tubes
- Double Wall Mini
- Double Wall Maxi
- DW Maxi 2.0
- Track Maxi
- Bulb GU10
- Current Ape Labs 2.0 Series Fixtures
- Original W-App
What's In The Box

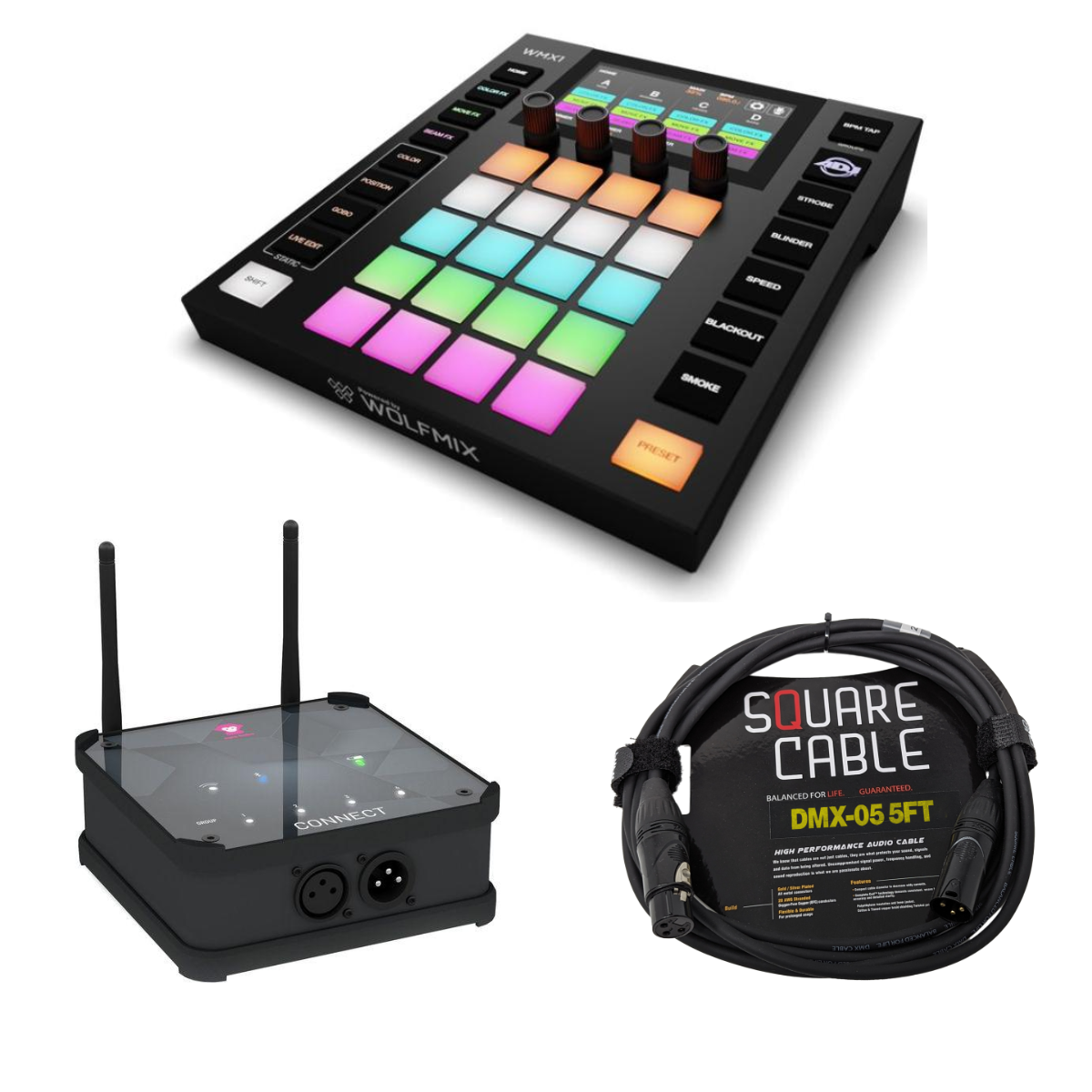

- 1 x Ape Labs Connect 2.0 IP Grey wireless DMX transceiver
- 2 x Omnidirectional antennas
- 1 x Ape Labs Connect power supply, 100-240V
- Unlimited downloads of the Ape Labs Android or iOS app
- 1 x American DJ WMX1 MK2 lighting controller
- 1 x USB-B power cable for WMX1 MK2
- 1 x WMX1 MK2 quick start guide
- 1 x SquareCable DMX-05 5 ft 3-pin DMX cable
