Apelabs Marvel Install (non-battery version)
(Ape Labs Marvel INS Pix without battery)
Mains-Powered Outdoor Pixel LED Spotlight

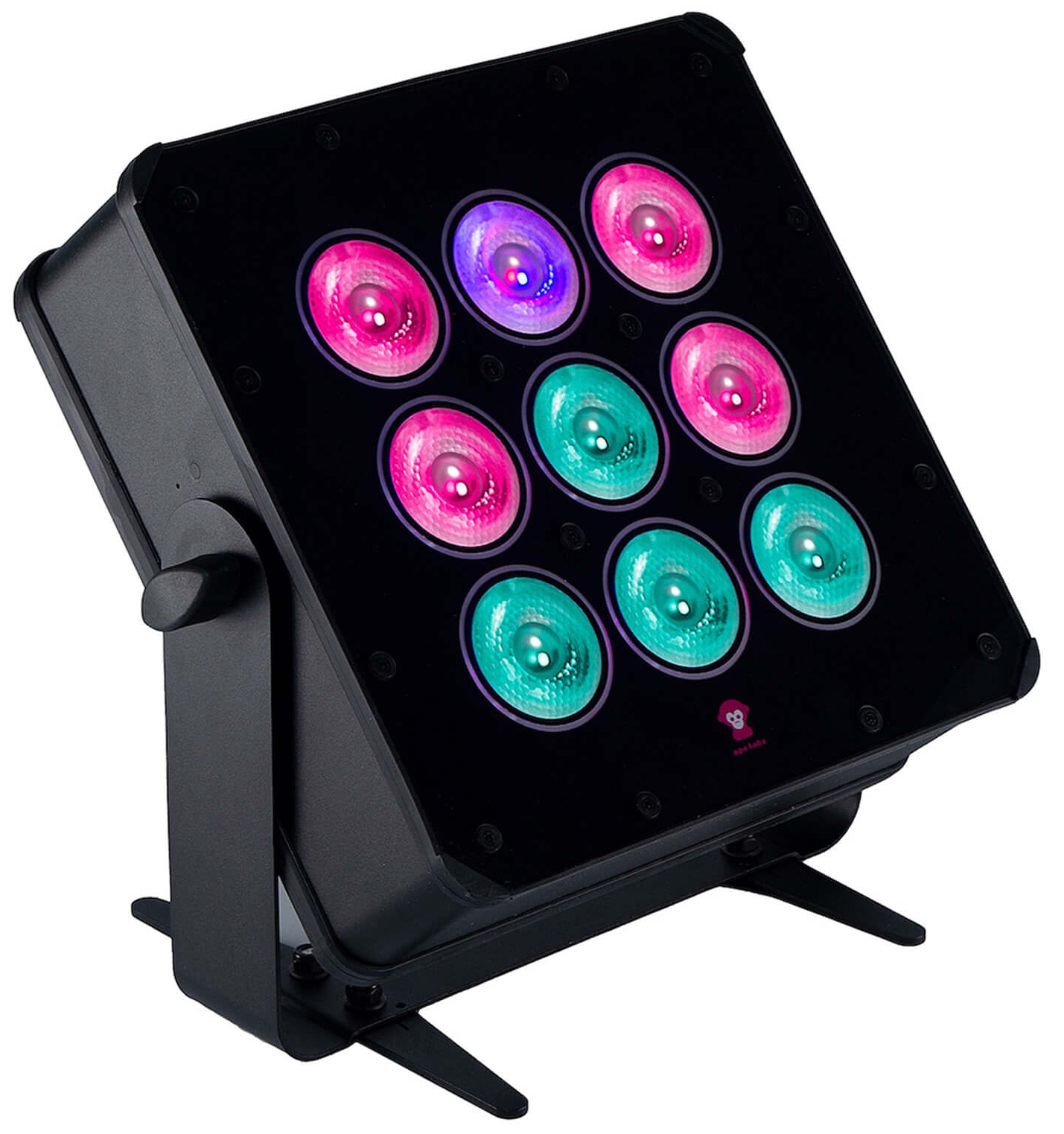

The Ape Labs Marvel Pix INS is a high-output, mains-powered pixel spotlight designed for outdoor uplighting, stage washes, architectural lighting, and individually controlled pixel effects. Its nine 18W RGBLwWcW LEDs deliver 162 watts of total LED power, homogeneous color mixing, a CRI of 90, and flicker-free operation inside a rugged, fanless IP65-rated housing.
Ape Labs Marvel Pix INS Competitive Differences
- Nine individually controllable 18W RGB, Lime, Warm White, and Cool White LED pixels
- 162W of total LED power for high-output stage, event, and architectural applications
- Mains-only INS version with Power Twist TR1 input and loop-through output
- Flicker-free DUAL-DRIVE LED control without conventional PWM dimming
- Integrated CRMX wireless DMX compatibility with LumenRadio and Wireless Solution systems
- Ape Labs CONNECT wireless control and fixture-to-fixture signal repeating at approximately 3,937 feet
- Five DMX channel modes, including 36-channel and 54-channel multipixel configurations
- 15° beam angle with homogeneous output and smooth color blending
- CRI 90 output with dedicated 2700K Warm White and 6000K Cool White emitters
- Fanless, solid-state operation for silent venues, broadcast work, and camera applications
- IP65-rated aluminum and acrylic-glass construction for indoor or outdoor operation
- Integrated motion sensor and audible alarm for theft protection
- 360° continuously rotating bracket with locking fold-out feet
- Designed, engineered, and assembled in Germany
MusikMode: One-Button Light Show
Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. Instead of relying on a basic sound-active sequence, MusikMode distributes complementary lighting behavior across connected fixtures to produce a more varied and synchronized presentation without requiring DMX programming.
DMX-Like Control Through Grouping
The Marvel Pix INS can be assigned to one of four groups for simplified control through a compatible Ape Labs remote or the Ape Labs smartphone app. Each group can be adjusted independently for color, brightness, programs, speed, strobe settings, and other parameters, while multiple groups can also be controlled together.
The iOS and Android app adds scene creation, cloud-based storage of personal fixture settings, and access to software updates. Ape Labs CONNECT is required for smartphone app control and is sold separately.
Ape Labs Ecosystem
- Four-group control for simplified multi-fixture operation
- MusikMode for automatically synchronized music-responsive light shows
- Wireless app and Ape Labs DMX communication at approximately 3,937 feet
- Automatic signal repeating from fixture to fixture
- CRMX wireless DMX compatibility
- Multipixel control through app, remote, or DMX
- Automatic integration and synchronization with compatible Ape Labs fixtures
- Cloud-based storage of personal fixture settings
- Remote fixture addressing and on-the-fly control
- Flicker-free operation for video recording and broadcast applications
- High-CRI white output and vivid color reproduction
- Solid-state, fanless operation
- Free fixture, CONNECT, and smartphone app software updates
- Compact, flat-profile aluminum housing
- Designed, engineered, and assembled in Germany
Ape Labs Marvel Pix INS Description
The Ape Labs Marvel Pix INS provides the optical performance and pixel control of the Marvel Pix platform in a mains-powered configuration without an internal battery. It is intended for permanent installations, extended productions, stage environments, and event applications where continuous AC power is available and battery operation is unnecessary.
The fixture contains nine individually addressable 18W LEDs, each combining Red, Green, Blue, Lime, 2700K Warm White, and 6000K Cool White emitters. This six-color system produces vivid saturated colors, balanced pastel shades, and clean white output with a CRI of 90. Its integrated 15° optics provide focused projection while maintaining a homogeneous beam and consistent color mixing.
Five available DMX modes support applications ranging from straightforward whole-fixture color control to complete nine-pixel programming. Users can select 6-channel 8-bit control, 12-channel 16-bit control, a 7-channel Ape Labs mode, a 36-channel RGBWW pixel mode, or a 54-channel RGBWW-NW-L pixel mode.
Control options include CRMX wireless DMX, Ape Labs CONNECT wireless DMX, the Ape Labs smartphone app, and an optional Ape Labs remote. Each fixture also functions as an automatic wireless signal repeater, helping extend communication across large venues and outdoor event spaces.
The IP65-rated enclosure is constructed from aluminum and acrylic glass for dependable indoor and outdoor use. Its passive, fanless cooling system provides silent operation, while DUAL-DRIVE technology delivers flicker-free LED control without conventional PWM. A continuously rotating bracket, locking fold-out feet, M6 safety point, motion sensor, and audible theft alarm make the fixture suitable for both floor placement and secured overhead installation.
Marvel Pix INS Features
- Mains-powered outdoor pixel LED spotlight
- Designed for uplighting, stage washes, architectural lighting, and pixel effects
- Nine individually controllable LED pixels
- 18W output per LED for 162W total LED power
- RGB, Lime, Warm White, and Cool White color mixing
- 2700K Warm White and 6000K Cool White emitters
- 7 mm multi-color LED chip design
- CRI 90 color rendering
- 15° beam angle
- Homogeneous beam and color mixing
- Multipixel presets controllable through the app and compatible remote
- Complete control over color, brightness, effects, and programs
- Flicker-free DUAL-DRIVE LED control without conventional PWM
- CRMX wireless DMX support
- Ape Labs CONNECT wireless DMX support
- iOS and Android app control through Ape Labs CONNECT
- Compatible with the optional Ape Labs remote
- Automatic fixture-to-fixture signal repeater
- Approximate 3,937-foot wireless CONNECT and repeater range
- Four-group fixture control
- MusikMode automatic music-responsive programming
- Cloud-based storage of personal fixture settings
- Free software updates for the fixture, CONNECT, and smartphone apps
- Motion-sensor theft protection with audible alarm
- Fanless operation
- IP65-rated construction
- Power Twist TR1 power input and loop-through output
- 360° continuously rotating mounting bracket
- Fold-out feet with locking positions for stable floor placement
- Two safety options through the bracket or included M6 eyelet
- Black aluminum and acrylic-glass housing
- Made in Germany
Marvel Pix INS Specifications
- Product Type: Mains-powered outdoor pixel LED spotlight
- Construction Type: Flat PAR
- Number of LEDs: 9
- LED Power: 18W per LED
- Total LED Power: 162W
- LED Type: RGB + Lime + Warm White + Cool White multi-color chip
- Warm White Color Temperature: 2700K
- Cool White Color Temperature: 6000K
- Color Rendering Index: CRI 90
- Beam Angle: 15°
- Pixel Control: 9 individually controllable pixels
- Dimming Technology: Flicker-free DUAL-DRIVE without conventional PWM
- Fanless: Yes
- Floor Housing: Yes
- Remote Control: Optional
- Wireless DMX: CRMX and Ape Labs CONNECT
- App Compatibility: iOS and Android through Ape Labs CONNECT
- Wireless Range: Approximately 3,937 ft (1,200 m) through CONNECT
- Automatic Signal Repeater: Yes
- Radio Frequency: 2.400–2.485 GHz
- Maximum Radio Output: 20 dBm, approximately 100 mW EIRP
- DMX Mode 1: 6-channel, 8-bit RGBWW-NW-L
- DMX Mode 2: 12-channel, 16-bit RGBWW-NW-L
- DMX Mode 3: 7-channel Ape Labs mode
- DMX Mode 4: 54-channel, 9-pixel RGBWW-NW-L mode
- DMX Mode 5: 36-channel, 9-pixel RGBWW mode
- Power Input and Output: Power Twist TR1
- Input Voltage: 100–240 VAC
- Battery: None
- Protection Rating: IP65
- Housing Material: Aluminum and acrylic glass
- Housing Color: Black
- Mounting: Rotating bracket with fold-out feet and M6 safety point
- Dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
- Fixture Weight: 7.1 lb (3.2 kg)
- Packed Dimensions: 11.8 x 11.8 x 3.9 in (30 x 30 x 10 cm)
- Packed Weight: 8.4 lb (3.8 kg)
- Item Number: 100550
- EAN: 4260482884925
- HS Code: 94054210000
- Country of Manufacture: Germany
What's In The Box
- Ape Labs Marvel Pix INS fixture with mounting bracket
- Power Twist TR1 connection cable
- M6 safety eyelet
Controller Note: A controller is not included with a single fixture. An Ape Labs remote, Ape Labs CONNECT, or a compatible CRMX control system is required for wireless operation.
