Apelabs Marvel Wash Install (non-battery)
(Ape Labs Marvel Flood INS Pix)
Mains-Powered Pixel LED Wash Light

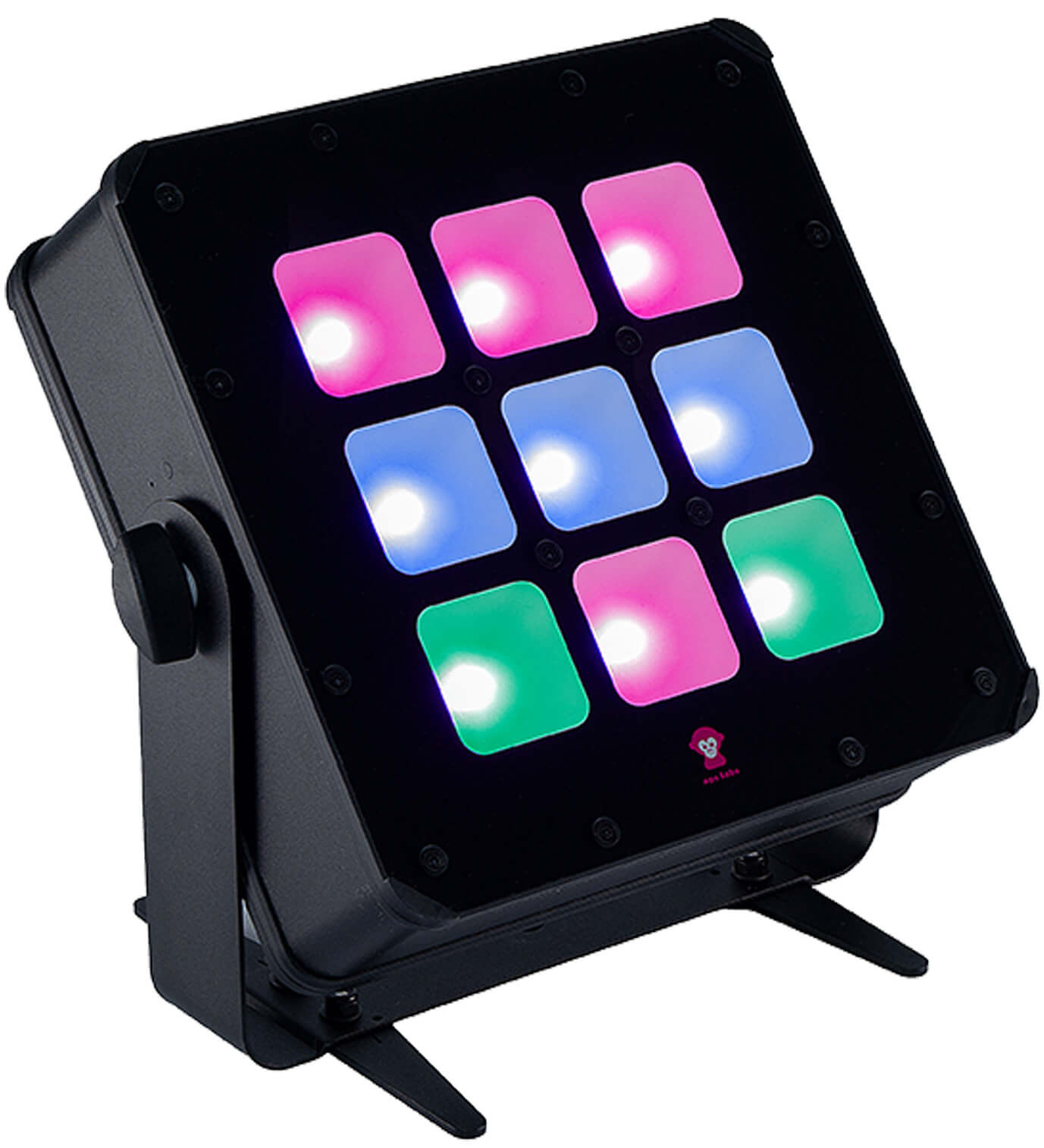

The Ape Labs Marvel Pix Wash INS is a high-output, mains-powered pixel wash light designed for ultra-wide coverage on cycs, stages, scenery, and dance floors—indoors or outdoors. With nine individually controllable 18W RGBLwWcW LEDs and factory-installed 150° wash optics, it delivers smooth, homogeneous color, high-CRI white light, wireless control, and flicker-free performance inside a rugged, fanless IP65-rated housing.
Ape Labs Marvel Pix Wash INS Competitive Differences
- Nine individually controllable 18W RGB, Lime, Warm White, and Cool White LED pixels
- 162W of total LED power for high-output stage, event, and architectural wash applications
- Factory-installed 150° ultra-wide wash optics for seamless cyc, stage, scenery, and dance floor coverage
- Mains-only INS version with Power Twist TR1 input and loop-through output
- Full multipixel control with 6-channel, 7-channel, 12-channel, 36-channel, and 54-channel DMX modes
- Flicker-free DUAL-DRIVE LED control without conventional PWM dimming
- Integrated CRMX wireless DMX compatibility with LumenRadio and Wireless Solution systems
- Ape Labs CONNECT wireless control and fixture-to-fixture signal repeating at approximately 3,937 feet
- CRI 90 output with dedicated 2700K Warm White and 6000K Cool White emitters
- Fanless, solid-state operation for silent venues, broadcast work, and camera applications
- IP65-rated aluminum housing for dependable indoor and outdoor use
- Integrated motion sensor and audible alarm for theft protection
- 360° continuously rotating bracket with locking fold-out feet
- Designed, engineered, and assembled in Germany
MusikMode: 1-Button Light Show
Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. Instead of relying on a basic sound-active sequence, MusikMode distributes complementary lighting behavior across connected fixtures to produce a more varied and synchronized presentation without requiring DMX programming.
DMX-Like Control via Grouping
The Marvel Pix Wash INS can be assigned to one of four groups for simplified control through a compatible Ape Labs remote or the Ape Labs smartphone app. Each group can be adjusted independently for color, brightness, programs, speed, strobe settings, and other parameters, while multiple groups can also be controlled together.
The iOS and Android app adds scene creation, cloud-based storage of personal fixture settings, and access to software updates. Ape Labs CONNECT is required for smartphone app control and is sold separately.
Ape Labs Ecosystem
- Four-group control for simplified multi-fixture operation
- MusikMode for automatically synchronized music-responsive light shows
- Wireless app and Ape Labs DMX communication at approximately 3,937 feet
- Automatic signal repeating from fixture to fixture
- CRMX wireless DMX compatibility
- Multipixel control through app, remote, or DMX
- Automatic integration and synchronization with compatible Ape Labs fixtures
- Cloud-based storage of personal fixture settings
- Remote fixture addressing and on-the-fly control
- Color macros developed for professional event applications
- Flicker-free operation for video recording and broadcast applications
- High-CRI white output and vivid color reproduction
- Solid-state, fanless operation
- Free fixture, CONNECT, and smartphone app software updates
- Compact, flat-profile aluminum housing
- Designed, engineered, and assembled in Germany
Ape Labs Marvel Pix Wash INS Description
The Ape Labs Marvel Pix Wash INS provides the ultra-wide coverage and pixel control of the battery-powered Marvel Pix Wash in a mains-powered configuration without an internal battery. It is intended for permanent installations, extended productions, touring stages, and event applications where continuous AC power is available and battery operation is unnecessary.
Each of the fixture’s nine individually addressable 18W LEDs combines Red, Green, Blue, Lime, 2700K Warm White, and 6000K Cool White emitters. This six-color system delivers vivid saturated tones, balanced pastel shades, and clean tunable white output with a CRI of 90. Factory-installed 150° optics spread the output across an extremely wide area, producing a smooth, homogeneous wash for cycs, scenery, stage backgrounds, ceilings, and dance floors.
Five selectable DMX modes support applications ranging from straightforward whole-fixture color control to complete nine-pixel programming. Users can choose 6-channel 8-bit control, 12-channel 16-bit control, a 7-channel Ape Labs mode, a 36-channel RGBWW pixel mode, or a 54-channel RGBWW-NW-L pixel mode.
Control options include CRMX wireless DMX, Ape Labs CONNECT wireless DMX, the Ape Labs smartphone app, and an optional Ape Labs remote. Each fixture also functions as an automatic wireless signal repeater, helping extend communication throughout large venues, production spaces, and outdoor event sites.
The IP65-rated enclosure is constructed from aluminum with an acrylic-glass front for dependable indoor and outdoor use. Passive, fanless cooling provides silent operation, while DUAL-DRIVE technology delivers flicker-free LED control without conventional PWM. A continuously rotating bracket, locking fold-out feet, M6 safety point, motion sensor, and audible theft alarm make the fixture suitable for floor placement, truss mounting, and fixed installations.
Marvel Pix Wash INS Features
- Mains-powered outdoor pixel LED wash light
- Designed for cycs, scenery, stages, ceilings, dance floors, and architectural washes
- Nine individually controllable LED pixels
- 18W output per LED for 162W total LED power
- RGB, Lime, Warm White, and Cool White color mixing
- 2700K Warm White and 6000K Cool White emitters
- 7 mm 6-in-1 RGBLwWcW LED chip design
- CRI 90 color rendering
- 150° ultra-wide wash optics
- Homogeneous light output and smooth color mixing
- Multipixel presets controllable through the app and compatible remote
- Complete control over color, brightness, effects, and programs
- Flicker-free DUAL-DRIVE LED control without conventional PWM
- CRMX wireless DMX support
- Ape Labs CONNECT wireless DMX support
- iOS and Android app control through Ape Labs CONNECT
- Compatible with the optional Ape Labs remote
- Automatic fixture-to-fixture signal repeater
- Approximate 3,937-foot wireless CONNECT and repeater range
- Four-group fixture control
- MusikMode automatic music-responsive programming
- Cloud-based storage of personal fixture settings
- Free software updates for the fixture, CONNECT, and smartphone apps
- Motion-sensor theft protection with audible alarm
- Fanless, solid-state operation
- IP65-rated construction
- Power Twist TR1 power input and loop-through output
- 360° continuously rotating mounting bracket
- Fold-out feet with locking positions for stable floor placement
- Safety mounting through the bracket or M6 eyelet
- Black aluminum and acrylic-glass housing
- Made in Germany
Marvel Pix Wash INS Specifications
- Product Type: Mains-powered outdoor pixel LED wash light
- Construction Type: Flat PAR
- Number of LEDs: 9
- LED Power: 18W per LED
- Total LED Power: 162W
- LED Type: 7 mm 6-in-1 RGB + Lime + Warm White + Cool White
- Warm White Color Temperature: 2700K
- Cool White Color Temperature: 6000K
- Color Rendering Index: CRI 90
- Beam Angle: 150°
- Pixel Control: 9 individually controllable pixels
- Dimmable: Yes
- Dimming Technology: Flicker-free DUAL-DRIVE without conventional PWM
- Fanless: Yes
- Floor Housing: Yes
- Remote Control: Optional
- Wireless DMX: CRMX and Ape Labs CONNECT
- App Compatibility: iOS and Android through Ape Labs CONNECT
- Wireless Range: Approximately 3,937 ft (1,200 m) through CONNECT
- Automatic Signal Repeater: Yes
- Radio Frequency: 2.400–2.485 GHz
- Maximum Radio Output: 20 dBm, approximately 100 mW EIRP
- DMX Mode 1: 6-channel, 8-bit RGBWW-NW-L
- DMX Mode 2: 12-channel, 16-bit RGBWW-NW-L
- DMX Mode 3: 7-channel Ape Labs mode
- DMX Mode 4: 54-channel, 9-pixel RGBWW-NW-L mode
- DMX Mode 5: 36-channel, 9-pixel RGBWW mode
- Power Input and Output: Power Twist TR1
- Input Voltage: 100–240 VAC, 50/60Hz
- Battery: None
- Protection Rating: IP65
- Housing Material: Aluminum with acrylic-glass front
- Housing Color: Black
- Mounting: 360° rotating bracket with fold-out feet and M6 safety point
- Dimensions: 11.2 x 10.4 x 3.1 in (28.5 x 26.5 x 8.0 cm)
- Fixture Weight: 7.1 lb (3.2 kg)
- Country of Manufacture: Germany
What's In The Box
- Ape Labs Marvel Pix Wash INS fixture with mounting bracket
- Power Twist TR1 connection cable
- M6 safety eyelet
Controller Note: A controller is not included with a single fixture. An Ape Labs remote, Ape Labs CONNECT, or a compatible CRMX control system is required for wireless operation.
