Apelabs Neon Pix Install
(Ape Labs Neon Pix (non-battery))
Mains-Powered Multipixel LED Tube Light

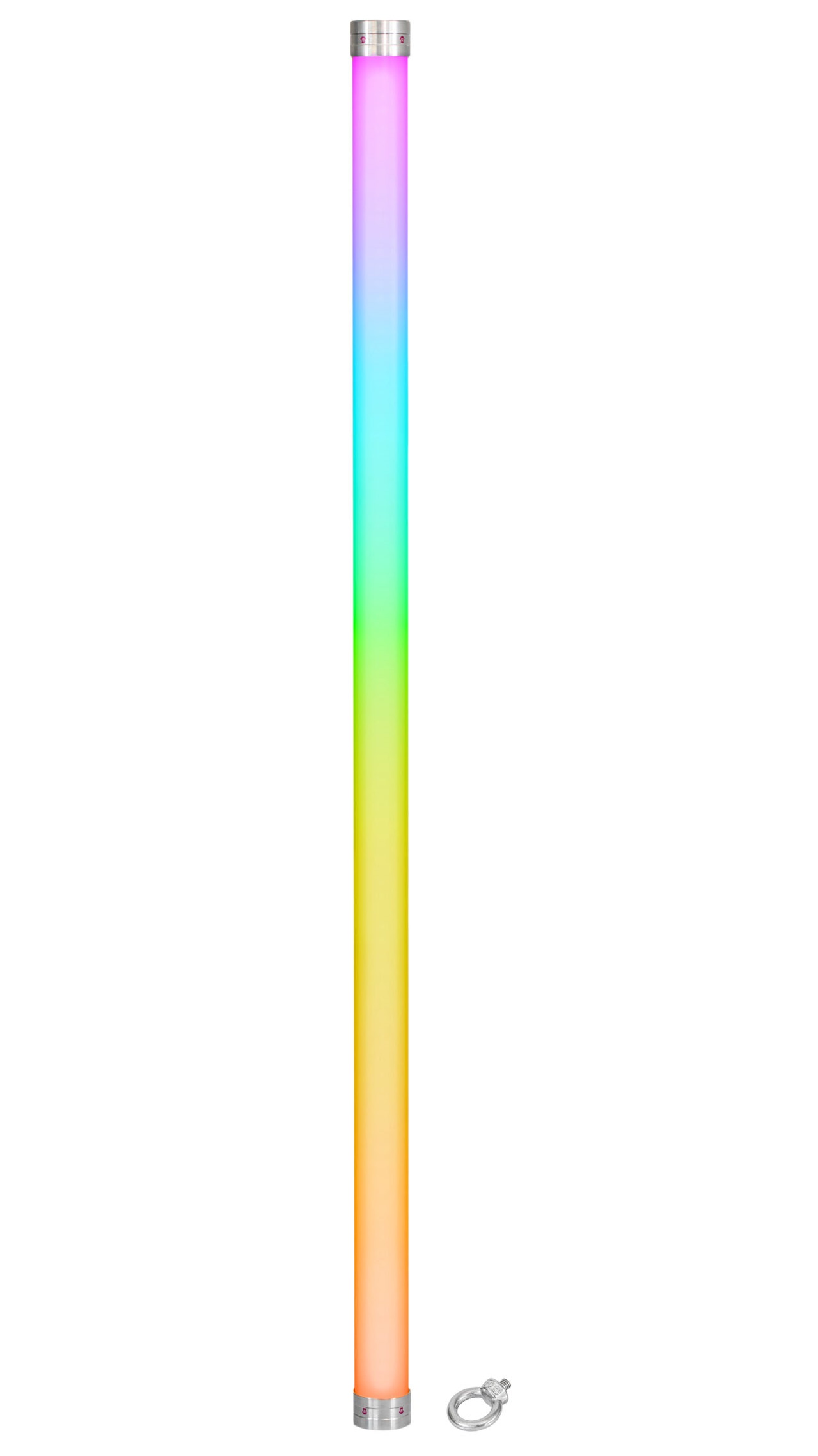

The Ape Labs Neon Pix INS is a mains-powered, 1-meter RGBWW pixel tube designed for permanent indoor and outdoor lighting installations. Its 96 LEDs are divided into 32 individually controllable pixels, producing smooth animated effects, homogeneous 180° illumination, and warm white output without visible LED dots.
Ape Labs Neon Pix INS Competitive Differences
- 96 RGB and Warm White LEDs arranged across 32 individually controllable pixel zones
- Mains-powered INS version designed for permanent installations without an internal battery
- Homogeneous illumination without visible individual LED points
- 180° beam angle for wide room, profile, scenic, and architectural lighting
- CRI 90 output with dedicated 2700K Warm White LEDs
- 750-lumen output from a compact 1-meter tube
- Four selectable DMX modes, including full 32-pixel RGBWW control
- Wireless DMX through CRMX and Ape Labs CONNECT
- Automatic fixture-to-fixture signal repeating for wireless networks extending up to approximately 4,000 feet
- Flicker-free operation above 2 kHz for video, photography, and broadcast environments
- IP65-rated polycarbonate tube for indoor and outdoor installations
- Silent, fanless operation
- Flexible mounting with two removable neodymium magnets and five M6 mounting threads
- Secure device pairing and cloud-based storage of personal fixture settings
- Designed, engineered, and assembled in Germany
MusikMode: 1-Button Light Show
Ape Labs MusikMode allows compatible Ape Labs fixtures to automatically work together and create a coordinated light show that responds to music. With no traditional DMX programming required, connected fixtures distribute complementary colors and effects across the lighting system to create a synchronized, continuously changing presentation.
DMX-Like Control via Grouping
The Neon Pix INS can be assigned to one of four control groups through a compatible Ape Labs remote or the Ape Labs smartphone app. Users can independently adjust each group’s color, brightness, programs, effect speed, and strobe settings without changing fixtures assigned to other groups.
Multiple groups can also be controlled simultaneously, while the app provides scene creation and cloud-based storage of personal fixture settings. Ape Labs CONNECT is required for smartphone app and Ape Labs wireless DMX control and is sold separately.
Ape Labs Ecosystem
- Four-group control for flexible multi-fixture operation
- MusikMode for synchronized music-responsive light shows
- Wireless app and Ape Labs DMX communication at approximately 4,000 feet
- Automatic wireless signal repeating from fixture to fixture
- CRMX wireless DMX compatibility
- Multipixel presets controllable through the app and compatible remote
- Automatic integration with compatible Ape Labs fixtures
- Secure pairing for stable wireless connections
- Cloud-based storage of personal fixture settings
- Remote addressing and on-the-fly programming
- Flicker-free output for video recording and broadcast use
- High-CRI Warm White output and vivid RGB color reproduction
- Solid-state, fanless operation
- Free software updates for fixtures, CONNECT, and smartphone apps
- Regular feature updates inspired by the Ape Labs user community
- Compact and lightweight construction
- Designed, engineered, and assembled in Germany
Ape Labs Neon Pix INS Description
The Ape Labs Neon Pix INS brings the pixel control and homogeneous output of the battery-powered Neon Pix to a mains-powered format developed specifically for permanent installations. Without an internal battery or included power supply, it is well suited for venues, architectural projects, scenic installations, retail environments, studios, and other applications where continuous low-voltage power is already available.
The 1-meter polycarbonate tube contains 96 LEDs divided into 32 individually controllable RGBWW pixels. This high pixel density supports detailed chases, flowing gradients, animated color effects, and smooth transitions while maintaining an even illuminated surface without visible LED dots. A 180° beam angle spreads the light widely across walls, ceilings, scenery, and room interiors.
Dedicated 2700K Warm White LEDs provide natural white output with a CRI of 90, while the RGB emitters create saturated colors and subtle pastel tones. The fixture produces up to 750 lumens and operates flicker-free above 2 kHz, making it appropriate for live video, photography, broadcast studios, and camera-heavy event environments.
Control options include CRMX wireless DMX, Ape Labs CONNECT wireless DMX, the Ape Labs smartphone app, and a compatible Ape Labs remote. Four DMX configurations range from basic whole-tube RGBWW control to complete 128-channel programming of all 32 pixels. Each fixture also acts as an automatic wireless repeater, helping extend the network through large venues and installation sites.
The IP65-rated polycarbonate body and aluminum end caps provide dependable protection for indoor or outdoor use. Two removable neodymium magnets allow fast attachment to suitable metal surfaces, while five M6 mounting threads offer additional installation flexibility. Fanless operation keeps the tube silent, and the included M6 eyelet provides an additional safety option.
Neon Pix INS Features
- Mains-powered multipixel RGBWW LED tube for permanent installation
- No internal battery
- Power supply not included
- Designed for room lighting, profile lighting, scenic work, and architectural installations
- 1-meter tube length
- 96 LEDs divided into 32 individually controllable pixels
- RGB and 2700K Warm White LED configuration
- CRI 90 color rendering
- 750-lumen output
- 180° beam angle
- Homogeneous light pattern without visible LED dots
- Complete control over color, brightness, effects, and programs
- Multipixel presets controllable through the app and compatible remote
- Flicker-free operation above 2 kHz
- CRMX wireless DMX support
- Ape Labs CONNECT wireless DMX support
- iOS and Android app control through Ape Labs CONNECT
- Compatible with the optional Ape Labs remote
- Automatic fixture-to-fixture wireless signal repeater
- Wireless range up to approximately 4,000 feet through Ape Labs CONNECT
- Four selectable DMX channel modes
- Four-group fixture control
- MusikMode automatic music-responsive programming
- Secure pairing with compatible Ape Labs fixtures
- Cloud-based storage of personal fixture settings
- Free software updates for the fixture, CONNECT, and smartphone apps
- Fanless, silent operation
- IP65-rated construction
- Polycarbonate tube with aluminum end caps
- Two removable threaded neodymium mounting magnets
- Five M6 mounting threads on the end caps
- M6 safety eyelet included
- Made in Germany
Neon Pix INS Specifications
- Product Type: Mains-powered multipixel RGBWW LED tube
- Installation Type: Permanent indoor or outdoor installation
- LED Count: 96
- Controllable Pixels: 32
- LED Color System: RGB + Warm White
- Warm White Color Temperature: 2700K
- Color Rendering Index: CRI 90
- Luminous Flux: 750 lumens
- Beam Angle: 180°
- Flicker-Free Frequency: Greater than 2 kHz
- Dimmable: Yes
- Fanless: Yes
- Control Methods: Ape Labs remote, smartphone app, CRMX, and Ape Labs CONNECT wireless DMX
- App Compatibility: iOS and Android through Ape Labs CONNECT
- Automatic Signal Repeater: Yes
- Wireless Range: Up to approximately 4,000 ft (1,200 m) through Ape Labs CONNECT
- Radio Frequency: 2.400–2.485 GHz
- Maximum Radio Output: 20 dBm, approximately 100 mW EIRP
- DMX Mode 1: 4-channel, 8-bit RGBWW
- DMX Mode 2: 7-channel Ape Labs mode
- DMX Mode 3: 32-channel, 8-pixel RGBWW mode
- DMX Mode 4: 128-channel, 32-pixel RGBWW mode
- Operating Voltage: 12–18V DC
- Current Consumption: 350 mA at 18V
- Battery: None
- Power Supply: Not included
- Protection Rating: IP65
- Tube Material: Polycarbonate
- End Cap Material: Aluminum
- Mounting Magnets: Two removable neodymium magnets
- Mounting Threads: Five M6 threads on the end caps
- Dimensions: 39.4 x 1.6 in (100 x 4 cm)
- Weight: 2.0 lb (0.9 kg)
- Item Number: 100493
- EAN: 4260482884949
- Country of Manufacture: Germany
What's In The Box
- Ape Labs Neon Pix INS LED tube
- Two removable neodymium mounting magnets
- M6 safety eyelet
Power and Controller Note: This installation version does not include a battery or power supply. A compatible 12–18V DC power source is required. An Ape Labs remote, Ape Labs CONNECT, or compatible CRMX control system is required for wireless operation and is sold separately.
