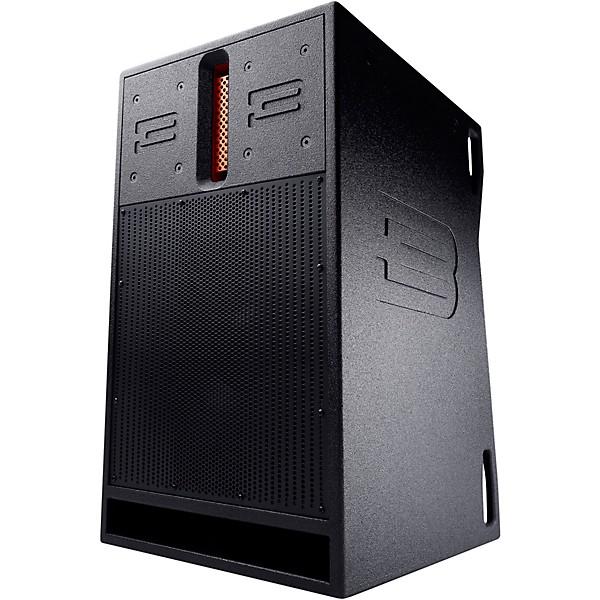

BassBoss DV12-MK3 | 12in - 134dB Peak | 3200W Powered Loudspeaker

Bass Boss DV12 MK3  (BassBoss DV12-MK3 2-way Powered Top)

Powered Loudspeaker

BASSBOSS DV12-MK3 is a compact powered 12" two-way loudspeaker built for mobile professionals and high-output sound reinforcement. With a 3200W bi-amplified Class-D design, advanced DSP processing, and wide horizontal coverage, it is designed for concerts, festivals, DJs, live production, and portable PA systems.

BASSBOSS DV12-MK3 Competitive Differences

• 3200W bi-amplified Class-D power design
• 134 dB peak SPL with 120° x 20° coverage
• Line-array derived 1.4" isophasic waveguide for consistent projection
• 96 kHz DSP with eight onboard presets and LAN preset management
• Braced Baltic birch enclosure with waterproof finish and coated drivers

BASSBOSS DV12-MK3 Description

The BASSBOSS DV12-MK3 is engineered for mobile sound systems that require high output, wide coverage, and compact portability. Its advanced waveguide design delivers consistent high-frequency projection across a broad listening area, making it well suited for small to midsized concerts, festivals, DJ events, and installations.

The speaker combines a 12" neodymium woofer with a 3" compression driver powered by a 3200W Class-D amplifier system. The low-frequency amplifier section provides 2400W RMS while the high-frequency section delivers 800W RMS, producing strong full-range performance with deep bass extension and detailed vocal clarity.

The MK3 platform adds upgraded amplification, 96 kHz DSP processing, expanded preset storage, and network control through etherCON connectivity. The BASSBOSS DV12-MK3 also supports array configurations, allowing multiple cabinets to work together with improved projection and coherent high-frequency summing.

DV12-MK3 Features

• Powered 12" two-way loudspeaker
• 3200W bi-amplified Class-D amplifier system
• 2400W LF amplifier and 800W HF amplifier
• 45 Hz to 19 kHz frequency response
• 134 dB peak SPL and 128 dB continuous SPL
• 12" neodymium woofer with 4" voice coil
• 3" compression driver with 1.4" throat
• 120° horizontal x 20° vertical coverage
• Line-array derived isophasic waveguide
• 96 kHz DSP with user, venue, and voicing presets
• Eight onboard pushbutton presets
• Stores up to 100 presets through LAN control
• ControlBASS software compatibility
• 2 etherCON/RJ45 network ports for Ethernet/Milan AVB support
• Neutrik powerCON True1 waterproof power input
• 35 mm pole socket
• Eight fly points for installation
• Braced Baltic birch enclosure with waterproof finish

DV12-MK3 Specifications

• Speaker Type: Active Loudspeaker
• Configuration: 2-Way
• Enclosure Type: Sealed
• Total Output Power: 3200W
• Amplifier Class: Class-D
• LF Amplifier Power: 2400W RMS
• HF Amplifier Power: 800W RMS
• LF Driver: 1 x 12" woofer
• LF Voice Coil: 4" / 10.2 cm
• LF Magnet: Neodymium
• HF Driver: 1 x 3" horn-loaded compression driver
• HF Throat: 1.4" / 35.6 mm
• Frequency Response: 45 Hz - 19 kHz ±3 dB
• Maximum SPL: 128 dB continuous, 134 dB peak
• Coverage Angle: 120° H x 20° V
• Audio Input: 1 x XLR 3-pin line input
• Audio Thru: 1 x XLR 3-pin line thru
• Network I/O: 2 x etherCON/RJ45
• AC Power Input: 100 - 240 VAC, 50/60 Hz
• AC Power I/O: 1 x powerCON TRUE1 input
• Current Consumption: 4.6A at 120 VAC, 2.3A at 240 VAC
• Mounting: 1 x 1.38" / 35 mm pole socket
• Construction Material: Plywood, polyurethane, steel
• Color: Black
• Dimensions: 24.6 x 19.1 x 14.5 in (62.5 x 48.5 x 36.8 cm)
• Weight: 63 lb (28.6 kg)
• Package Weight: 77.5 lb
• Box Dimensions: 29 x 22.5 x 18 in

What's In The Box

• BASSBOSS DV12-MK3 powered loudspeaker
• Neutrik powerCON True1 power cable
