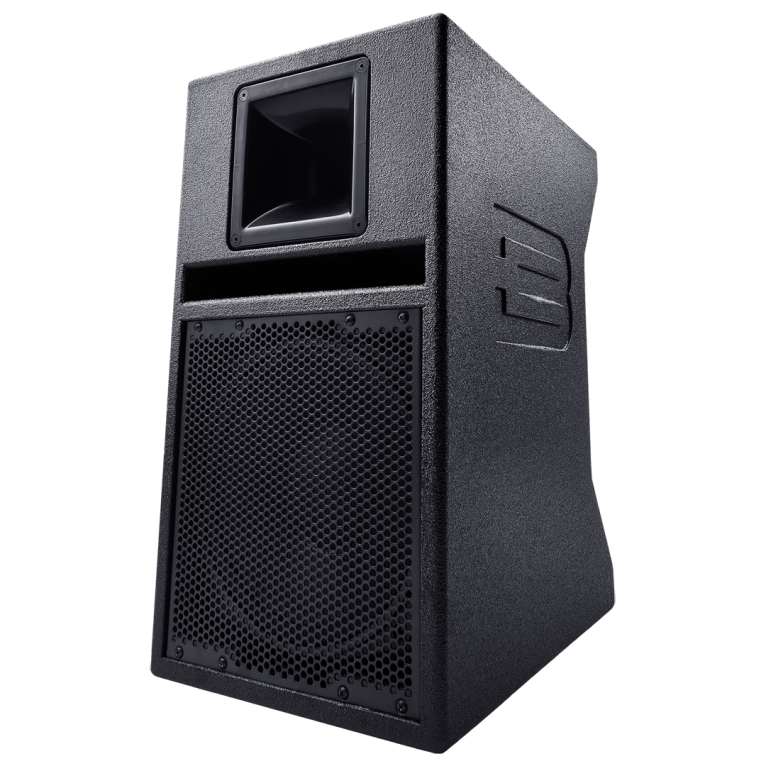

BassBoss SV9-MK3 | 9in - 121dB Peak | Compact Powered Reference Monitor

Bass Boss SV-9 MK3  (BassBoss SV9-MK3)

Powered Loudspeaker

BassBoss SV9-MK3 is a compact powered 9" two-way loudspeaker engineered for studio-reference sound quality with the durability and output required for live use. Featuring a 1200W bi-amplified Class-D design, advanced DSP processing, and portable Baltic birch construction, it is suited for studio monitoring, mobile DJs, live performance, and portable PA applications.

BassBoss SV9-MK3 Competitive Differences

• 1200W bi-amplified Class-D power design
• Compact cabinet with 121 dB peak SPL output
• Studio-reference sound quality with portable live-sound capability
• 90° x 60° rotatable horn coverage for flexible placement
• 96 kHz DSP with eight onboard presets and LAN preset management

BassBoss SV9-MK3 Description

The BassBoss SV9-MK3 combines studio-monitor accuracy with the output and durability needed for professional live applications. Designed for discerning artists, DJs, and engineers, the speaker delivers detailed sound reproduction while remaining compact and easy to transport.

A 9" neodymium woofer with a carbon-fiber cone and 2.5" voice coil is paired with a 1.4" compression driver to produce balanced full-range performance with impressive low-frequency extension. The integrated 1200W Class-D amplifier delivers 900W to the low-frequency section and 300W to the high-frequency section for clean, dynamic output.

The MK3 platform adds upgraded amplification, 96 kHz DSP processing, expanded preset storage, and etherCON network connectivity. The BassBoss SV9-MK3 supports multiple operating presets, allowing it to function as a full-range loudspeaker or integrate seamlessly with BassBoss subwoofers for larger sound systems.

SV9-MK3 Features

• Powered 9" two-way loudspeaker
• 1200W bi-amplified Class-D amplifier system
• 900W LF amplifier and 300W HF amplifier
• 50 Hz to 19 kHz frequency response
• 121 dB peak SPL and 118 dB continuous SPL
• 9" neodymium woofer with carbon-fiber cone
• 1.4" compression driver with 1" throat
• 90° x 60° rotatable horn coverage
• 96 kHz DSP with user, venue, and voicing presets
• Eight onboard pushbutton presets
• Stores up to 100 presets through LAN control
• ControlBASS software compatibility
• 2 etherCON/RJ45 network ports for Ethernet/Milan AVB support
• Neutrik powerCON True1 waterproof power input
• 35 mm pole socket
• Integrated handles for transport
• Braced Baltic birch enclosure with waterproof finish

SV9-MK3 Specifications

• Speaker Type: Active Loudspeaker
• Configuration: 2-Way
• Enclosure Type: Bass-Reflex
• Total Output Power: 1200W RMS
• Amplifier Class: Class-D
• LF Amplifier Power: 900W RMS
• HF Amplifier Power: 300W RMS
• LF Driver: 1 x 9" woofer
• LF Voice Coil: 2.5" / 6.3 cm
• LF Magnet: Neodymium
• HF Driver: 1 x 1.4" horn-loaded compression driver
• HF Throat: 1" / 25.4 mm
• Frequency Response: 50 Hz - 19 kHz ±3 dB
• Maximum SPL: 118 dB continuous, 121 dB peak
• Coverage Angle: 90° H x 60° V
• Audio Input: 1 x XLR 3-pin line input
• Audio Thru: 1 x XLR 3-pin line thru
• Network I/O: 2 x etherCON/RJ45
• AC Power Input: 100 - 240 VAC, 50/60 Hz
• AC Power I/O: 1 x powerCON TRUE1 input
• Current Consumption: 1.4A at 120 VAC, 0.7A at 240 VAC
• Mounting: 1 x 1.38" / 35 mm pole socket
• Handles: Yes
• Construction Material: Plywood, polyurethane, steel
• Color: Black
• Dimensions: 10 x 18 x 15 in (25.4 x 45.7 x 38.1 cm)
• Weight: 27.5 lb (12.5 kg)
• Package Weight: 33.6 lb
• Box Dimensions: 21 x 17.8 x 13 in

What's In The Box

• BassBoss SV9-MK3 powered loudspeaker
• Neutrik powerCON True1 power cable
