Blizzard Lighting DMXPC-25 | 25ft 3-Pin DMX + Power Cable | powerCON Compatible

Blizzard Lighting 124036  (Blizzard Lighting 3-Pin DMX + powerCON)

25ft DMX and Power Combo Cable

The Blizzard Lighting DMXPC-25 is a 25-foot combination cable designed to carry DMX control signals and power through a single cable assembly. Featuring 3-pin XLR connectors and powerCON-compatible power connections, it helps simplify cable routing and reduce clutter in indoor stage lighting installations and event setups.

Blizzard Lighting DMXPC-25 Competitive Differences

• Combined DMX and power cable design reduces the need to run separate cables for lighting fixtures.
• 25-foot (7.62 m) cable provides flexible routing between compatible equipment.
• 120-ohm DMX cable with low capacitance and double foil-and-braid shielding supports reliable DMX512 signal transmission.
• Heavy-duty 14 AWG, 3-conductor power cable supports up to 15 amps.
• Flexible black PVC outer jacket with heat shrink keeps power and signal cables together.
• Includes secure hook-and-loop cable straps for convenient organization and storage.

Blizzard Lighting DMXPC-25 Description

The Blizzard Lighting DMXPC-25 is part of the Cool Cable DMXPC series, designed to simplify power and DMX signal connections for compatible stage lighting equipment. By combining two cable runs into a single assembly, it helps maintain cleaner installations and more manageable cable layouts.

The integrated 3-pin DMX cable features male and female XLR connectors, 120-ohm impedance, low capacitance, and double shielding with foil and braid. This data-specific construction meets USITT DMX512 cable standards and supports dependable control signal transmission between compatible lighting devices.

For power distribution, the cable incorporates a heavy-duty 14 AWG, three-conductor cord with powerCON-compatible input and output connectors. Rated for a maximum of 15 amps, the power section uses UL-recognized components for reliable equipment connections.

Both cables are enclosed in a flexible black PVC jacket with heat shrink, making the assembly convenient to route, coil, transport, and store. The 25-foot length is suited to indoor lighting rigs, mobile DJ setups, stage productions, and other applications where DMX control and compatible power connections are needed together.

DMXPC-25 Features

• Combination power and DMX signal cable
• 25ft (7.62 m) cable length

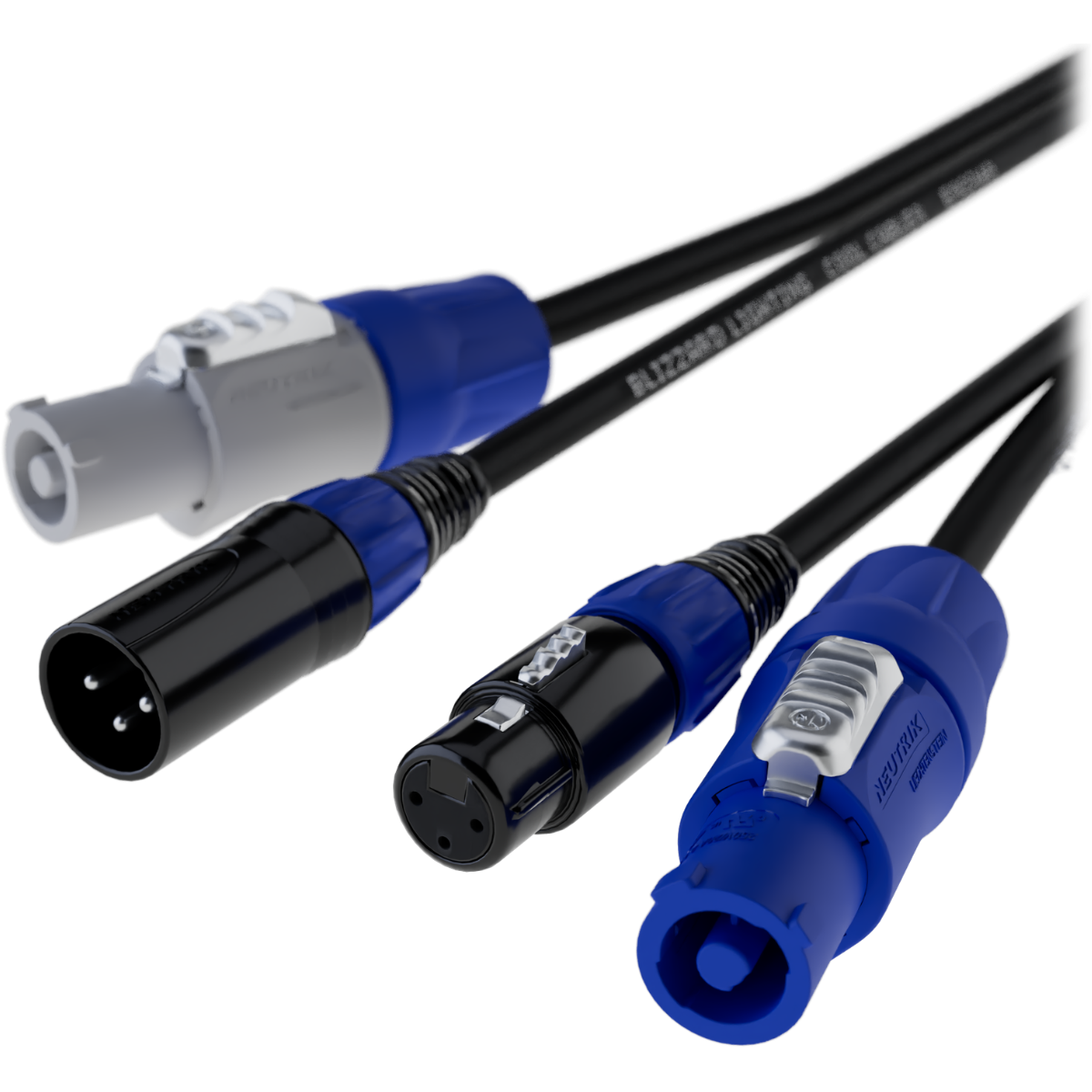

• 3-pin male-to-female XLR DMX connectors
• powerCON-compatible power input and output connectors
• Double-shielded DMX wiring with foil and braid
• Low-capacitance, 120-ohm DMX cable design
• Heavy-duty 14 AWG power cable
• Three-conductor power wiring
• Flexible black PVC jacket with heat shrink
• Secure hook-and-loop cable straps included
• Designed for indoor stage lighting applications

DMXPC-25 Specifications

• Brand: Blizzard Lighting
• Model: DMXPC-25
• Product Type: DMX and power combo cable
• Cable Length: 25ft (7.62 m)
• DMX Connectors: 3-pin XLR male to female
• DMX Impedance: 120 ohms
• DMX Shielding: Double shielded (foil and braid)
• DMX Cable Capacitance: Low capacitance
• Power Connectors: powerCON-compatible input and output
• Power Cable Gauge: 14 AWG
• Power Conductors: 3
• Maximum Current: 15A
• Power Cable Components: UL recognized
• Outer Jacket: Flexible black PVC with heat shrink
• Weight: 4.43 lb (2.01 kg)
• Single Pack Dimensions: 10 x 10 x 3 in (254 x 254 x 76.2 mm)
• Single Pack Weight: 4.43 lb (2.01 kg)
• Manufacturer SKU: 124036

What's In The Box

• Blizzard Lighting DMXPC-25 25ft DMX and power combo cable
• Hook-and-loop cable straps
