Carvin Audio TRC200A | 2000W - 131dB | Column Array System with Sub & Carrying Bag

Carvin TRC200A  (Carvin TRC-200-A)

Active Column Array System with Subwoofer

Carvin Audio TRC200A is a professional 2000W active column array system engineered for high-output live sound reinforcement. Combining the TRx3118A 18” powered subwoofer with a dual TRx3900F column array, the system delivers deep 37Hz bass extension, controlled 120° horizontal coverage, and focused 10° vertical dispersion for consistent projection and reduced front-row harshness.

Carvin Audio TRC200A Competitive Differences

• 2000W Class D powered sub with expandable modular column array design
• Includes carrying bag for column array loudspeakers

Carvin Audio TRC200A Description

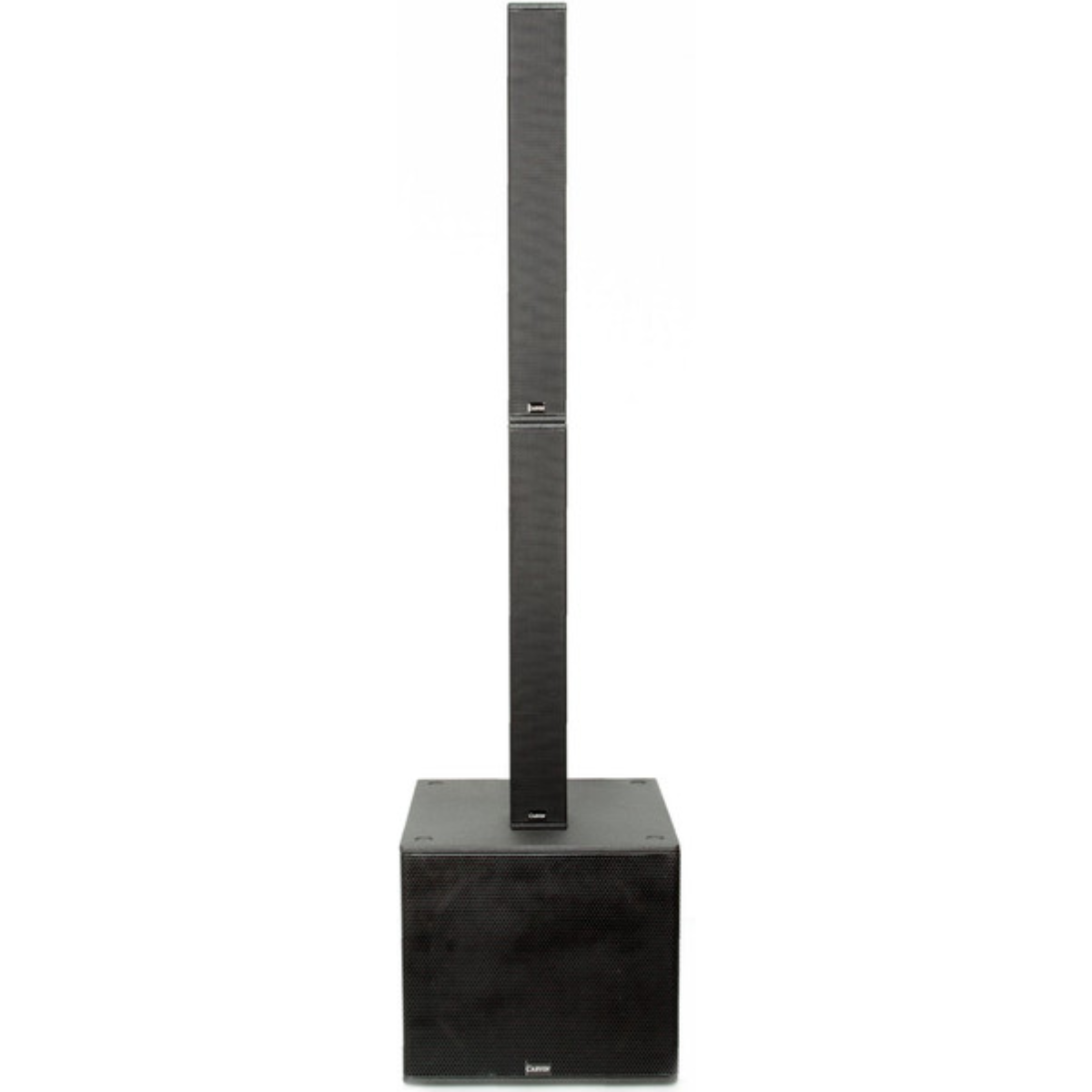

The Carvin Audio TRC200A is built for professionals who demand clarity, headroom, and scalability. The system pairs a TRx3118A 18” active bass reflex subwoofer with a dual TRx3900F passive column array configuration, creating a full-range solution capable of delivering up to 131dB SPL. With system response from 37Hz to 18kHz, it provides powerful low-end foundation and detailed high-frequency articulation.

The column array utilizes nine 3.5” drivers per column with Constant Delivery Dispersion (CDD™) technology, maintaining consistent 120° horizontal coverage and tightly controlled 10° vertical dispersion. This design minimizes ceiling and floor reflections while maintaining even sound distribution across the audience area—ideal for venues requiring clarity without excessive stage volume.

The TRx3118A subwoofer features integrated DSP processing powered by Analog Devices™, with selectable presets for Live, Playback, Speech, and Sub Only modes. Built from premium multi-ply hardwood and finished in durable DuraTec™ polyurethane coating, both sub and column enclosures are designed for tour-ready reliability and moisture resistance.

Designed as the foundation of the TRC modular performance ecosystem, the TRC200A can be expanded for larger venues and scalable configurations. Whether used by live bands, mobile DJs, corporate AV teams, or houses of worship, the system delivers controlled coverage, clean aesthetics, and dependable performance.

TRC200A Features

• 2000W Class D amplification
• 131dB maximum SPL
• System frequency response: 37Hz – 18kHz
• 120° horizontal coverage
• 10° vertical dispersion
• Expandable modular system design
• DSP processing by Analog Devices™
• Premium multi-ply hardwood enclosures
• DuraTec™ water-resistant finish
• Tour-ready construction

TRx3118A Subwoofer Specifications

• System Type: 18” Active Bass Reflex Subwoofer
• Frequency Response: 37Hz – 200Hz
• Power: 2000W Program (1000W Sub / 1000W HF Output)
• DSP Modes: Live, Playback, Speech, Sub Only
• Maximum SPL: 131dB
• LF Driver: TS18C-4 18” Woofer, 4Ω, 4” Voice Coil
• HF Satellite Output: 4Ω
• AC Input: 115V–230V, 50–60Hz
• Dimensions: 23.6”W x 23”D x 21.2”H
• Weight: 75 lbs (34 kg)

TRx3900F Column Array Specifications

• System Design: Passive Column Array
• Drivers: 9 x 3.5” (Model PS3.5-8)
• Frequency Response: 110Hz – 18kHz
• Power Handling: 200W Continuous / 800W Peak
• Maximum SPL: 126dB Continuous / 129dB Peak
• Impedance: 8Ω
• Dispersion: 120° Horizontal / 10° Vertical
• Dimensions: 5”W x 5.5”D x 35”H
• Weight: 23 lbs (each)

What's In The Box

• 1 TRx3118A 2000W Powered Subwoofer
• 1 TRx3900F Column Array Loudspeaker Pair
• 1 SS7 Connecting Pole Set
• 2 Twist Lock 12ga Speaker Cables
• 1 CB3900L Carrying Bag for Column Array Loudspeakers
