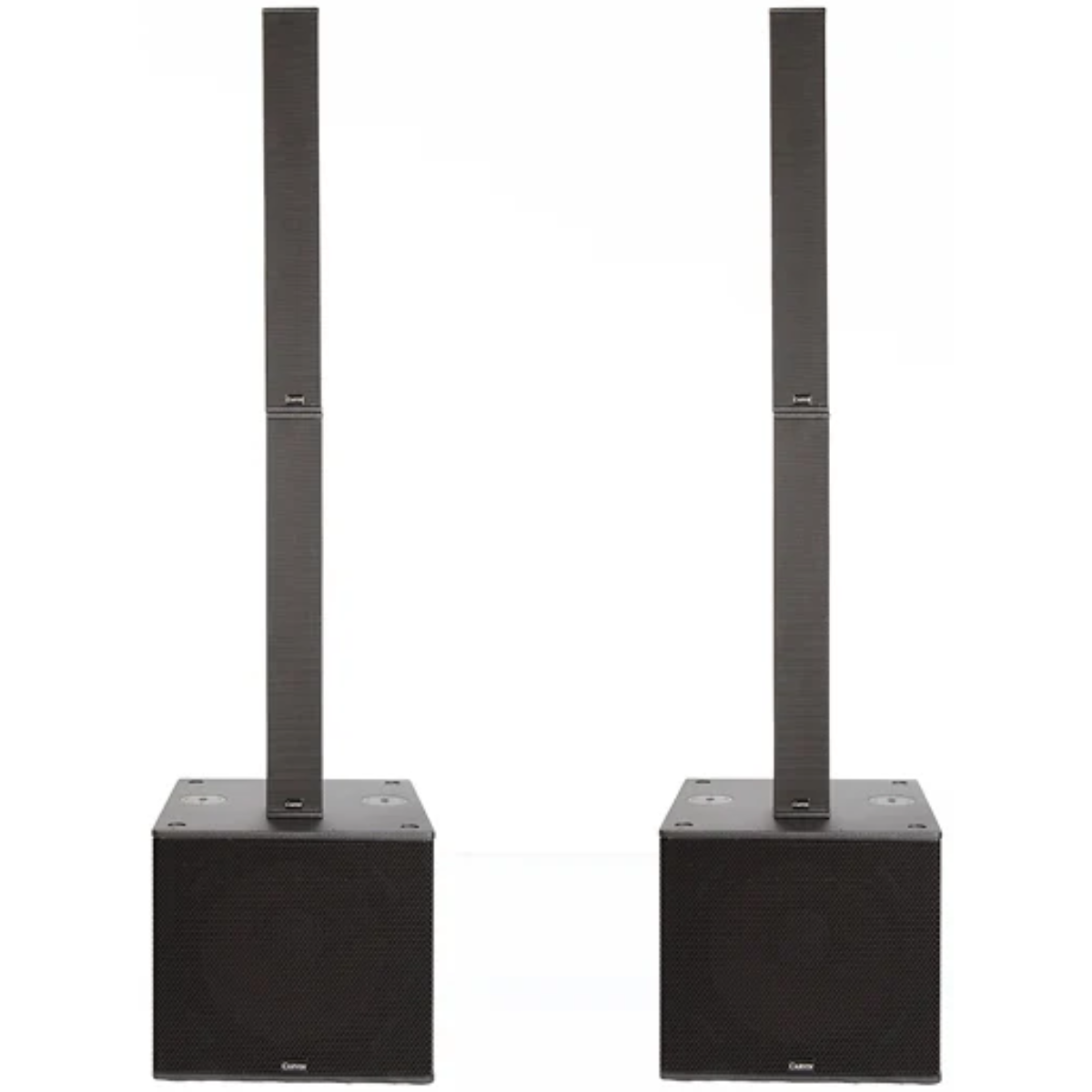

Carvin Audio TRC400A | 4000W - 131dB | Dual Column Array System with Subs & Carrying Bags

Carvin TRC400A  (Carvin TRC-400-A)

Dual Sub Active Column Array System

Carvin Audio TRC400A is a 4000W active column array system designed for increased headroom, expanded low-frequency authority, and true long-throw performance. Built around a dual-sub, dual-column architecture, it delivers powerful 37Hz bass extension, controlled 120° horizontal coverage, and focused 10° vertical dispersion for consistent projection in larger rooms and outdoor events.

Carvin Audio TRC400A Competitive Differences

• Dual 18" powered subwoofers with 4000W total Class D amplification
• Includes two CB3900L carrying bags for protected column transport

Carvin Audio TRC400A Description

The Carvin Audio TRC400A expands the TRC modular platform with greater output capability and extended projection. The system includes two TRx3118A 2000W powered subwoofers and two pairs of TRx3900F passive column arrays, creating a scalable solution capable of reaching 131dB maximum SPL while maintaining clarity and controlled dispersion.

Each TRx3118A subwoofer features an 18” high-excursion TS18C woofer with a 4” voice coil and integrated Class D amplification (1000W internal sub + 1000W HF satellite output). Built-in Analog Devices™ 56-bit DSP provides optimized presets for Live, Playback, Speech, and Sub Only modes. The 37Hz–200Hz response ensures deep, controlled bass for full-scale live performance and high-energy events.

The TRx3900F column arrays utilize nine 3.5” transducers per column with 120° horizontal coverage and controlled 10° vertical dispersion. This focused vertical pattern minimizes reflections and feedback while maintaining intelligibility across large audience areas. When ground stacked, the dual-column configuration creates an extended acoustic aperture capable of projecting well over 400 feet, depending on environmental conditions.

Constructed from premium multi-ply hardwood and finished in DuraTec™ polyurethane coating, the system is built for touring durability and moisture resistance. The included CB3900L carrying bags provide padded protection for the column arrays during transport, ensuring long-term reliability and professional presentation.

TRC400A Features

• 4000W total Class D amplification
• 131dB maximum SPL
• System frequency response: 37Hz – 18kHz
• Dual 18" powered subwoofers
• 120° horizontal coverage
• 10° controlled vertical dispersion
• Expandable modular TRC platform
• Analog Devices™ DSP processing
• Premium multi-ply hardwood enclosures
• DuraTec™ water-resistant finish
• Includes CB3900L carrying bags

TRx3118A Subwoofer Specifications

• System Type: 18” Active Bass Reflex Subwoofer
• Frequency Response: 37Hz – 200Hz
• Amplification: 2000W Program (1000W Sub / 1000W HF Output)
• Maximum SPL: 131dB
• LF Driver: TS18C 18” Woofer, 4” Voice Coil
• DSP Presets: Live, Playback, Speech, Sub Only
• AC Input: 115V–230V, 50–60Hz
• Dimensions: 23.6”W x 23”D x 21.2”H
• Weight: 75 lbs (34 kg) each

TRx3900F Column Array Specifications

• System Design: Passive Column Array
• Drivers: 9 x 3.5” per column
• Frequency Response: 110Hz – 18kHz
• Maximum SPL: 126dB Continuous / 129dB Peak
• Impedance: 8Ω
• Dispersion: 120° Horizontal / 10° Vertical
• Dimensions: 5”W x 5.5”D x 35”H
• Weight: 23 lbs per column

What's In The Box

• 2 TRx3118A 2000W Powered Subwoofers
• 2 TRx3900F Column Array Loudspeaker Pairs
• 2 SS7 Connecting Pole Sets
• 4 Twist Lock 12ga Speaker Cables
• 2 CB3900L Carrying Bags for Column Array Loudspeakers
