Carvin Audio TRC600A | 8000W - 131dB | Flagship Column Array System with Subs & Carrying Bags

Carvin TRC600A  (Carvin TRC-600-A)

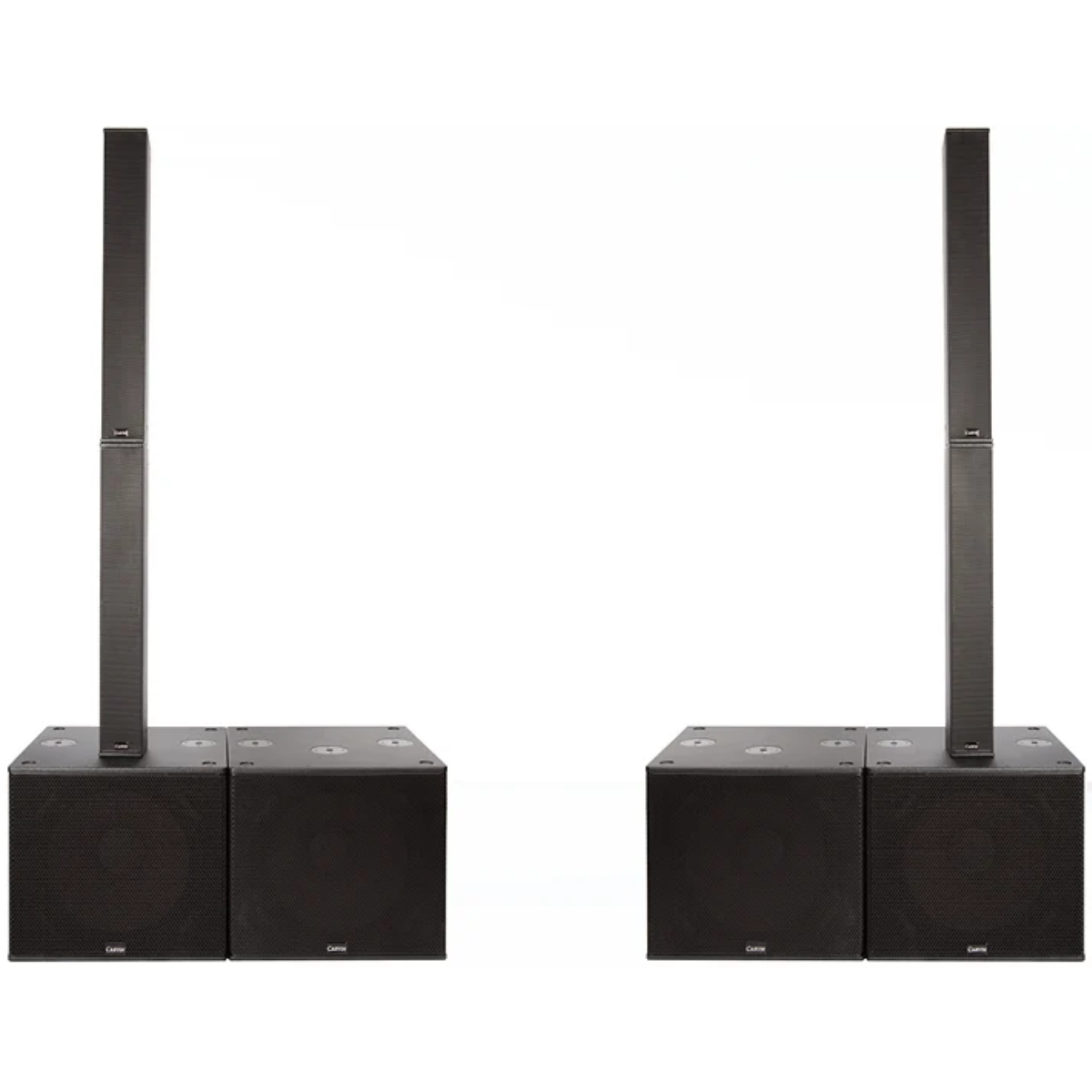

Flagship Active Column Array System with Dual Column Pairs

Carvin Audio TRC600A represents the highest tier of the TRC platform, delivering 8000 watts of total Class D power, commanding low-frequency authority, and extended long-throw projection for large venues and outdoor productions. Built on a multi-sub, multi-column architecture, this system is engineered for professional crews who require uncompromising output, precise coverage, and consistent performance event after event.

Carvin Audio TRC600A Competitive Differences

• 8000W total system power with four 18" powered subwoofers
• Includes CB3900L carrying bags for protected column transport

Carvin Audio TRC600A Description

The Carvin Audio TRC600A is built for large-scale sound reinforcement where maximum headroom and projection are essential. The system includes four TRx3118A 2000W powered subwoofers and two pairs of TRx3900F column arrays, creating a scalable solution capable of delivering deep 37Hz bass extension and controlled, articulate highs up to 18kHz.

Each TRx3118A features an 18” high-excursion TS18C woofer with a 4” voice coil and integrated 2000W Class D amplification (1000W internal sub / 1000W HF satellite output). Powered by an Analog Devices™ 56-bit DSP processor, the subwoofer provides optimized presets for Live, Playback, Speech, and Sub Only applications while achieving up to 131dB maximum SPL per unit.

The TRx3900F column arrays utilize nine 3.5” drivers per column with 120° horizontal dispersion and tightly controlled 10° vertical dispersion. This focused pattern reduces ceiling and floor reflections, minimizes feedback, and maintains vocal clarity at high output levels. When stacked, the extended column height creates a large acoustic aperture capable of projecting well over 400 feet depending on environmental conditions.

Constructed from premium multi-ply hardwood with durable DuraTec™ polyurethane finish, the TRC600A is designed for professional touring and installation environments. The included CB3900L carrying bags provide padded protection for the column arrays during transport, preserving cabinet integrity and finish quality.

TRC600A Features

• 8000W total Class D amplification
• 37Hz – 18kHz system response
• 131dB maximum SPL (per subwoofer)
• Four 18" high-output powered subwoofers
• 120° horizontal coverage
• Controlled 10° vertical dispersion
• Analog Devices™ DSP processing
• Expandable modular TRC platform
• Premium multi-ply hardwood enclosures
• DuraTec™ water-resistant finish
• Includes CB3900L carrying bags

TRx3118A Subwoofer Specifications

• System Type: 18” Active Bass Reflex Subwoofer
• Frequency Response: 37Hz – 200Hz
• Amplification: 2000W Program (1000W Sub / 1000W HF Output)
• Maximum SPL: 131dB
• LF Driver: TS18C 18” Woofer, 4” Voice Coil
• DSP Presets: Live, Playback, Speech, Sub Only
• AC Input: 115V–230V, 50–60Hz
• Weight: 75 lbs (34 kg) each

TRx3900F Column Array Specifications

• System Design: Passive Column Array
• Drivers: 9 x 3.5” per column
• Frequency Response: 110Hz – 18kHz
• Maximum SPL: 126dB Continuous / 129dB Peak
• Impedance: 8Ω
• Dispersion: 120° Horizontal / 10° Vertical
• Weight: 23 lbs per column

What's In The Box

• 4 TRx3118A 2000W Powered Subwoofers
• 2 TRx3900F Column Array Loudspeaker Pairs
• 2 SS7 Connecting Pole Sets
• 4 Twist Lock 12ga Speaker Cables
• 2 CB3900L Carrying Bags for Column Array Loudspeakers
