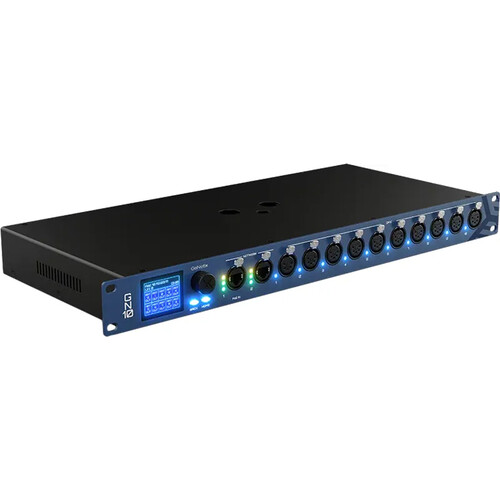

ChamSys GeNetix GN10 | 10-Port DMX Node with LTC, MIDI & PoE | USB & Network Unlock for MagicQ

CHAMSYS GENETIXGN10  (ChamSys GeNetix GN10 Node)

10-Port DMX Node with LTC, MIDI & 10Scene Support

ChamSys GeNetix GN10 is a high-capacity, rack-mountable DMX distribution node with 10 configurable RDM-capable DMX ports, built for flexible data routing over Ethernet or USB. Designed for integration with ChamSys MagicQ systems, it supports advanced control protocols including Art-Net, sACN, and ChamNet, and features built-in timecode and MIDI capabilities.

ChamSys GeNetix GN10 Competitive Differences

• 10 configurable DMX ports with input/output and RDM support
• Full MagicQ PC unlock via USB or dual-network connection

ChamSys GeNetix GN10 Description

The ChamSys GeNetix GN10 is a powerful solution for remote lighting data distribution across large-scale productions, permanent installations, and touring systems. It features 10 DMX ports that can be independently configured as input or output, all with RDM support, making it highly adaptable to complex lighting network needs. With dual network ports and support for PoE or mains power via powerCON TRUE1, the GN10 is engineered for redundancy and reliability. Onboard LTC and MIDI ports allow precise timecode synchronization and MIDI communication over Ethernet, making it ideal for show-critical applications involving remote media control, timecoded events, and cue recall. When connected via USB, the GN10 fully unlocks ChamSys MagicQ PC software, providing complete functionality on Mac, Linux, or Windows. Used over network, it can unlock up to two MagicQ instances, offering scalable expansion for lighting control systems. The GN10 can be configured locally via its onboard display and encoder, or remotely using its integrated web server. Mounting options include M12 rigging, DIN rail installation, or optional rack ears for 19” rack mounting, making the GN10 ready for any professional environment.

Model Features

• 10 DMX ports with RDM support, configurable as input or output
• Supports Art-Net, sACN, and ChamNet protocols
• LTC and MIDI timecode and notes over Ethernet
• USB connection enables full MagicQ software unlock
• Network unlock for up to 2 MagicQ instances
• Dual network ports with PoE on Port 1
• Web-based and onboard configuration with display
• Configurable DMX timings and DMX redundancy support
• Mount via M12 receiver, optional rack ears, or DIN rail

Model Specifications

• DMX Ports: 10x 5-pin XLR (RDM capable, configurable I/O)
• Network Ports: 2 (PoE support)
• LTC & MIDI Ports: Yes (via Ethernet and physical I/O)
• Protocols Supported: Art-Net, sACN, ChamNet
• Power Input: Neutrik powerCON TRUE1 (AC 110–240V)
• Dimensions: 18.9 x 8.6 x 1.8 in (48.0 x 21.8 x 4.5 cm)
• Weight: 6.06 lb (2.75 kg)
• PoE Support: Yes (Port 1)

What's In The Box

• ChamSys GeNetix GN10 Node
• Neutrik powerCON TRUE1 Power Cable
