Chauvet DJ GigBar3 ILS
(Chauvet DJ GIGBAR3ILS)
3-in-1 LED DJ Lighting System

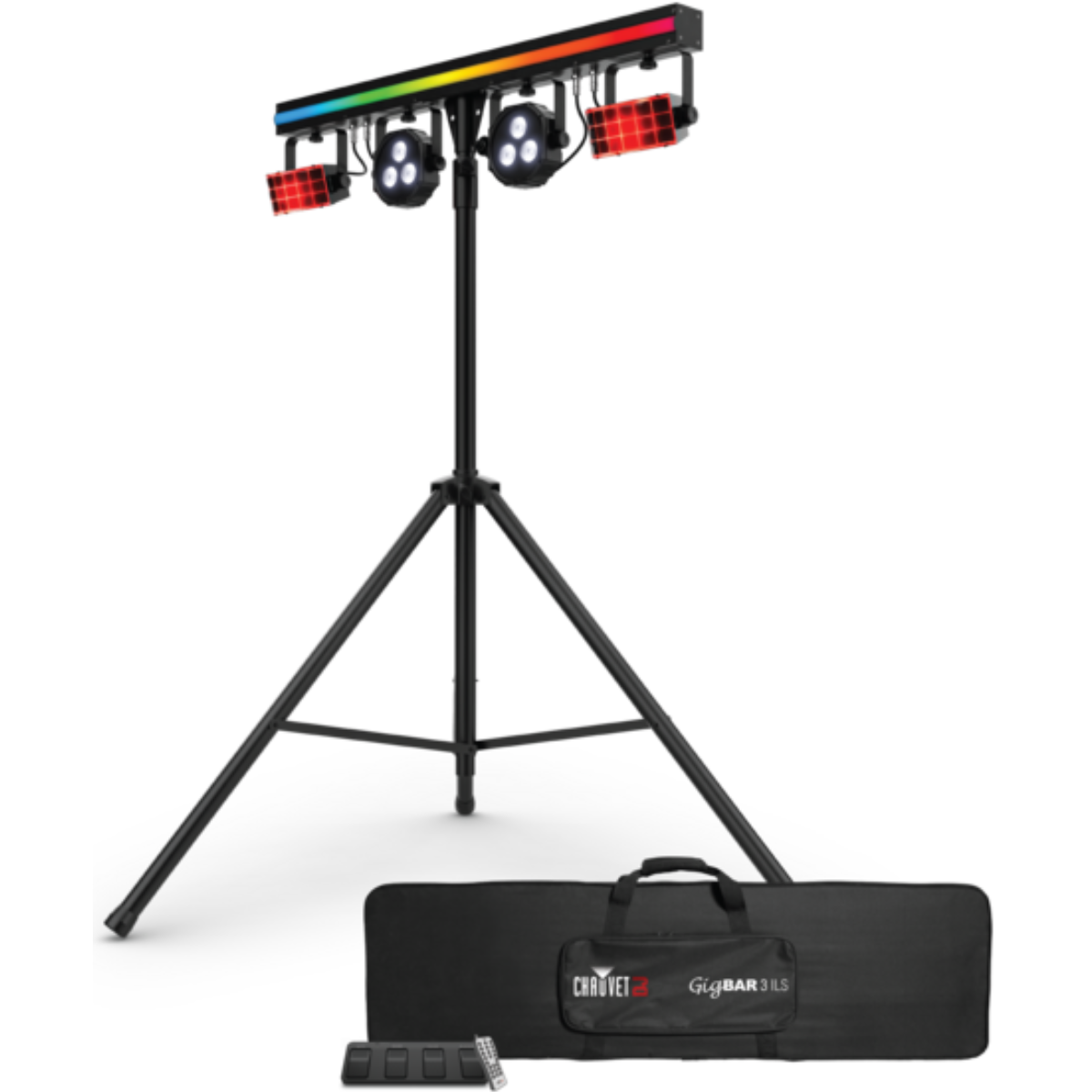

The Chauvet DJ GigBAR 3 ILS is a portable 3-in-1 LED lighting system designed for mobile DJs, entertainers, parties, and live events. Combining two LED derby effects, two RGB+UV LED par lights, and an integrated multicolor LED strip on a single bar, it delivers colorful wash lighting, dynamic chasing beams, and eye-catching visual effects. Built-in Instant Light Show (ILS) compatibility, wireless D-Fi connectivity, sound-activated programs, and multiple control options make it easy to create coordinated lighting shows. Complete with an adjustable tripod, wireless footswitch, RF remote, and carrying bags, the GigBAR 3 ILS provides a convenient all-in-one lighting solution for fast setup and transportation.
Chauvet DJ GigBAR 3 ILS Competitive Differences
- 3-in-1 Lighting System: Combines two LED derby effects, two RGB+UV LED par lights, and a multicolor LED strip on one bar for wash lighting, moving beam effects, and colorful visual patterns.
- Instant Light Show (ILS) Compatibility: Works within the Chauvet DJ ILS ecosystem to create synchronized lighting shows across multiple compatible fixtures.
- Built-In Wireless D-Fi Transceiver: Supports wireless DMX and ILS communication, reducing the need for additional control cabling between compatible lighting fixtures.
- Integrated 74-LED Strip: Produces colorful red, green, and blue effects with a wide 174-degree coverage angle for dynamic visual displays.
- RGB+UV LED Par Lights: Two integrated par fixtures provide colorful wash lighting with ultraviolet capability and a 13-degree beam angle.
- Dual LED Derby Effects: Two derby fixtures project multicolored chasing beams with a 114-degree coverage angle for dance floors and entertainment spaces.
- Expandable Lighting Setup: Supports mounting up to four additional compatible lighting fixtures on top of the bar for customized mobile lighting configurations.
- Multiple Control Options: Operates through the full-color LCD display, included RF remote, wireless footswitch, sound-activated programs, or DMX control.
- Flexible DMX Control: Offers 2, 21, and 132-channel DMX modes to accommodate simple operation or detailed lighting programming.
- Complete Portable Lighting Kit: Includes an adjustable tripod, wireless footswitch, RF remote, power cord, and carrying bags for convenient setup, operation, and transport.
Chauvet DJ GigBAR 3 ILS Description
The Chauvet DJ GigBAR 3 ILS combines three types of LED lighting effects into one integrated system, providing a practical solution for DJs and entertainers who need versatile lighting without assembling multiple individual fixtures. Two RGB+UV par lights deliver colorful stage and dance floor washes, while two LED derby fixtures project dynamic multicolored chasing beams. An integrated 74-LED RGB strip adds visual movement and colorful effects across the lighting bar. Together, these effects create complete lighting presentations suitable for weddings, parties, mobile DJ performances, and entertainment venues.
Built-in Instant Light Show technology allows the GigBAR 3 ILS to synchronize with other compatible fixtures in the Chauvet DJ ILS ecosystem. Its integrated D-Fi transceiver supports wireless DMX and ILS communication, simplifying the creation of coordinated lighting shows while reducing signal cable requirements. Up to four additional compatible fixtures can be mounted on top of the bar to expand the lighting system. The reversible tripod bracket also allows upside-down mounting for installations requiring different fixture orientations.
The GigBAR 3 ILS provides several control methods to suit different performance environments. Automated and sound-activated programs combine all three lighting effects into coordinated shows without requiring complicated programming. The included wireless footswitch enables hands-free operation during DJ performances, while the RF remote provides convenient control from a distance. For more advanced applications, 3-pin XLR DMX connections and selectable 2, 21, or 132-channel modes allow integration with compatible lighting controllers. A full-color LCD display provides direct access to settings and operating functions.
Designed for portability and quick setup, the GigBAR 3 ILS includes an adjustable tripod with a height range of 4.8 to 7.8 feet. The lighting bar features a compact integrated design, and the included carrying bags help simplify transportation and storage. A 100-240V auto-ranging power supply supports operation in different regions, while power linking allows multiple compatible units to share AC power connections. The system consumes approximately 47W at 120V, making it a practical lighting solution for mobile entertainment applications.
With its combination of colorful wash lighting, derby beam effects, an integrated LED strip, wireless synchronization, and flexible control options, the GigBAR 3 ILS is well suited for mobile DJs, event production companies, party entertainers, and small performance venues. Its included tripod, wireless controls, and portable accessories provide a complete lighting package that can be deployed quickly for a wide range of events.
GigBAR 3 ILS Features
- Portable 3-in-1 LED lighting system with integrated derby, par, and LED strip effects
- Two LED derby fixtures for multicolored chasing beam effects
- Two RGB+UV LED par fixtures for colorful wash lighting
- Integrated 74-LED RGB strip for dynamic visual effects
- Instant Light Show (ILS) compatibility for synchronized lighting with compatible fixtures
- Built-in D-Fi wireless transceiver for DMX and ILS communication
- Supports mounting up to four additional compatible fixtures on the lighting bar
- Reversible tripod bracket allows standard or upside-down mounting
- Built-in automated lighting programs combining all three lighting effects
- Sound-activated programs respond to music for synchronized lighting presentations
- Full-color LCD display for convenient menu navigation and configuration
- Included RF remote for wireless lighting control
- Included wireless footswitch for hands-free operation
- DMX control through 3-pin XLR input and output connections
- Selectable 2, 21, and 132-channel DMX operating modes
- Adjustable strobe effects from 0 to 20Hz
- RGB+UV par lights with a 13-degree beam angle and 24-degree field angle
- LED derby effects with a 114-degree coverage angle
- Integrated LED strip with a 174-degree coverage angle
- Built-in power linking for connecting multiple compatible lighting units
- Universal 100-240V AC auto-ranging power supply
- Adjustable tripod with a height range of 4.8 to 7.8 feet
- Compact integrated lighting bar designed for portable entertainment setups
- Included carrying bags for convenient transport and storage
- Included Stealth filter accessory
- Compatible with optional ILS Command controller
- Suitable for mobile DJs, weddings, parties, small venues, and live entertainment events
GigBAR 3 ILS Specifications
- Product Type: 3-in-1 LED DJ Lighting System
- Lighting Effects: 2 LED Derbies, 2 LED Pars, 1 LED Strip
- Control Protocols: DMX512, ILS, D-Fi
- DMX Channels: 2, 21, or 132
- DMX Connectors: 3-Pin XLR Input and Output
- Control Modes: DMX, ILS, Automatic, Sound-Activated, RF Remote, Wireless Footswitch
- Wireless D-Fi Operating Frequency: 2.412-2.484GHz
- Strobe Rate: 0-20Hz
- Display: Full-Color LCD
- Expandable Fixture Mounting: Up to 4 Additional Compatible Fixtures
- Par Light Source: 6 Quad-Color RGB+UV LEDs, 3.7W
- Par LED Life Expectancy: 50,000 Hours
- Par Beam Angle: 13 Degrees
- Par Field Angle: 24 Degrees
- LED Strip Light Source: 74 RGB LEDs, 5W
- LED Strip Colors: Red, Green, Blue
- LED Strip Life Expectancy: 50,000 Hours
- LED Strip Coverage Angle: 174 Degrees
- Derby Light Source: 6 LEDs (2 Red, 2 Green, 2 Blue), 3W
- Derby LED Life Expectancy: 50,000 Hours
- Derby Coverage Angle: 114 Degrees
- Input Voltage: 100-240V AC, 50/60Hz (Auto-Ranging)
- Power Consumption at 120V: 47W, 0.7A (60Hz)
- Power Consumption at 230V: 45W, 0.4A (50Hz)
- Power Linking at 120V: Up to 11 Units
- Power Linking at 230V: Up to 18 Units
- Power Cable Length: 9 ft (2.844 m)
- Tripod Stand Height: 4.8-7.8 ft (1.5-2.4 m)
- Tripod Leg Width: 3.9 ft (1.2 m)
- Compatible Tripod Tube Diameter: 1.5 in (37.4 mm)
- Footswitch Operating Frequency: 433MHz
- Footswitch Maximum Unobstructed Range: 100 ft (30.5 m)
- Footswitch Battery Specification: 9V, 300mA
- Optional Controller: Chauvet DJ ILS Command
- Approvals: CE, RoHS, FCC
- Dimensions (L x W x H): 41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
- Weight: 13.2 lb (6 kg)
What's In The Box
- Chauvet DJ GigBAR 3 ILS Lighting System
- Adjustable Tripod Stand
- Wireless Footswitch
- RF Remote Control
- Power Cord
- Stealth Filter
- Lighting System Carrying Bag
- Tripod Carrying Bag
- User Manual / Quick Reference Guide
