Chauvet DJ Intimidator Trio XD | Beam, Wash & Effect Moving Head | Wireless D-Fi and Motorized Zoom

ChauvetDJ INTIMTRIOXD  (Chauvet DJ Intimidator Trio XD)

LED Moving Head Fixture

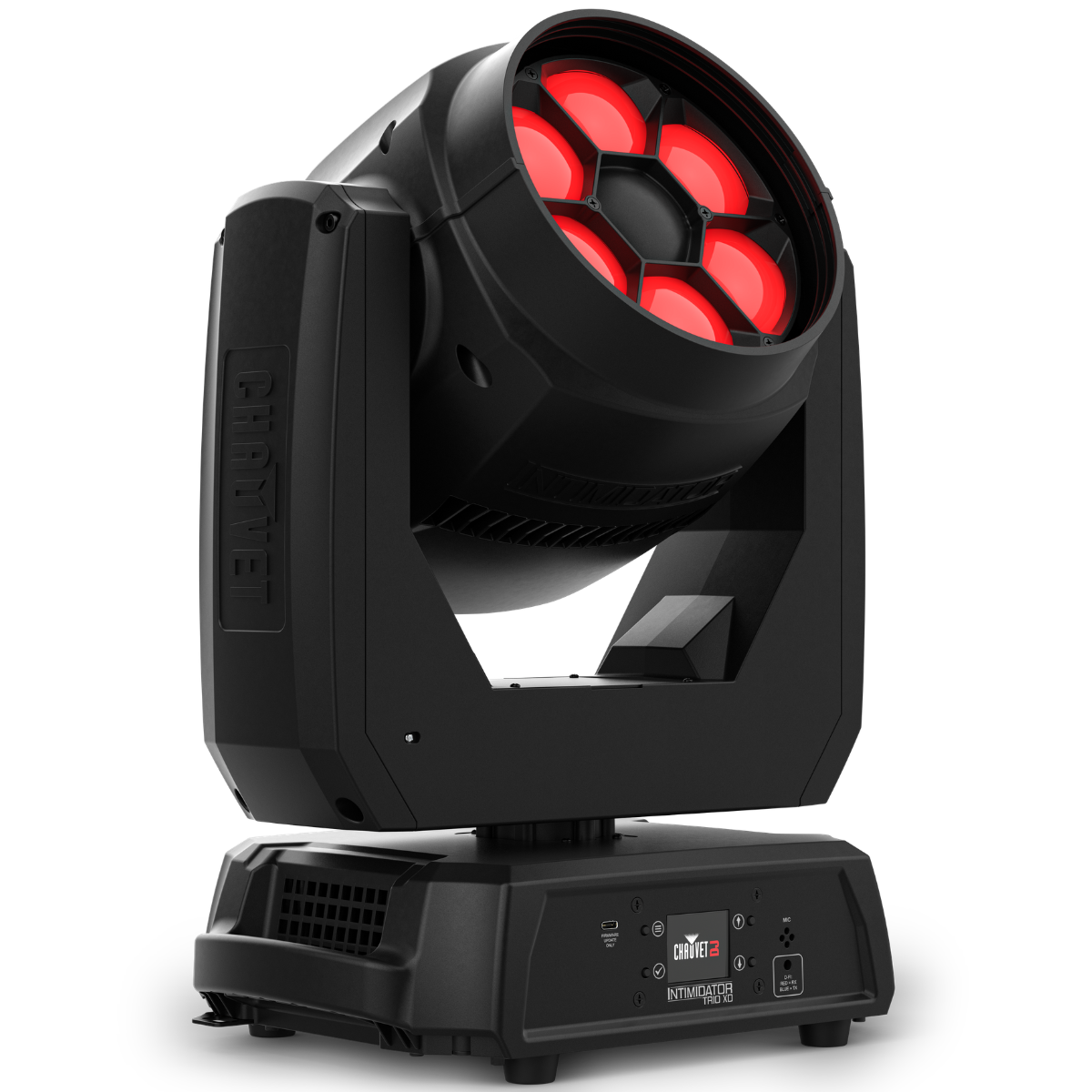

The Chauvet DJ Intimidator Trio XD combines beam, wash, and effect-light capabilities in a single LED-powered moving head. Its motorized zoom changes the output from a focused 3° beam to a broad 22° wash, while a continuously rotating honeycomb creates energetic aerial and dance-floor effects.

Chauvet DJ Intimidator Trio XD Competitive Differences

• Combines beam, wash, and rotating honeycomb effect functions in one moving-head fixture
• Built-in D-Fi transceiver supports wireless DMX and wireless master/slave communication
• Carbon fiber composite housing provides strength, corrosion resistance, and reduced weight
• Motorized 3° to 22° zoom transitions from a narrow beam to a wide wash
• Built-in RF receiver supports optional RFC and RFC-XL wireless remotes
• USB-C port enables convenient onboard software updates
• Zone-controlled automatic programs create complex looks without extensive programming

Chauvet DJ Intimidator Trio XD Description

The Chauvet DJ Intimidator Trio XD is designed for entertainers and lighting professionals who need multiple effects without installing several separate fixtures. Six 270W quad-color RGBW LEDs produce vivid, color-mixed output with up to 124,299 lux at 2 meters when set to the narrow 3° zoom position.

A continuously rotating honeycomb lens adds movement and texture to the output, allowing the fixture to function as an effect light in addition to a beam and wash. Built-in automatic programs with zone control make it easier to generate coordinated looks, while Totem mode keeps the beams directed toward the dance floor.

The fixture supports 16-, 23-, and 52-channel DMX operation through both 3-pin and 5-pin XLR connections. Its integrated D-Fi transceiver provides wireless DMX or master/slave communication, and the built-in RF receiver allows compatible operation with optional RFC and RFC-XL remotes.

A full-color LCD display provides direct access to settings and allows one scene to be saved and recalled from the fixture. The lightweight carbon fiber composite enclosure resists corrosion while maintaining the durability needed for mobile DJ systems, clubs, event venues, and touring entertainment applications.

Intimidator Trio XD Features

• Beam, wash, and effect-light functions in one moving head
• Six quad-color RGBW LEDs with a combined 270W output rating
• Motorized zoom with a 3° to 22° beam angle
• Continuously rotating honeycomb effect
• Built-in D-Fi transceiver for wireless DMX or master/slave communication
• Built-in RF receiver for optional RFC and RFC-XL remotes
• Carbon fiber composite housing for strength, corrosion resistance, and reduced weight
• USB-C port for software updates
• Automatic programs with zone control
• Totem mode keeps beams focused on the dance floor
• Full-color LCD display
• Save and recall one scene directly from the fixture
• Adjustable pan and tilt ranges
• Power linking for simplified multi-fixture setups

Intimidator Trio XD Specifications

• DMX Channels: 16, 23, or 52
• DMX Connectors: 3-pin and 5-pin XLR
• Pan and Tilt: 540° pan and 270° tilt
• Selectable Pan Ranges: 180°, 360°, or 540°
• Selectable Tilt Ranges: 90°, 180°, or 270°
• Light Source: 6 quad-color RGBW LEDs, 270W total, 9.5A
• LED Life Expectancy: 50,000 hours
• Strobe Rate: 0 to 20Hz
• Zoom Angle: 3° to 22°
• Illuminance at 3°: 124,299 lux at 2m
• Illuminance at 22°: 7,505 lux at 2m
• Input Voltage: 100 to 240VAC, 50/60Hz, auto-ranging
• Power Consumption: 348W, 2.9A at 120V, 60Hz
• Power Consumption: 343W, 1.5A at 230V, 50Hz
• Power Linking: Up to 4 units at 120V or 8 units at 230V
• Included Cable Length: 5 ft (1.5m)
• Optional Controllers: RFC and RFC-XL
• Dimensions: 12.6 x 8.7 x 17 in (320 x 220 x 431 mm)
• Weight: 20.4 lb (9.3 kg)
• Approvals: CE, FCC, and MET
