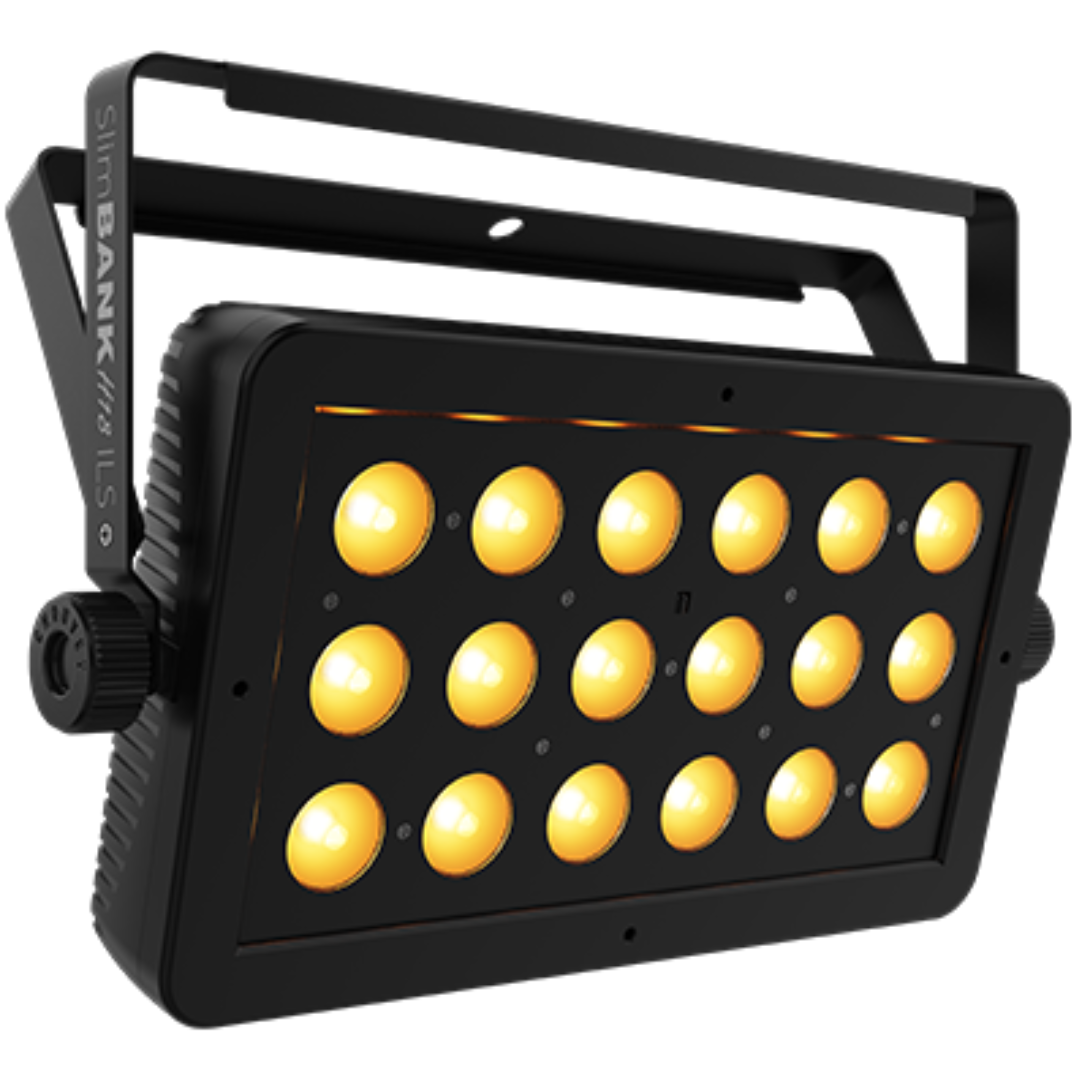

Chauvet DJ SlimBANK H18 ILS | Hex RGBAW+UV LED Wash Light | ILS Control with Fan-Free Design

Chauvet SLIMBANKH18ILS  (Chauvet DJ Slim BANK H18 ILS)

Hex-Color LED Wash Light

Chauvet DJ SlimBANK H18 ILS is a flat, fan-free LED wash light designed for vibrant color mixing, visual effects, and quiet operation. Perfect for stage washes, uplighting, and eye candy effects, this fixture uses RGBAW+UV LEDs to produce a wide color palette with smooth fades and striking looks.

Chauvet DJ SlimBANK H18 ILS Competitive Differences

• Hex-color RGBAW+UV LEDs for expanded color range
• ILS compatibility for synchronized light shows

Chauvet DJ SlimBANK H18 ILS Description

The SlimBANK H18 ILS is a feature-rich wash light that stands out with its hex-color (RGBAW+UV) LED array, delivering rich, vivid colors and UV-enhanced effects. Whether used for stage lighting, uplighting, or wall washing, the even beam and adjustable barn doors provide precise light control. Thanks to its ILS (Integrated Lighting System) compatibility, the H18 ILS can seamlessly sync with other ILS-enabled fixtures for coordinated shows without complex programming. Multiple control options are supported, including DMX, Master/Slave, ILS, and the optional IRC-6 remote. Its fan-free, radiant cooling design makes this fixture exceptionally quiet, making it a perfect choice for theaters, studios, and other noise-sensitive environments. Built-in dimming curves and auto programs with sectional control make it easy to create polished looks on the fly.

Model Features

• Hex-color RGBAW+UV LEDs (18 x 6.2W)
• ILS ecosystem compatible for synced shows
• Fan-free cooling for silent operation
• Built-in auto programs with sectional control
• Adjustable barn doors for focused beam control
• Multiple control modes: DMX, Master/Slave, IRC-6, ILS
• Smooth LED fading with dimming curves
• Power linking for up to 8 units @ 120V

Model Specifications

• DMX Channels: 6, 8, 12, or 22
• Light Source: 18 x 6.2W RGBAW+UV LEDs
• Beam Angle: 27°
• Field Angle: 43°
• Illuminance: 3,111 lux @ 2m
• Lumens: 3,356
• Strobe Rate: 0–20 Hz
• Power Linking: 8 units @ 120V, 14 @ 230V
• Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
• Power Consumption: 68W, 1A @ 120V
• Dimensions: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
• Weight: 6 lb (2.7 kg)

What's In The Box

• SlimBANK H18 ILS
• Power cord
• Barn doors
• Quick reference guide
