Chauvet Freedom H1 IP ILS X4 | 4-Pack Wireless RGBAW+UV Wash Lights | Battery-Powered IP54 Accent Lighting

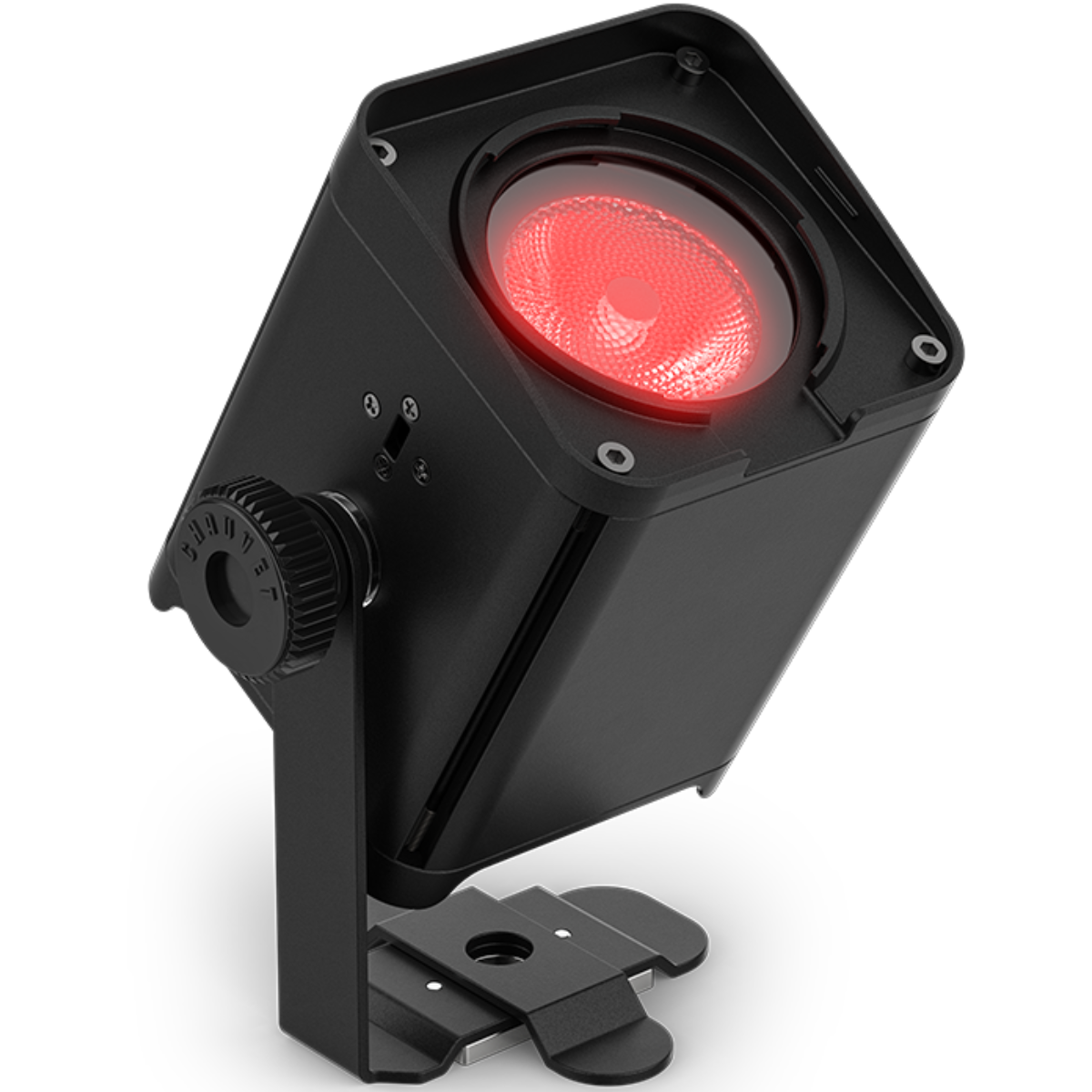

ChauvetDJ Freedom H1 IP ILS X4  (Chauvet DJ Freedom-H1-IP-ILS-X4)

Wireless Battery-Powered LED Wash Light Kit

Chauvet Freedom H1 IP ILS X4 is an ultra-compact wireless LED wash light kit designed for accent lighting, uplighting, and small-area illumination in both indoor and temporary outdoor environments. Its palm-sized design, battery-powered operation, and wide beam spread make it an excellent choice for event professionals, mobile entertainers, production teams, and venue installers who need fast, cable-free deployment.

Chauvet Freedom H1 IP ILS X4 Competitive Differences

• Complete 4-fixture kit includes multi-charger, RF remote, carry case, and quick reference guide
• Battery-powered IP54-rated design with built-in D-Fi transceiver, RF receiver, and magnetic mounting base

Chauvet Freedom H1 IP ILS X4 Description

The Chauvet Freedom H1 IP ILS X4 delivers portable wireless lighting performance in a compact package that is easy to place almost anywhere. Each fixture uses a 10 W hex-color RGBWA+UV LED source to create rich color washes and flexible color mixing for event décor, small architectural highlights, and creative production accents. With a 23° beam angle and 44° field angle, these fixtures are well suited for uplighting walls, columns, truss, and other small subjects.

This four-pack system is built for convenience and speed. Each fixture is battery-operated, allowing for up to 8 hours of runtime at full output or up to 20 hours when using a single color. The included multi-charger simplifies recharging all four units, while the carry case helps keep the system protected and organized for transport between events.

Control flexibility is another major advantage of the Freedom H1 IP ILS X4. Users can operate the fixtures via DMX with 6, 8, or 12 channels, or take advantage of the built-in RF receiver for wireless control using the included RFC remote. The built-in D-Fi transceiver also enables wireless communication with other D-Fi-enabled devices, helping reduce cable runs and speed up setup. An OLED display provides clear, full-text menu navigation for fast access to fixture settings.

Designed with temporary outdoor use in mind, the rugged IP54-rated housing helps protect the fixtures against the elements in demanding event environments. The built-in magnetic base allows quick attachment to most metal surfaces, making these lights especially useful for venue uplighting, tent lighting, scenic accents, and mobile production applications where quick positioning matters.

Freedom H1 IP ILS X4 Features

• Sold as a complete kit with 4 fixtures, multi-charger, RFC remote, carry case, and quick reference guide
• Ultra-compact battery-powered wash lights for indoor and temporary outdoor use
• RGBAW+UV color mixing from a single 10 W hex-color LED per fixture
• IP54-rated housing for temporary outdoor situations
• Built-in D-Fi transceiver for wireless communication with compatible devices
• Built-in RF receiver for wireless control
• OLED display with full-text menu navigation
• Magnetic base for mounting to most metal surfaces
• Up to 8 hours runtime at full output
• Up to 20 hours runtime on a single color
• Supports 6, 8, or 12 DMX channel personalities
• Wide beam spread for uplighting and downlighting applications
• Compatible with optional RFC, RFC-XL, and FREEDOM Connect controllers

Freedom H1 IP ILS X4 Specifications

• Light Source: 1 x 10 W hex-color LED (RGBWA+UV)
• LED Life Expectancy: 50,000 hours
• DMX Channels: 6, 8, or 12
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 23°
• Field Angle: 44°
• Illuminance: 168 lux @ 2 m
• Lumens: 137
• Max Unobstructed Distance: 600 ft (183 m)
• Operating Frequency: 2.412 to 2.484 GHz
• IP Rating: IP54
• Input Voltage: 5 VDC, 1.5 A (external power supply)
• Power Consumption: 13 W
• Power and Current: 0.3 A @ 120 V, 60 Hz
• Power and Current: 0.2 A @ 230 V, 50 Hz
• Maximum Run Time (all on): Up to 8 hours
• Maximum Run Time (single color): Up to 20 hours
• Recharge Time: 6 hours
• Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
• Bracket Mounting Hole: M12
• Weight (per fixture): 1.6 lb (0.7 kg)
• Dimensions (per fixture): 3 x 3 x 4.2 in (75 x 75 x 107 mm)
• Approvals: CE, ROHS, FCC
• Optional Controllers: RFC, RFC-XL, FREEDOM Connect

What's In The Box

• 4 fixtures
• 1 multi-charger
• 1 carry case
• 1 RF remote
• 1 quick reference guide
