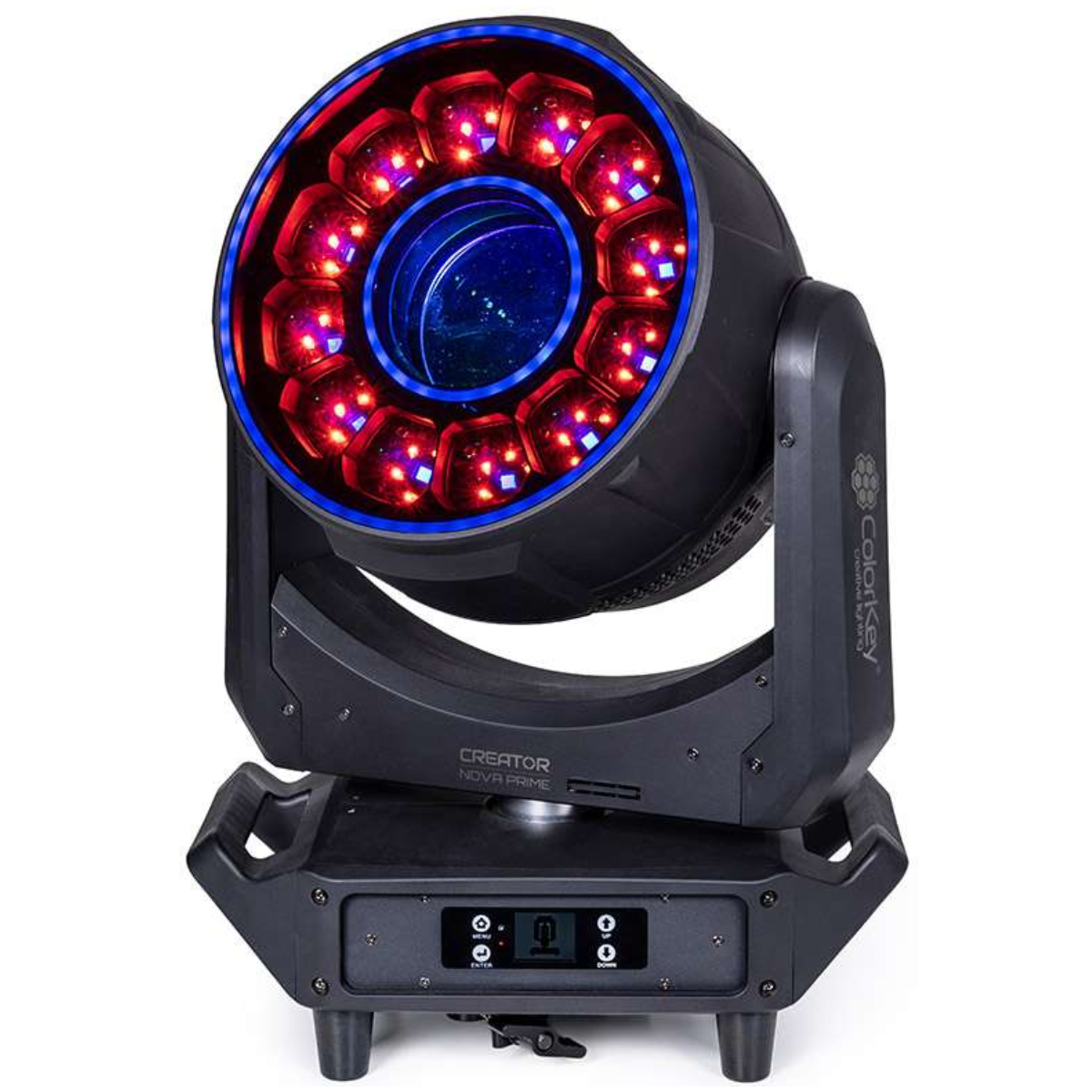

ColorKey Creator Nova Prime | 200W Beam + 12 NovaCell Lenses | UHX Dual Halo Moving Head

ColorKey CKU-5190  (Color Key Creator Nova Prime)

Beam, Wash and Pixel Moving Head

ColorKey Creator Nova Prime is a flagship moving head that combines a 200W white beam, 12 NovaCell lenses, and two RGB UHX halos in one versatile lighting fixture. Its multiple independently controllable light engines allow designers to create sharp aerial beams, wide washes, pixel effects, layered color looks, and combinations of these effects from a single moving head.

ColorKey Creator Nova Prime Competitive Differences

• Combines a 200W beam, 12 NovaCell lenses, and dual RGB UHX halos in one moving head
• Each NovaCell combines a 40W RGBW COB LED with six 5W RGBA SMD LEDs for layered wash and pixel effects
• Independent COB and SMD LED control enables chases, pixel movement, and layered color effects
• Zoomable NovaCell head transitions from an expansive wash to tighter aerial pixel effects
• 2° center beam includes dual prisms, gobos, colors, frost, and motorized focus
• UHX-enabled dual halos provide coordinated programming with other compatible UHX fixtures
• Pre-installed dual folding clamps simplify truss deployment without separate clamp hardware

ColorKey Creator Nova Prime Description

The ColorKey Creator Nova Prime is designed to deliver the capabilities of several lighting effects within one moving-head platform. At its center is a 200W white light source producing a tight 2° beam, complemented by a color wheel with 13 colors plus white, a gobo wheel with 10 gobos plus open, 16- and 8-facet prisms, a frost filter, and motorized focus.

Surrounding the beam are 12 NovaCell lenses. Each NovaCell combines a 40W RGBW COB LED with six 5W RGBA SMD LEDs, giving the complete fixture 12 COB LEDs and 72 SMD LEDs. Independent control of the COB and SMD sources allows lighting designers to build layered colors, chases, pixel movement, and dynamic visual effects beyond a conventional single-source moving head.

The NovaCell system also features zoom and rotation. The RGBW COB LEDs provide an adjustable 8° to 31° beam angle, allowing the fixture to transition between a tighter punchy effect and a broader wash. The RGBA SMD LEDs provide a 52° beam angle for additional wide-angle color and pixel effects. These engines can be combined with the central beam to create multiple visual layers simultaneously.

Two RGB UHX halos add another independently controllable visual element and support coordinated programming with compatible UHX fixtures. For mobile production companies, venues, theaters, clubs, houses of worship, and permanent installations, the Creator Nova Prime also includes dual folding clamps, power linking, a full-color LCD display, DMX512 and RDM control, Auto modes, and Sound Active operation.

Creator Nova Prime Features

• 200W white center beam
• 2° beam angle for tight aerial effects
• 13-color wheel plus white
• 10-gobo wheel plus open
• 16-facet prism
• 8-facet prism
• Motorized focus
• Frost filter for diffusing and softening the beam
• 12 NovaCell lenses
• 12 x 40W RGBW COB LEDs for wash and pixel effects
• 72 x 5W RGBA SMD LEDs for wash and pixel effects
• Independent COB and SMD LED control
• NovaCell zoom and rotation
• Two RGB UHX halos
• UHX-enabled programming with compatible fixtures
• Dual pre-installed folding clamps for fast rigging
• Full-color LCD display
• DMX512 and RDM control
• Auto and Sound Active operation
• 46-channel and 94-channel DMX modes
• Power linking support

Creator Nova Prime Specifications

• Primary Beam Light Source: 200W White
• Primary Beam Angle: 2°
• Color Wheel: 13 Colors + White
• Gobo Wheel: 10 Gobos + Open
• Prisms: 16-Facet + 8-Facet
• Focus: Motorized
• Beam Frost Filter: Yes
• NovaCell COB Light Sources: 12 x 40W RGBW LEDs
• NovaCell SMD Light Sources: 72 x 5W RGBA LEDs
• NovaCell COB Beam Angle: 8° to 31°
• NovaCell COB Field Angle: 46°
• NovaCell COB Illuminance at 31°: 7,840 lux @ 2 m
• NovaCell COB Illuminance at 8°: 107,000 lux @ 2 m
• NovaCell COB CTC Range: 2800K to 8000K
• NovaCell SMD Beam Angle: 52°
• NovaCell SMD Illuminance at 52°: 520 lux @ 2 m
• NovaCell Functions: Zoom and Rotate
• Halo Light Sources: 2 x RGB Halos
• Control Protocols: DMX512, RDM, Auto, Sound Active
• DMX Channels: 46 / 94CH
• Maximum Power Consumption: 900W
• Maximum Power Linking: 10A
• Protection Class: Category 1
• Input Voltage: AC 100-240V, 50/60Hz
• Fixture Dimensions: 10.6 x 17.3 x 21.7 in (27 x 44 x 55 cm)
• Box Dimensions: 17.32 x 25.59 x 20.87 in (44 x 65 x 53 cm)
• Weight: 67 lb (30.4 kg)
