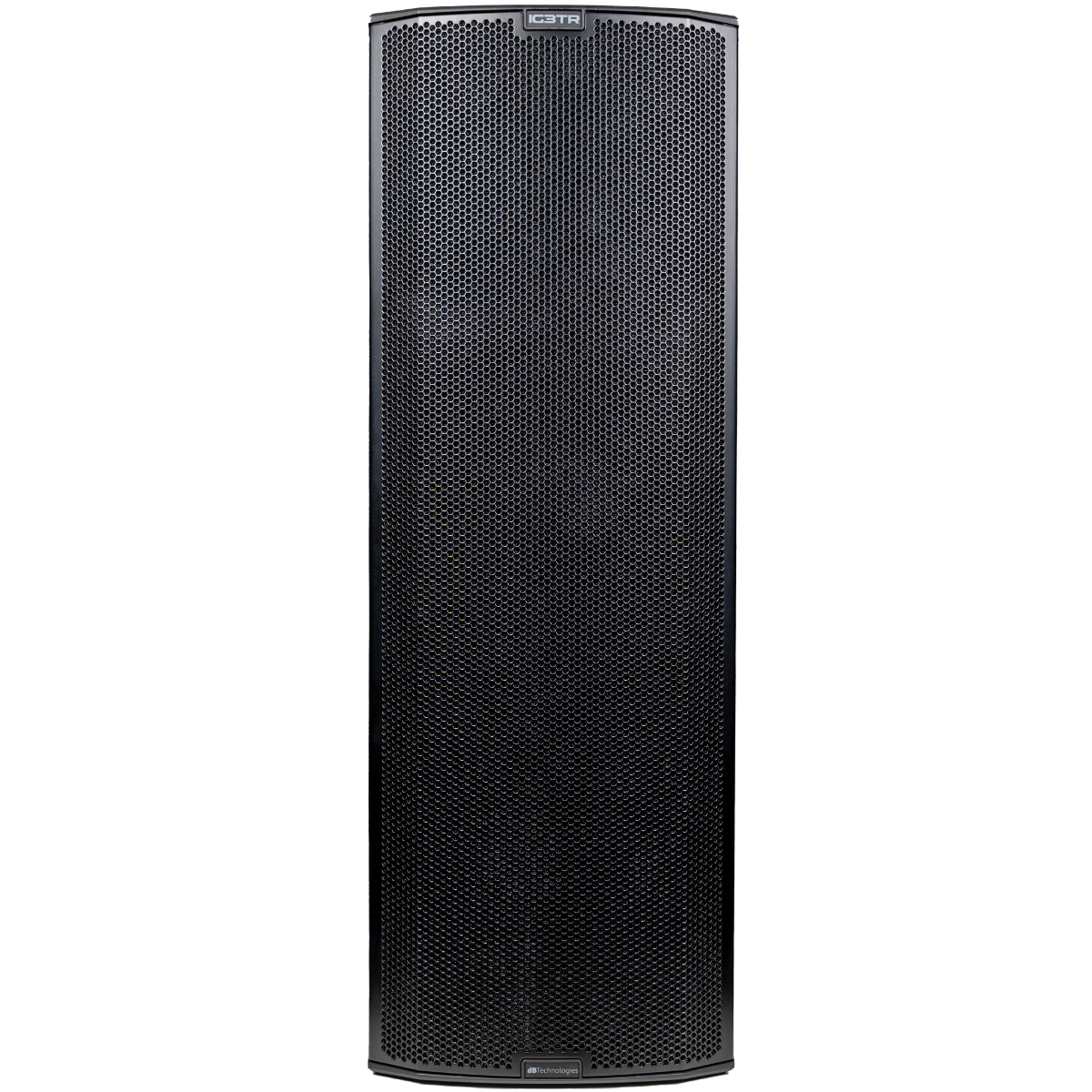

dB Tech INGENIA IG3TR
(dB Tech INGENIA-IG3TR)
Powered PA Speaker
The dBTechnologies INGENIA IG3TR is a 2-way active PA speaker featuring two 10-inch neodymium low-frequency transducers, a 1.4-inch neodymium compression driver, and 1800W peak amplification. Designed to operate individually or as a coupled pair, it combines high-output performance with automatic configuration, digital coverage steering, RDNet remote control, and an intuitive OLED interface.
dBTechnologies INGENIA IG3TR Competitive Differences
- Dual 10-inch neodymium LF drivers with a 1.4-inch compression driver deliver up to 132 dB maximum SPL
- Element Position Detection uses infrared technology to recognize when two INGENIA speakers are coupled
- Automatic onboard configuration optimizes coupled speakers for coverage and acoustic coherence
- Digital steering adjusts system dispersion without physically repositioning the enclosure
- Vertically asymmetric horn provides 110° horizontal coverage with 90° vertical coverage of +20°/-70°
- RDNet-EH connectivity enables remote control through the RDNet protocol and Aurora Net software
- 56-bit DSP with FIR Linear Phase processing provides advanced system optimization
- Self-rotating OLED display and rotary control simplify setup in different enclosure orientations
dBTechnologies INGENIA IG3TR Description
The dBTechnologies INGENIA IG3TR combines dual 10-inch neodymium woofers with a 1.4-inch neodymium compression driver and 3-inch HF voice coil. Its Digipro G3 Class-D amplifier supplies 900W RMS and 1800W peak power, producing a maximum SPL of 132 dB while covering frequencies down to 51 Hz at -10 dB.
The INGENIA system is designed for flexible deployment. An IG3TR can operate independently or be coupled with another compatible INGENIA speaker by turning one enclosure upside down and positioning it on top of the other. Infrared-based Element Position Detection recognizes the second enclosure, while an onboard configuration system automatically adjusts operation for improved acoustic coherence and audience coverage.
A vertically asymmetric horn delivers wide and consistent horizontal dispersion while varying the vertical pattern between the upper and lower portions of the coverage area. When two INGENIA enclosures are coupled, this design works with digital steering and DSP processing to control high-frequency coverage and minimize unwanted interference between the cabinets.
System control is handled through a self-rotating OLED display and rotary knob with integrated switch. The onboard 56-bit DSP manages system presets, EQ, levels, coverage steering, input configuration, FIR Linear Phase processing, and protection functions. RDNet connectivity provides additional remote-control capability for applications requiring centralized system monitoring and adjustment.
The reinforced polypropylene enclosure features integrated top and bottom handles, pole-mount capability, and flying support. These features make the IG3TR suitable for mobile DJs, live bands, production companies, houses of worship, event venues, rental systems, and installed sound applications. The optional DRK-IG flybar can be used when deploying coupled INGENIA speakers in a flown vertical array.
INGENIA IG3TR Features
- 2-way active PA speaker
- Dual 10-inch neodymium low-frequency transducers
- 1.4-inch neodymium compression driver
- 3-inch HF voice coil
- 2.5-inch LF voice coils
- 132 dB maximum SPL
- 1800W peak amplifier power
- 900W RMS amplifier power
- Digipro G3 Class-D amplification
- 56-bit DSP controller
- 24-bit/48 kHz AD/DA conversion
- FIR Linear Phase processing
- Vertically asymmetric horn
- 110° x 90° (+20°/-70°) dispersion
- 960 Hz crossover frequency
- Element Position Detection using infrared technology
- Automatic configuration when two INGENIA speakers are coupled
- Digital coverage steering
- Factory presets and user-defined presets
- Dual Active Peak, RMS, and thermal limiting
- Self-rotating OLED display
- Rotary control knob with integrated switch
- Display mirroring
- RDNet connectivity
- Compatible with Aurora Net software for remote control
- Reinforced polypropylene enclosure
- Integrated top and bottom handles
- Pole-mountable
- Flyable
- Compatible with the DRK-IG flybar for flown coupled configurations
INGENIA IG3TR Specifications
- Speaker Type: 2-Way Active Speaker
- Frequency Response (-10 dB): 51 Hz - 20 kHz
- Frequency Response (-6 dB): 55 Hz - 18.9 kHz
- Max SPL: 132 dB
- LF Drivers: 2 x 10 in
- LF Voice Coil: 2.5 in
- LF Type: Neodymium
- HF Driver: 1.4 in
- HF Voice Coil: 3 in
- HF Type: Neodymium Compression Driver
- Horn: Vertically Asymmetric
- Directivity (H x V): 110° x 90° (+20°/-70°)
- Crossover Frequency: 960 Hz
- Amplifier Technology: Digipro G3
- Amplifier Class: Class-D
- Peak Power: 1800W
- RMS Power: 900W
- Controller: 56-bit DSP
- AD/DA Converter: 24-bit/48 kHz
- DSP Processing: FIR Linear Phase
- System Presets: Factory Presets + User Defined
- Limiter: Dual Active Peak, RMS, Thermal
- User Interface: OLED Display + Rotary Knob with Switch
- Self-Rotating Display: Yes
- Positioning: EPD (Element Position Detection)
- Display Mirroring: Yes
- Signal Input: 1 x XLR/TRS Combo, 1 x RJ45 RDNet Link, 1 x Mini USB Data/Service
- Signal Output: 1 x Balanced XLR, 1 x RJ45 RDNet Link
- Housing: Reinforced Polypropylene PP
- Grille: Full Grille with Invisible Screws
- Flyable: Yes
- Handles: 1 x Top, 1 x Bottom
- Pole Mount: Yes
- Dimensions: 31.73 x 11.02 x 15.47 in (806 x 280 x 393 mm)
- Weight: 45.86 lb (20.8 kg)
