DENON PRIME4G2
(Denon PRIME 4 G2)
4-Channel Standalone DJ System

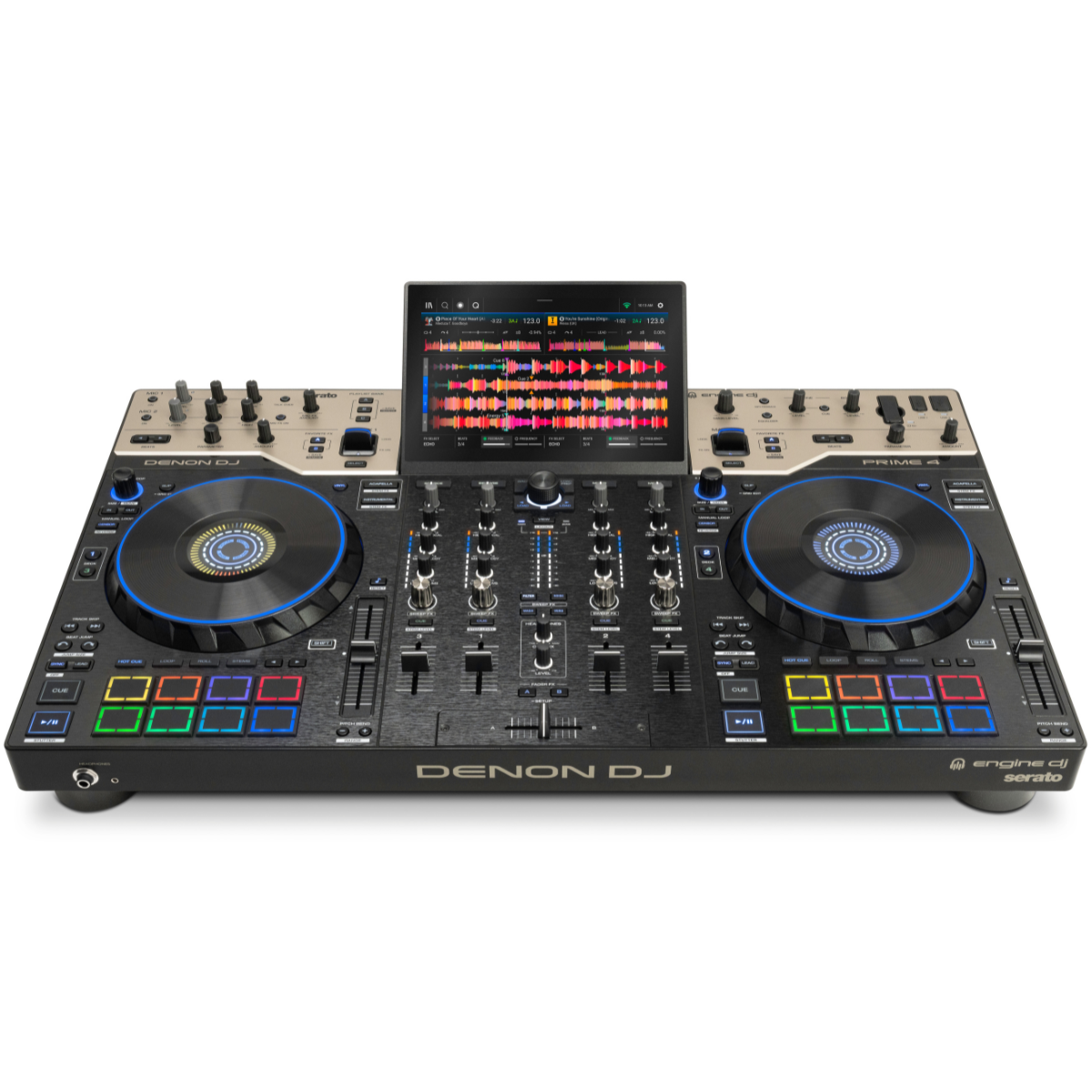

The Denon DJ PRIME 4 G2 is a performance-focused 4-channel, 4-deck standalone DJ system with onboard Stems processing, expressive MPCe performance pads, full-size 8-inch jog wheels, extensive integrated effects, and built-in DMX lighting control. Powered by an 8-core processor and Engine DJ, it gives working DJs a self-contained platform for creative mixing without requiring a computer while retaining extensive connectivity for software, external sources, streaming, and professional sound systems.
Denon DJ PRIME 4 G2 Competitive Differences
- Onboard Stem Separation with dedicated Instrumental and Acapella controls, Stems pad mode, Stem Level EQ, and Stem effects
- 16 MPCe velocity and pressure-sensitive performance pads use 3D-sensing technology for expressive multi-zone control
- Large 8-inch high-resolution jog wheels include stem status displays and cue position indicators
- 10.1-inch optically bonded HD multi-touch display provides direct control over library browsing, performance tools, mixer settings, and Engine DJ features
- ESS ES9017S 32-bit DACs deliver up to 119 dB A-weighted dynamic range from the balanced Main outputs
- Built-in isolated DMX interface provides direct control of one 512-channel lighting universe without requiring an external DMX interface
- Dual Main FX modules, Touch FX, Fader FX, Sweep FX, and Stem FX provide multiple layers of hands-on effects control
- Independent balanced XLR Main, Booth, and Zone outputs make the system well suited to mobile, club, hospitality, and multi-room events
- Built-in Wi-Fi, Bluetooth 5.4, SD storage, USB media, and an internal SATA drive bay provide extensive music-source flexibility
- OmniSource capability is designed to provide integrated mixing between standalone Engine sources and supported computer DJ software when available
Denon DJ PRIME 4 G2 Description
The Denon DJ PRIME 4 G2 expands the PRIME standalone workflow with hardware designed for more expressive, performance-driven DJing. Its 16 MPCe pads respond to both velocity and pressure using 3D-sensing technology, allowing compatible functions and parameters to react dynamically to how each pad is played. Dedicated Stems controls provide quick access to Acapella and Instrumental separation, while Stems pad mode, Stem Level EQ, and Stem effects create additional options for live remixing and transitions.
Two full-size 8-inch jog wheels provide a spacious performance surface with integrated visual feedback for stem status and cue position. The 10.1-inch, 1280 x 800 optically bonded multi-touch display provides access to music libraries, waveforms, performance functions, mixer routing, effects, microphone controls, lighting, and system settings. Five 45 mm faders cover the four mixer channels and crossfader, with a side-mounted design intended to reduce exposure to dust and debris while maintaining smooth operation.
The effects architecture is built for layered creative control. Two dynamic Main FX modules provide more than 25 effects with toggle paddles and Favorite FX controls, while 10 reactive Touch FX can be manipulated directly from the touchscreen. Fader FX add fader-triggered processing, and each mixer channel has a dedicated Sweep FX control with four selectable effect types. Combined with the system's Stem processing, these tools allow DJs to reshape tracks without interrupting the core mixing workflow.
For professional events, PRIME 4 G2 provides balanced XLR Main, Booth, and Zone outputs along with independent Zone playback capabilities, two microphone inputs, Line/Phono inputs, Bluetooth audio, multiple USB connections, SD media support, and an internal SATA drive bay. Integrated Engine Lighting with a physical DMX output can control a full 512-channel universe directly, while compatible SoundSwitch hardware can expand control to as many as two universes. The result is a standalone system designed for club DJs, mobile entertainers, private-event DJs, houses of worship, production companies, and performers who want audio, lighting, Stems, and media management from one platform.
PRIME 4 G2 Features
- 4-channel, 4-deck standalone DJ performance system
- Engine DJ standalone operating system
- 8-core ARM processor
- 4 GB RAM
- 10.1-inch HD optically bonded multi-touch display
- 1280 x 800 full-color touchscreen resolution
- Full-size 8-inch high-resolution jog wheels
- Jog wheel displays show Stem status and cue position information
- 16 MPCe velocity and pressure-sensitive performance pads
- 3D-sensing performance pad technology
- Onboard Stem Separation
- Dedicated Instant Acapella and Instrumental controls
- Stems performance pad mode
- Stem Level EQ control
- Stem effects capabilities
- Two dynamic internal Main FX modules
- More than 25 Main FX
- Main FX toggle paddles
- Favorite FX buttons
- 10 reactive Touch FX with latch control
- Fader-triggered Fader FX
- Favorite Fader FX controls
- 4 Sweep FX options with dedicated controls on each mixer channel
- ESS ES9017S 32-bit digital-to-analog converters
- 4 channel faders plus crossfader
- 45 mm fader travel
- Side-mounted fader design helps reduce dust and debris buildup
- Built-in isolated DMX lighting interface
- Direct control of 1 DMX universe with up to 512 channels
- Engine Lighting powered by SoundSwitch
- Philips Hue smart lighting support
- Nanoleaf smart lighting support
- Support for up to 2 DMX universes / 1024 channels with compatible SoundSwitch hardware
- Bluetooth Deck for mixing audio from compatible smartphones and tablets
- Bluetooth 5.4
- Bluetooth keyboard support
- Built-in dual-band Wi-Fi
- 2.4 GHz and 5 GHz Wi-Fi support
- 802.11a/b/g/n/ac Wi-Fi 5 support
- Onboard access to supported streaming music services with applicable subscriptions
- Amazon Music Unlimited support
- Apple Music support
- Beatport support
- SoundCloud Go+ support
- TIDAL support
- Spotify support listed as coming soon
- OmniSource integration with supported computer DJ software listed as coming soon
- 3 Playlist Bank buttons for instant access to assigned playlists
- Advanced on-screen mixer configuration
- On-screen crossfader assignment and curve adjustment
- On-screen FX channel assignment
- Selectable channel sources including Line, Bluetooth, Computer, and Engine
- Fader Start support
- 10-band software EQ for Main, Zone, and Booth outputs
- Independent balanced XLR Main output
- Independent balanced XLR Booth output
- Independent balanced XLR Zone output
- Zone output includes dedicated Cue functionality
- Zone can play an individual deck or playlist through a separate audio system
- 2 stereo Line/Phono RCA input sets
- 2 microphone inputs with 3-band EQ
- Microphone Echo and Reverb effects
- Microphone Talkover
- Microphone Anti-Feedback processing
- Mic 2 can operate as an instrument or line-level input
- 2 USB Type-A media ports
- 2 USB Type-C ports
- SD, SDHC, and SDXC card support
- Internal SATA 3.0 drive bay
- Compatible with exFAT and FAT32 media
PRIME 4 G2 Specifications
- Channels: 4
- Standalone Decks: 4
- Processor: 8-core ARM
- RAM: 4 GB
- Main Display: 10.1 in (256.5 mm) full-color optically bonded multi-touch
- Display Resolution: 1280 x 800
- Jog Wheels: 8 in high-resolution
- Jog Display: RGB LED array with 60 LEDs per display
- Performance Pads: (16) MPCe velocity and pressure-sensitive pads with 3D sensing
- Faders: (4) channel faders plus (1) crossfader, 45 mm
- Main D/A Converter: ESS ES9017S 32-bit DAC
- Balanced Main Output Dynamic Range: Up to 119 dB A-weighted
- Balanced Main Maximum Output Level: +20 dBu (8 Vrms)
- Balanced Main Frequency Response: 20 Hz–20 kHz
- Balanced Main THD+N: 0.001%
- Unbalanced Main Output: Stereo RCA
- Unbalanced Main D/A Converter: ESS ES9017S 32-bit DAC
- Unbalanced Main Dynamic Range: Up to 118 dB A-weighted
- Unbalanced Main Maximum Output Level: +14 dBu (4 Vrms)
- Unbalanced Main Frequency Response: 20 Hz–20 kHz
- Unbalanced Main THD+N: 0.003%
- Booth Output: Balanced XLR left/right
- Zone Output: Balanced XLR left/right
- Microphone Inputs: (2) balanced XLR / 1/4 in combo jacks
- Microphone Dynamic Range: 100 dB
- Microphone Maximum Input Level: 100 mVrms
- Microphone Frequency Response: 20 Hz–20 kHz
- Microphone THD+N: Less than 0.005%
- Instrument Input: Mic 2 in Instrument mode
- Instrument Input Type: Unbalanced mono
- Instrument Dynamic Range: 111 dB A-weighted
- Instrument Maximum Input Level: +15 dBu (4.3 Vrms)
- Instrument Frequency Response: 20 Hz–20 kHz
- Instrument THD+N: 0.002%
- Channel 3 and 4 Line Inputs: Stereo RCA
- Line Input Dynamic Range: 114 dB A-weighted
- Line Maximum Input Level: +14 dBu (4 Vrms)
- Line Frequency Response: 20 Hz–20 kHz
- Line THD+N: 0.001%
- Channel 3 and 4 Phono Inputs: Stereo RCA, RIAA equalized
- Phono Maximum Input Level: -17 dBu
- Phono Gain: +31.7 dB at 1 kHz
- Phono Frequency Response: RIAA curve
- Headphone Outputs: 1/4 in stereo and 3.5 mm stereo mini-jack
- Headphone D/A Converter: ESS ES9017S 32-bit DAC
- Headphone Dynamic Range: 113 dB
- Headphone Maximum Output Level: +14 dBu
- Headphone Frequency Response: 20 Hz–20 kHz
- Headphone Output Power: 180 mW at 32 ohms / 10 mW at 600 ohms
- Headphone THD+N: 0.001%
- USB 1: Type-C, USB 2.0 High Speed, 1.0A
- USB 2: Type-A, USB 2.0 High Speed, 1.0A
- USB 3: Type-A, USB 3.0 SuperSpeed, 1.0A
- Computer/Media Port: Type-C with locking thread, USB 3.0 SuperSpeed, 2.0A
- Computer/Media USB-C Port: Dual-role connection for computer or media device
- SD Media: SD, SDHC, SDXC
- Internal Storage Bay: SATA 3.0
- Wi-Fi: 2.4 GHz / 5 GHz, 802.11a/b/g/n/ac, Wi-Fi 5
- Bluetooth: Version 5.4
- Built-In DMX: 1 universe, 512 channels
- Expanded DMX Support: Up to 2 universes / 1024 channels with compatible SoundSwitch interfaces
- Supported File Systems: exFAT, FAT32
- Playable Formats: AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3, MP4, Ogg Vorbis, WAV
- AIFF/WAV Support: 44.1–192 kHz, 16–32-bit
- MP3 Support: 32–320 kbps
- Power Input: 100–240 VAC, 50/60 Hz
- Power Consumption: 100W
- Power Connector: Locking IEC
- Dimensions: 30 x 19.57 x 4.13 in (762 x 497.1 x 104.9 mm)
- Weight: 21.83 lb (9.9 kg)
