Electro-Voice EVID-P6.2B | 6.5in Pendant Speaker | Black 70V/100V Install Speaker

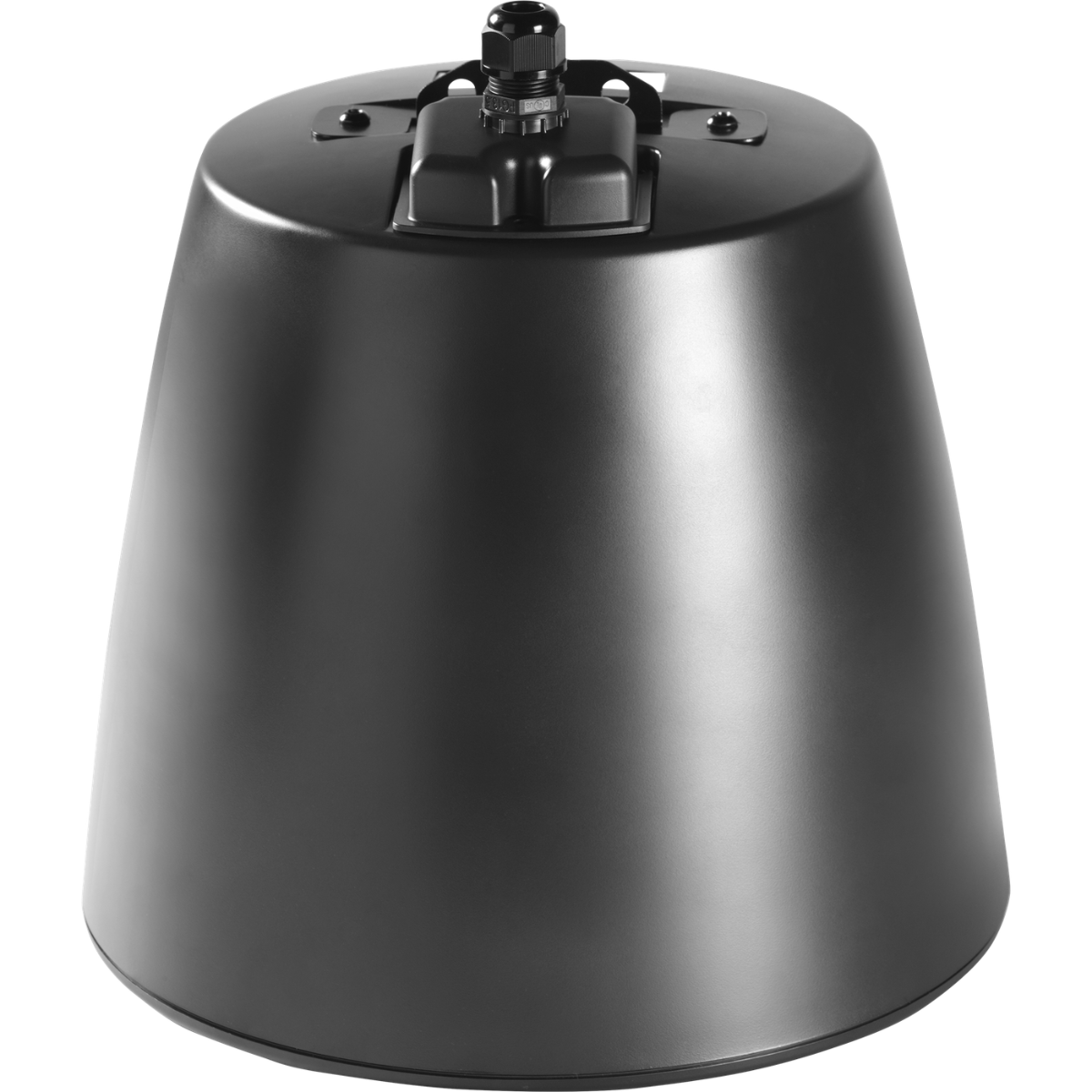

Electro-Voice EVID-P6.2B  (Electro-Voice EVIDP6.2B)

Pendant Installation Loudspeaker

Electro-Voice EVID-P6.2B is a black 6.5-inch two-way pendant loudspeaker designed for clear music and voice coverage in commercial spaces with open ceilings. Its coaxial driver design, magnetic grille, front baffle tap adjustment, and included suspension hardware make it practical for restaurants, retail stores, hospitality spaces, offices, and protected outdoor installations.

Electro-Voice EVID-P6.2B Competitive Differences

• Magnetic grille allows easy access to front baffle wattage tap adjustment
• Supports 70V, 100V, and 8-ohm operation for flexible installed audio system design

Electro-Voice EVID-P6.2B Description

The Electro-Voice EVID-P6.2B is a complete two-way pendant speaker system built around a 6.5-inch weatherized low-frequency driver and a 1-inch titanium dome tweeter. Its 115° conical coverage pattern helps deliver broad, even sound dispersion for background music, paging, and foreground audio in open-ceiling spaces.

The internal transformer provides selectable taps for 70V and 100V distributed audio systems, plus 8-ohm bypass for low-impedance amplifier setups. Tap selection is located on the front baffle and can be accessed quickly by removing the magnetic grille.

For reliability, the speaker uses full-bandwidth overload protection with a comprehensive protection circuit for the crossover, woofer, and tweeter. The ported, internally damped cabinet supports wide-range audio reproduction, while the UL94V-0 rated ABS enclosure and powder-coated steel grille provide durable installed performance.

EVID-P6.2B Features

• Black 6.5-inch two-way pendant loudspeaker
• Designed for indoor and protected outdoor installations
• 6.5-inch weatherized cone low-frequency driver
• 1-inch titanium dome high-frequency driver
• Full-bandwidth overload protection
• Front baffle wattage tap adjustment
• Magnetic grille for easy tap adjustment access
• 70V, 100V, and 8-ohm operation
• 115° conical coverage pattern
• Ported two-way cabinet with internal damping
• 4-pin terminal block with pass-through wiring
• UL 1480A and CSA C22.2 certified

EVID-P6.2B Specifications

• Speaker Type: Passive 2-Way Pendant Loudspeaker
• Frequency Range: 60 Hz – 20 kHz
• Sensitivity: 87 dB SPL, 1W/1m
• Coverage: 115° Conical
• Power Handling: 75W at 8 Ohms with Overload Protection
• Rated Impedance: 8 Ohms
• Input Configuration: 8 Ohms / 70V / 100V
• Transformer Taps: 70V: 1.8W / 3.7W / 7.5W / 15W / 30W
• Transformer Taps: 100V: 3.7W / 7.5W / 15W / 30W
• Recommended High Pass: 60 Hz
• LF Driver: 6.5 in (165 mm) Weatherized Cone Driver
• HF Driver: 1 in (25 mm) Titanium Dome Tweeter
• Acoustic Design: Ported Two-Way Cabinet with Passive Crossover
• Mounting System: Rear-Mounted Suspension Points
• Cabinet Construction: UL94V-0 Rated Enclosure and Baffle
• Grille Construction: Powder-Coated Steel
• Color: Black
• Dimensions: 11.9 x 12.2 in (301 x 310 mm)
• Net Weight: 11.65 lb (5.28 kg)
• Shipping Weight: 13.85 lb (6.28 kg)
• Approvals: CE, UL 1480A, CSA 22.2

What's In The Box

• Electro-Voice EVID-P6.2B Pendant Speaker
• Magnetic Grille
• Grille Removal Tool
• Pendant Suspension Cable
