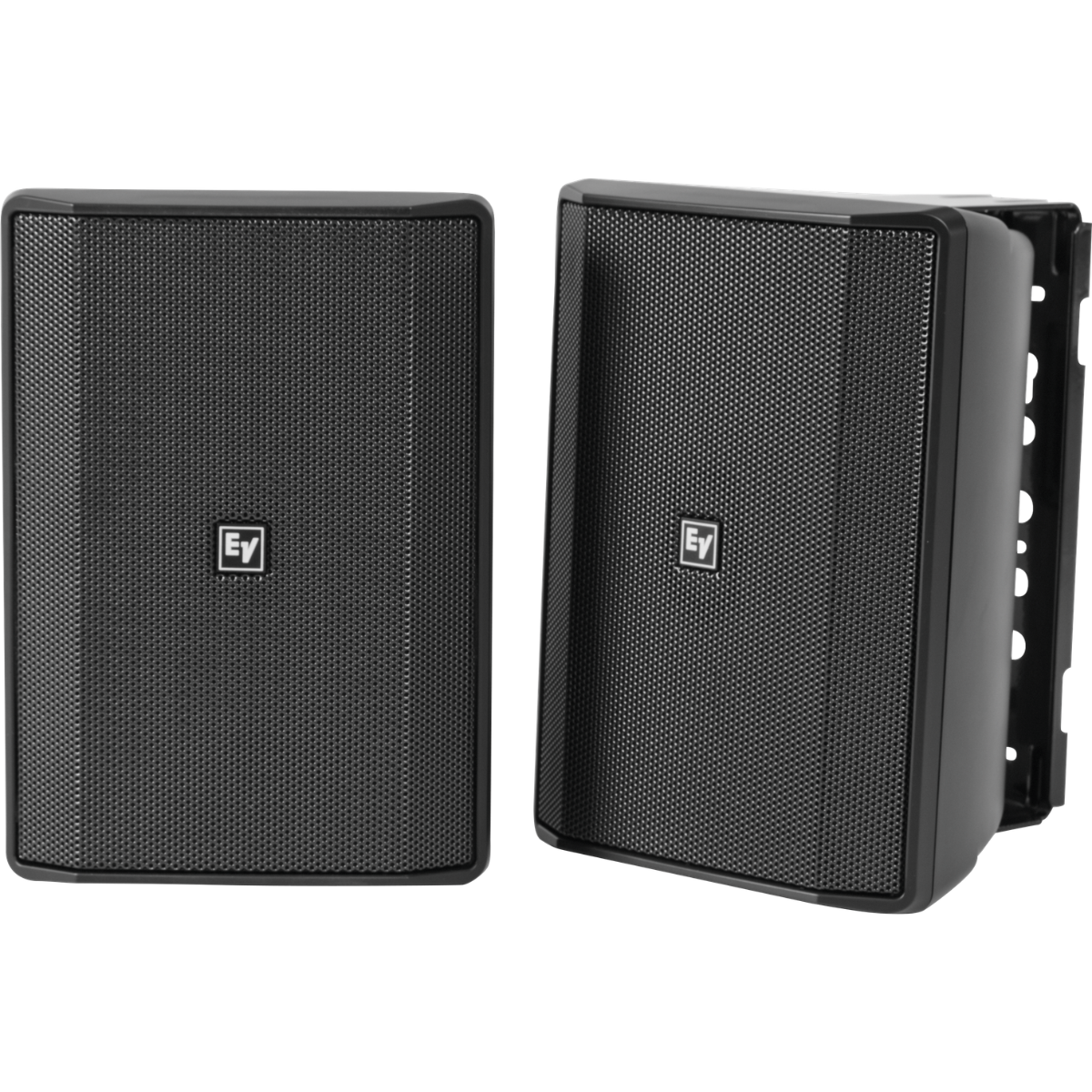

Electro-Voice EVID-S5.2XB | 5.25in IP65 Surface Speaker Pair | Black 70V/100V Install Speakers

Electro-Voice EVID-S5.2XB  (Electro-Voice EVID-S5.2X)

Weatherized Surface-Mount Installation Speaker

Electro-Voice EVID-S5.2XB is a black 5.25-inch two-way surface-mount speaker pair designed for demanding indoor and outdoor commercial audio systems. With IP65 weather resistance, a marine-grade aluminum grille, 70V/100V transformer operation, and flexible U-bracket mounting, it is ideal for patios, coastal areas, restaurants, bars, retail spaces, hospitality venues, theme parks, and other challenging installed sound applications.

Electro-Voice EVID-S5.2XB Competitive Differences

• IP65-rated weatherized construction with marine-grade aluminum grille for tough outdoor environments
• Integrated 60W transformer supports 70V/100V systems plus 8-ohm bypass

Electro-Voice EVID-S5.2XB Description

The Electro-Voice EVID-S5.2XB delivers full-range performance from a 5.25-inch long-throw woofer and 0.75-inch high-frequency transducer. Its 90° x 90° coverage pattern helps provide wide, uniform dispersion for background music, foreground audio, paging, voice evacuation, and sound reinforcement.

The built-in 60W transformer supports 70V and 100V distributed audio systems, with selectable taps of 7.5W on 70V only, plus 15W, 30W, and 60W. An 8-ohm bypass is also available for low-impedance operation, with tap selection located on the rear input panel.

Engineered for severe outdoor conditions, the EVID-S5.2XB features IP65 protection against sun, salt, and moisture. Its UL 94-5VB fire-rated ABS enclosure, marine-grade aluminum grille, and included U-bracket make it a durable solution for demanding commercial installations.

EVID-S5.2XB Features

• Black 5.25-inch two-way surface-mount speaker pair
• IP65-rated for tough indoor and outdoor environments
• Marine-grade aluminum grille
• UL 94-5VB fire-rated ABS plastic enclosure
• Long-throw 5.25-inch woofer for extended low-frequency performance
• 0.75-inch high-frequency transducer
• 90W power handling
• 108 dB maximum SPL / 114 dB peak
• 55 Hz – 20 kHz frequency range
• 90° x 90° nominal coverage
• Integrated 60W transformer for 70V/100V operation
• 8-ohm bypass for low-impedance systems
• Included U-bracket with 80° rotation

EVID-S5.2XB Specifications

• Speaker Type: Passive 2-Way Weatherized Surface-Mount Speaker Pair
• Frequency Range: 55 Hz – 20 kHz (-10 dB)
• Frequency Response: 90 Hz – 20 kHz (-3 dB)
• Max SPL: 108 dB Continuous / 114 dB Peak
• Sensitivity: 90 dB, 1W/1m
• Power Handling: 90W
• Transformer: 70V/100V, 60W
• Transformer Taps: 70V: 7.5W / 15W / 30W / 60W
• Transformer Taps: 100V: 15W / 30W / 60W
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6 Ohms
• Coverage: 90° H x 90° V
• LF Driver: 5.25 in (122 mm)
• HF Driver: 0.75 in (20 mm)
• Recommended High Pass: 60 Hz
• Connector Type: Removable Locking 4-Pin Euroblock for Distributed Line Connection
• Maximum Wire Size: 12 AWG (2.5 mm²)
• Weatherized: Yes
• Environmental Rating: IP65
• Color: Black
• Dimensions: 10 x 7.1 x 5.8 in (255 x 180 x 148 mm)
• Net Weight: 7.1 lb (3.2 kg) per pair
• Shipping Weight: 20.9 lb (9.5 kg)

What's In The Box

• 2 x Electro-Voice EVID-S5.2XB Speakers
• U-Brackets
