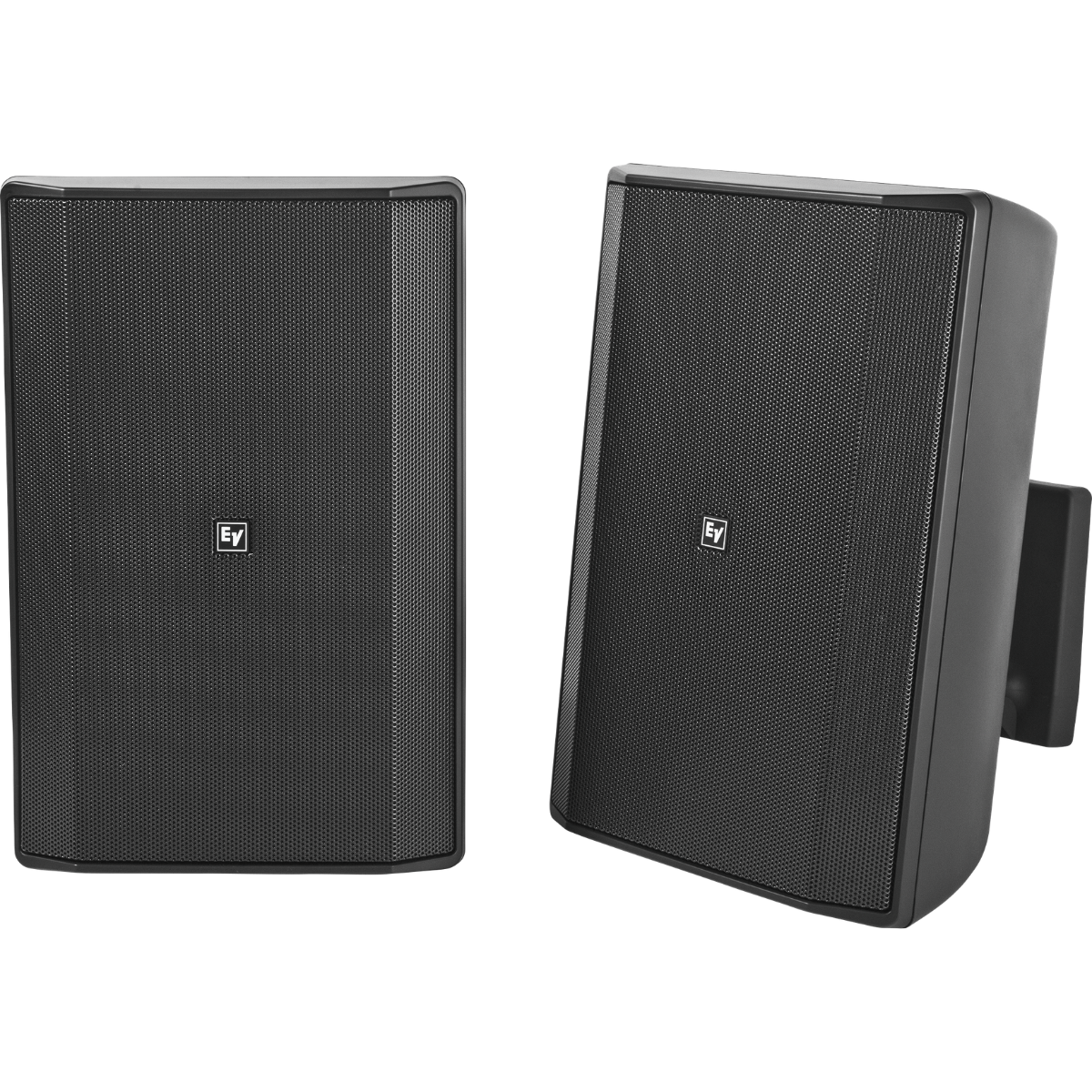

Electro-Voice EVID-S8.2TB | 8in Surface Speaker Pair | Black 70V/100V Install Speakers

Electro-Voice EVID-S8.2TB  (Electro-Voice EVID-S8.2T)

Surface-Mount Installation Speaker

Electro-Voice EVID-S8.2TB is a black 8-inch two-way surface-mount speaker pair designed for background music, foreground audio, paging, and sound reinforcement. With 70V/100V transformer operation, IP54 weather resistance, and flexible wall or ceiling mounting, it is ideal for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, and other installed audio applications.

Electro-Voice EVID-S8.2TB Competitive Differences

• Integrated 60W transformer supports 70V/100V distributed audio systems plus 8-ohm bypass
• Long-throw 8-inch woofer delivers extended low-frequency performance down to 50 Hz

Electro-Voice EVID-S8.2TB Description

The Electro-Voice EVID-S8.2TB delivers full-range performance from an 8-inch long-throw woofer and 1-inch high-frequency transducer. Its 90° x 90° coverage pattern helps provide wide, uniform sound across commercial spaces for distributed audio, background music, paging, and sound reinforcement.

The built-in 60W transformer allows operation on 70V and 100V constant-voltage systems, with selectable taps of 7.5W on 70V only, plus 15W, 30W, and 60W. An 8-ohm bypass is also available for low-impedance amplifier systems, with tap selection handled from the rear input panel.

Engineered for both indoor and outdoor use, the EVID-S8.2TB features an IP54-rated weatherized design that helps resist sun, salt, and moisture. Its fire-rated ABS plastic enclosure, compact cabinet shape, and included mounting system make installation quick, clean, and reliable.

EVID-S8.2TB Features

• Black 8-inch two-way surface-mount speaker pair
• 70V/100V transformer version with 8-ohm bypass
• Integrated 60W transformer
• Long-throw 8-inch woofer for extended low-frequency performance
• 1-inch high-frequency transducer
• 90W continuous / 360W peak power handling
• 110 dB maximum SPL / 116 dB peak
• 50 Hz – 20 kHz frequency range
• 90° x 90° nominal coverage
• IP54 weatherized construction for indoor and outdoor use
• Fire-rated ABS plastic enclosure
• Included mount system for quick and reliable installation
• Supports wall or ceiling mounting

EVID-S8.2TB Specifications

• Speaker Type: Passive 2-Way Surface-Mount Speaker Pair
• Frequency Range: 50 Hz – 20 kHz (-10 dB)
• Frequency Response: 70 Hz – 20 kHz (-3 dB)
• Max SPL: 110 dB Continuous / 116 dB Peak
• Power Handling: 90W Continuous / 360W Peak
• Power Rating: 360W
• Transformer: 70V/100V, 60W
• Transformer Taps: 70V: 7.5W / 15W / 30W / 60W
• Transformer Taps: 100V: 15W / 30W / 60W
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6 Ohms
• Coverage: 90° H x 90° V
• LF Driver: 8 in (203 mm)
• HF Driver: 1 in (25 mm)
• Recommended High Pass: 50 Hz
• Connector Type: Captive Screws on Wall Bracket; Removable Locking 4-Pin Euroblock for Distributed Line Connection
• Maximum Wire Size: 12 AWG (2.5 mm²)
• Weatherized: Yes
• Environmental Rating: IP54
• Regulatory Approvals: IP54
• Color: Black
• Dimensions: 15.4 x 9.8 x 8.8 in (390 x 250 x 223 mm)
• Net Weight: 12.8 lb (5.8 kg) per pair
• Shipping Weight: 32.6 lb (14.8 kg)

What's In The Box

• 2 x Electro-Voice EVID-S8.2TB Speakers
• Mounting Brackets
