Electro-Voice ZLX-G2-BRKT | Wall Bracket for ZLX G2 12/15 | Steel Mounting Hardware

Electro Voice F.01U.398.947  (Electro-Voice ZLX G2 Bracket)

Wall Mount Bracket

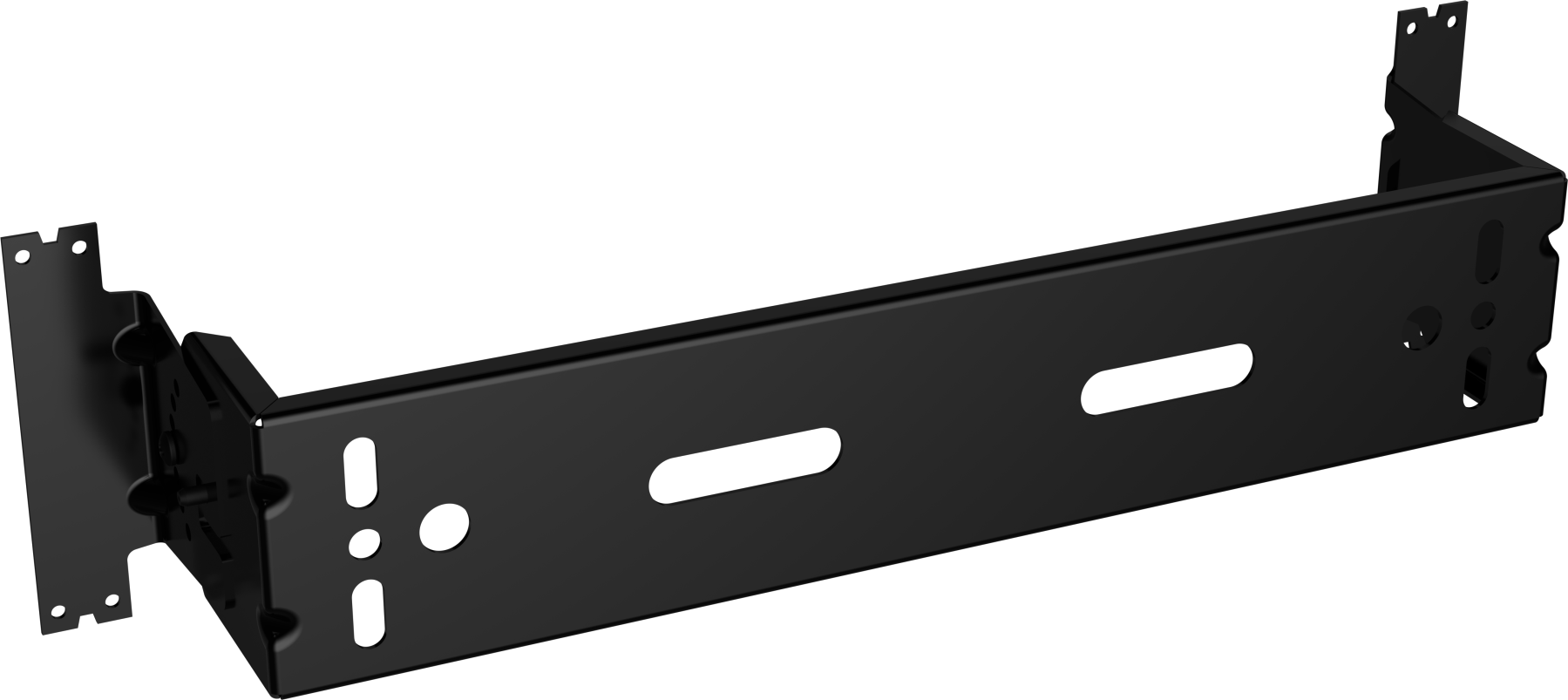

Electro-Voice ZLX-G2-BRKT is a black steel mounting bracket designed for 12-inch and 15-inch ZLX-G2 loudspeakers. It provides flexible installation options for mounting compatible ZLX-G2 speakers to a wall, ceiling, pole, pipe, or truss.

Electro-Voice ZLX-G2-BRKT Competitive Differences

• Designed for 12-inch and 15-inch Electro-Voice ZLX-G2 loudspeakers
• Supports wall, ceiling, pole, pipe, and truss mounting applications
• Includes four slot types for different mounting methods
• Steel construction with a black finish

Electro-Voice ZLX-G2-BRKT Description

The Electro-Voice ZLX-G2-BRKT is a dedicated mounting accessory for compatible ZLX-G2 full-range loudspeakers, giving installers a secure hardware solution for fixed or semi-permanent speaker placement.

Its multi-slot design allows the bracket to adapt to several common installation types, including wall and ceiling mounting as well as pole, pipe, or truss applications.

Built from steel and finished in black, the bracket is designed to match ZLX-G2 loudspeakers while maintaining a clean installed appearance in venues, houses of worship, bars, restaurants, schools, and event spaces.

ZLX-G2-BRKT Features

• Wall mount bracket for 12-inch and 15-inch ZLX-G2 loudspeakers
• Compatible with ZLX-12-G2, ZLX-12P-G2, ZLX-15-G2, and ZLX-15P-G2
• Mounts compatible loudspeakers to a wall, ceiling, pole, pipe, or truss
• Includes four types of slots for different mounting types
• Steel construction
• Black finish

ZLX-G2-BRKT Specifications

• Product Type: Wall mount bracket
• Compatibility: Electro-Voice ZLX-12-G2, ZLX-12P-G2, ZLX-15-G2, and ZLX-15P-G2 loudspeakers
• Material: Steel
• Color: Black
• Shipping Dimensions: 5.31 x 6.30 x 21.06 in (135 x 160 x 535 mm)
• Weight: 3.20 lb (1.44 kg)
• Shipping Weight: 4.4 lb (1.98 kg)
• Order Number: ZLX-G2-BRKT / F.01U.398.947
• UPC: 800549611855

What's In The Box

• Bracket with through hole
• Bracket with slotted hole
• U-bracket
• 2 M6x20 Phillips pan head screws
