Eliminator Mega Color Q18 | 1m RGBA LED Wash Bar | Pixel Mapping & 5 DMX Modes

 (Eliminator MEG120)

RGBA LED Wash Bar

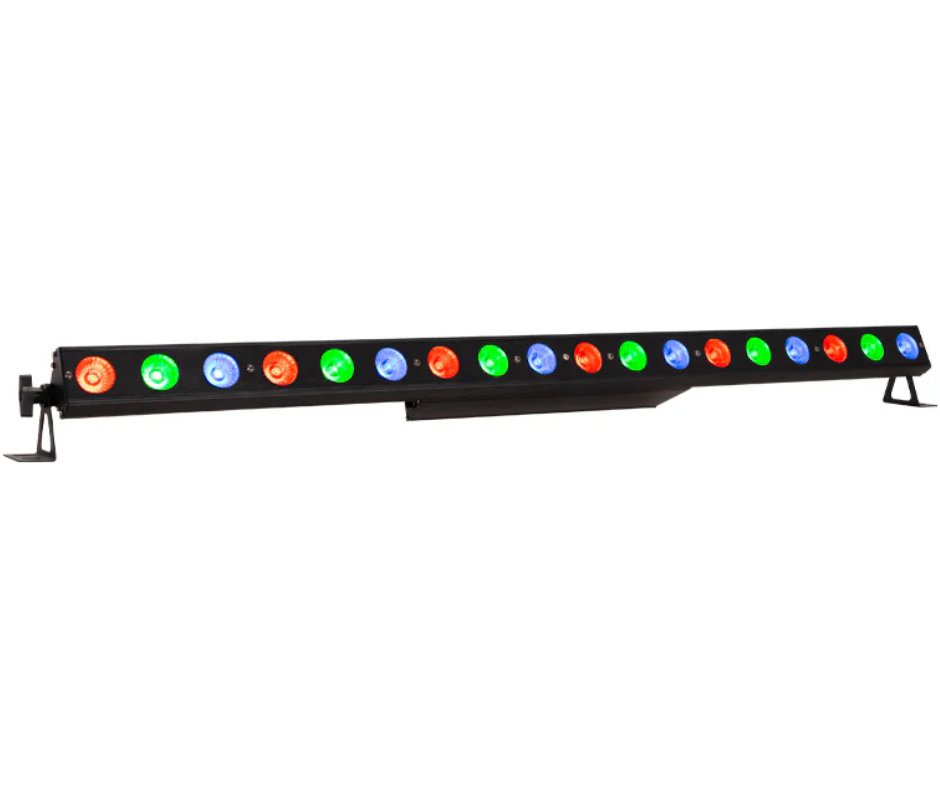

Eliminator Mega Color Q18 is a slim, 1-meter linear wash fixture that delivers vibrant color mixing and wide coverage for uplighting, wall washing, and stage effects. Featuring RGBA (red, green, blue, amber) LEDs, this compact bar produces rich hues and warm tones with smooth transitions—perfect for DJs, stages, clubs, and event venues seeking dynamic color output in a compact form.

Eliminator Mega Color Q18 Competitive Differences

• 18 × 4W RGBA LEDs with 25° beam angle
• Pixel mappable with five DMX modes up to 74 channels

Eliminator Mega Color Q18 Description

The Eliminator Mega Color Q18 is engineered for flexibility and creativity, offering 18 powerful RGBA LEDs in a low-profile 1-meter housing. Each 4-watt LED provides rich color mixing with the added benefit of amber for enhanced warmth and tone blending. The 25° beam angle makes it ideal for a wide range of applications including uplighting, wall washing, and accent lighting in performance spaces or event environments. Thanks to pixel mapping capability and five selectable DMX channel modes (4, 6, 9, 72, and 74 channels), the Mega Color Q18 gives lighting designers granular control over effects, allowing for custom chases and color gradients. For quick setups, built-in auto programs, strobe effects, color selection, and sound-active mode offer ready-to-run operation without external controllers. Standard 3-pin XLR DMX connectors ensure compatibility with existing systems, and primary/secondary mode allows for synchronized operation across multiple fixtures. The lightweight build (under 5 lb.) and slim profile make it ideal for mobile setups and tight installations. Designed for reliable indoor use, the Mega Color Q18 runs on universal AC power and is rated IP20, making it an excellent choice for DJs, clubs, bars, stages, and touring productions.

Model Features

• 18 × 4W RGBA (4-in-1) LEDs
• Pixel mappable for custom programming
• 25° beam angle for broad coverage
• 5 selectable DMX modes: 4 / 6 / 9 / 72 / 74 channels
• Built-in programs with color changing, strobe, and sound active options

Model Specifications

• LED Type: 18 × 4W RGBA (4-in-1)
• Beam Angle: 25°
• LED Lifespan: 50,000 hours
• Control Modes: DMX512, Auto, Primary-Secondary, Sound Active
• DMX Channel Modes: 4 / 6 / 9 / 72 / 74
• DMX Connectors: 3-pin XLR
• Voltage: AC100–240V, 50/60Hz
• Dimensions: 39.76 × 2.36 × 3.94 in (101 × 6 × 10 cm)
• Weight: 4.62 lb (2.1 kg)
• IP Rating: IP20 (indoor use)

What's In The Box

• Mega Color Q18 unit
• Power cable
• Quick start guide
