Event Lighting BAR224FXL | 224 RGB LED Bar Effect | 16 Segment DMX Party Lighting

Event Lighting BAR224FXL  (Event Lighting BAR-22-4FXL)

LED Effect Bar

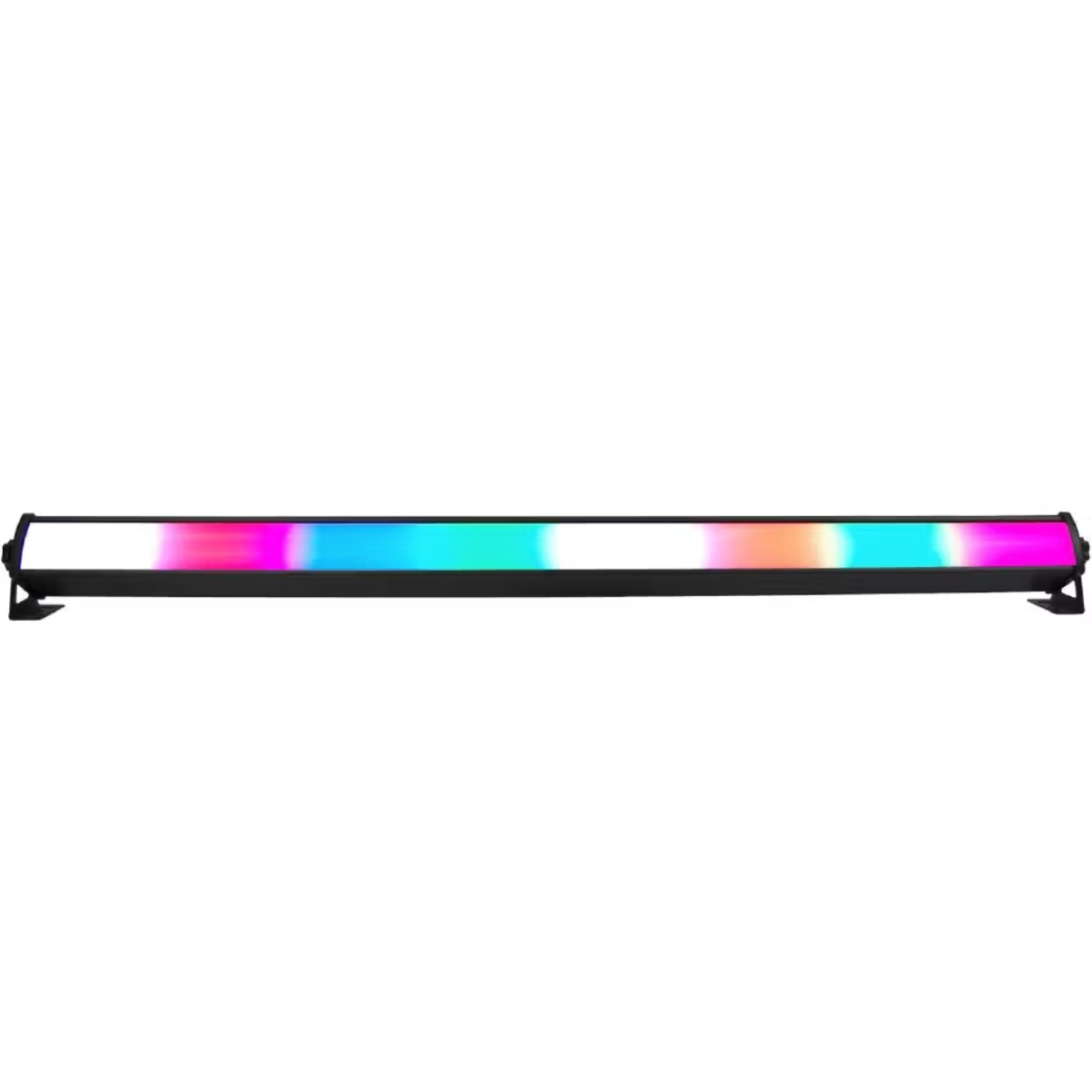

Event Lighting BAR224FXL is a versatile RGB LED effect bar built to create bold color washes, segmented chases, and energetic party lighting. With 224 SMD 5050 RGB LEDs, a wide 90° beam angle, and multiple control modes, it is a practical choice for DJs, venues, and event setups that need bright, animated lighting with flexible programming options.

Event Lighting BAR224FXL Competitive Differences

• 224x SMD 5050 RGB LEDs with 16-segment control for dynamic visual effects
• Multiple operating modes including DMX, auto, manual, sound active, and master/slave

Event Lighting BAR224FXL Description

The Event Lighting BAR224FXL is designed to deliver impactful lighting effects in a slim, easy-to-mount format. Its 224 RGB LEDs produce vibrant color output that works well for parties, stage backdrops, DJ booths, and venue accent lighting. The wide 90° beam angle helps spread light across a broader area, making it useful for both direct effects and wall wash-style looks.

For users who want more creative flexibility, the BAR224FXL includes 16-segment control, allowing you to build animated chases and patterned effects with greater precision. Multiple DMX channel options including 3, 5, 8, 24, 48, and 53 channels make it adaptable for both simple and advanced programming environments.

This fixture also supports auto, manual, sound active, and master/slave modes, making it suitable for a wide range of users from beginners to experienced lighting programmers. The high 10,000 Hz PWM rate helps support smooth dimming and stable visual performance, while 3-pin XLR input and output allows straightforward integration into existing DMX systems.

With a compact 1100 x 60 x 60 mm housing and a weight of 3.5 kg, the BAR224FXL is easy to transport, position, and install. It is a strong fit for mobile entertainment, permanent venue installs, and event production setups that need bright RGB effects in a lightweight bar fixture.

BAR224FXL Features

• 224x SMD 5050 RGB 3-in-1 LEDs
• 16-segment control for detailed visual effects
• 90° beam angle for broad coverage
• 10,000 Hz PWM for smooth lighting output
• DMX, auto, manual, sound active, and master/slave modes
• 3-pin XLR input and output
• Selectable DMX channels: 3 / 5 / 8 / 24 / 48 / 53
• Suitable for party lighting, DJ effects, and venue installations

BAR224FXL Specifications

• Light Source: 224x SMD 5050 RGB LEDs
• Beam Angle: 90°
• PWM: 10,000 Hz
• Operation Modes: DMX, auto, manual, sound active, master/slave
• Control Interface: 3-pin XLR in/out
• DMX Channels: 3 / 5 / 8 / 24 / 48 / 53
• Input Voltage: 110-240V AC, 50/60 Hz
• Dimensions: 43.3 x 2.4 x 2.4 in (1100 x 60 x 60 mm)
• Weight: 7.7 lb (3.5 kg)

What's In The Box

• Event Lighting BAR224FXL LED bar
• Power connection cable
