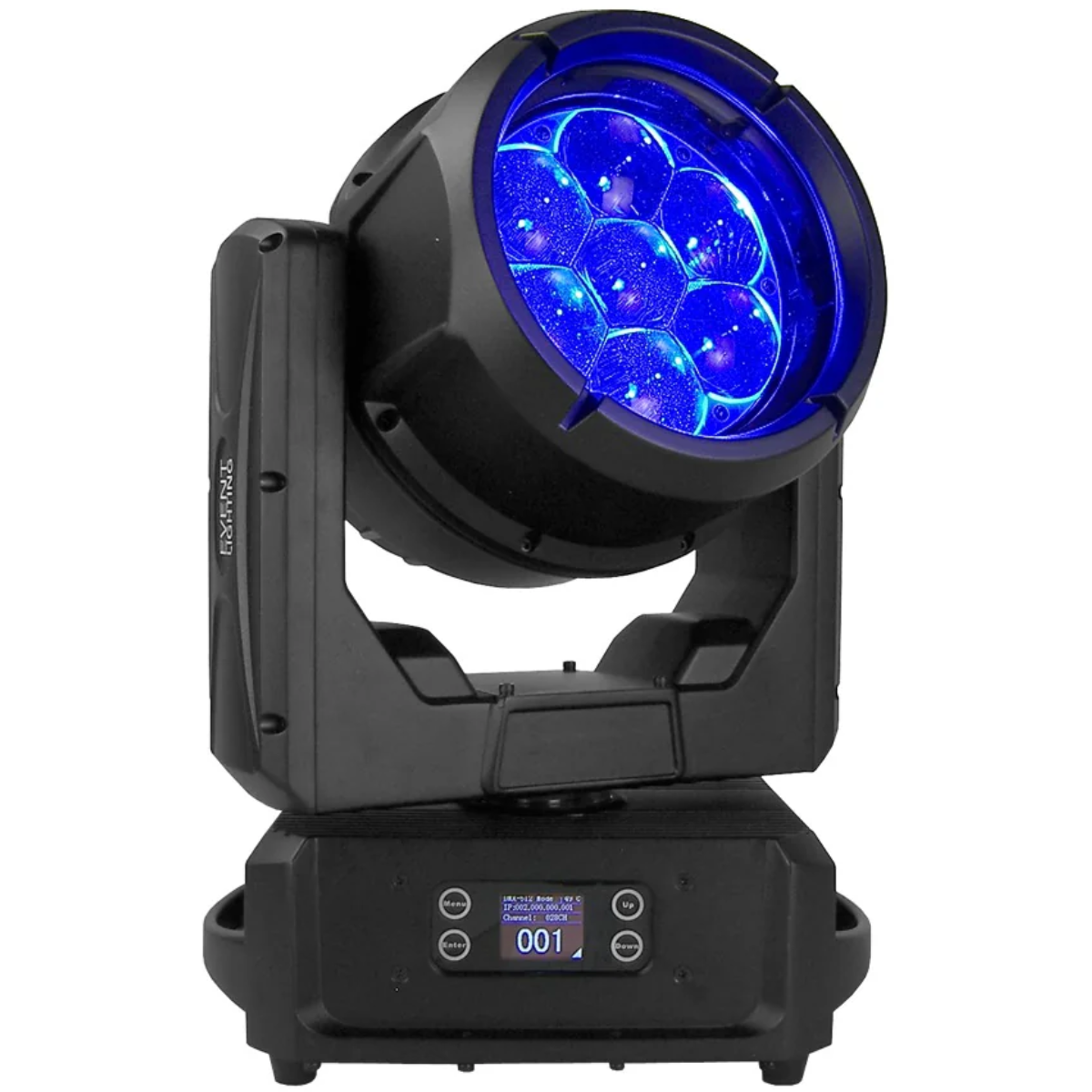

Event Lighting DELUGEM7X60WFX | IP65, 7x60W RGBW Zoom Wash | IP65 with Aura FX

Event Lighting DELUGEM7X60WFX  (Event Lighting DELUGEM-7X60-WFX)

IP65 Moving Head Zoom Wash

Event Lighting DELUGEM7X60WFX is a compact IP65 moving head zoom wash built for indoor or outdoor lighting applications that need bright RGBW color mixing, dynamic beam effects, and flexible control. Its 7 x 60W RGBW LED engine, Aura LEDs, motorized zoom, and rotating front lens make it suitable for stages, events, production environments, and architectural wash applications.

Event Lighting DELUGEM7X60WFX Competitive Differences

• 7 x 60W RGBW LEDs with 28 x 0.5W RGB Aura LEDs for layered wash and effect looks
• IP65-rated housing with rotating front lens for split beam effects and outdoor-ready performance

Event Lighting DELUGEM7X60WFX Description

The Event Lighting DELUGEM7X60WFX is designed as a versatile moving head wash fixture for productions that require power, compact size, and weather-resistant reliability. Its RGBW LED source provides rich color mixing, while the dedicated RGB Aura LEDs add a separate visual effects layer for eye-catching looks.

With motorized zoom from 3° to 45°, the DELUGEM7X60WFX can shift from tight aerial beams to wide wash coverage. Individual pixel control allows more detailed mapping and dynamic programming, while the rotating front lens creates a split beam effect for unique aerial and wash visuals.

The fixture supports DMX, RDM, ArtNet, and sACN control, with 5-pin DMX and RJ45 in/out connections for flexible integration into modern lighting rigs. Its full-color 180° reversible LCD control panel simplifies local setup, and software updates can be performed via RJ45 cable.

Built with ABS and steel in a matte black finish, the IP65-rated housing is made to handle demanding event environments. True1 power in/out connections, included Omega brackets, and compatibility with the DELM7X60CASE4 road case make it practical for touring, rentals, festivals, and permanent installs.

DELUGEM7X60WFX Features

• IP65 moving head zoom wash fixture
• 7 x 60W RGBW LED light source
• 28 x 0.5W RGB Aura LEDs
• Motorized zoom from 3° to 45°
• Rotating front lens for split beam effects
• Individual pixel control
• Aura LED effects
• 0–100% 16-bit dimming
• Strobe effect
• 540° pan and 205° tilt movement
• DMX, auto, sound active, and master/slave operation modes
• DMX, RDM, ArtNet, and sACN control protocols
• 5-pin DMX in/out and RJ45 in/out control interface
• Full-color 180° reversible LCD control panel
• Software upgrade via RJ45 cable
• IP65 True1 power in/out connection
• ABS and steel housing with matte black finish
• 2 Omega brackets included

DELUGEM7X60WFX Specifications

• Light Source: 7 x 60W RGBW LEDs; 28 x 0.5W RGB LEDs
• Beam Angle: 3°–45°
• Output: 141,641 lux @ 2 m (3°); 2,922 lux @ 2 m (32°)
• LED Lifespan: 50,000 hours
• Dimming: 0–100%, 16-bit
• Pixel Control: Yes
• Aura LED Effects: RGB LEDs
• Strobe: Yes
• Zoom: Motorized, 3°–45°
• Pan: 540°
• Tilt: 205°
• Input Voltage: 100–240V AC, 50/60 Hz
• Maximum Power Consumption: 700W
• Power Connection: IP65 True1 In/Out
• Operation Modes: DMX, Auto, Sound Active, Master/Slave
• Control Protocols: DMX, RDM, ArtNet, sACN
• DMX Channels: 28 / 49 / 105 / 127
• Control Interface: 5-Pin DMX In/Out, RJ45 In/Out
• Display: Full-Color 180° Reversible LCD Control Panel
• Software Upgrade: Via RJ45 Cable
• Housing Materials: ABS and Steel, Matte Black Finish
• IP Rating: IP65
• Dimensions: 12.2 x 8.3 x 18.2 in (310 x 210 x 463 mm)
• Net Weight: 26.5 lb (12 kg)
• Compatible Road Case: DELM7X60CASE4

What's In The Box

• Event Lighting DELUGEM7X60WFX Moving Head
• 2 x Omega brackets
