Event Lighting PAR12X4UVL | 12 x 4W UV LEDs | Fanless 40° Indoor UV Par

Event Lighting PAR12X4UVL  (Event Lighting PAR-12X4-UVL)

Indoor UV LED Par Light

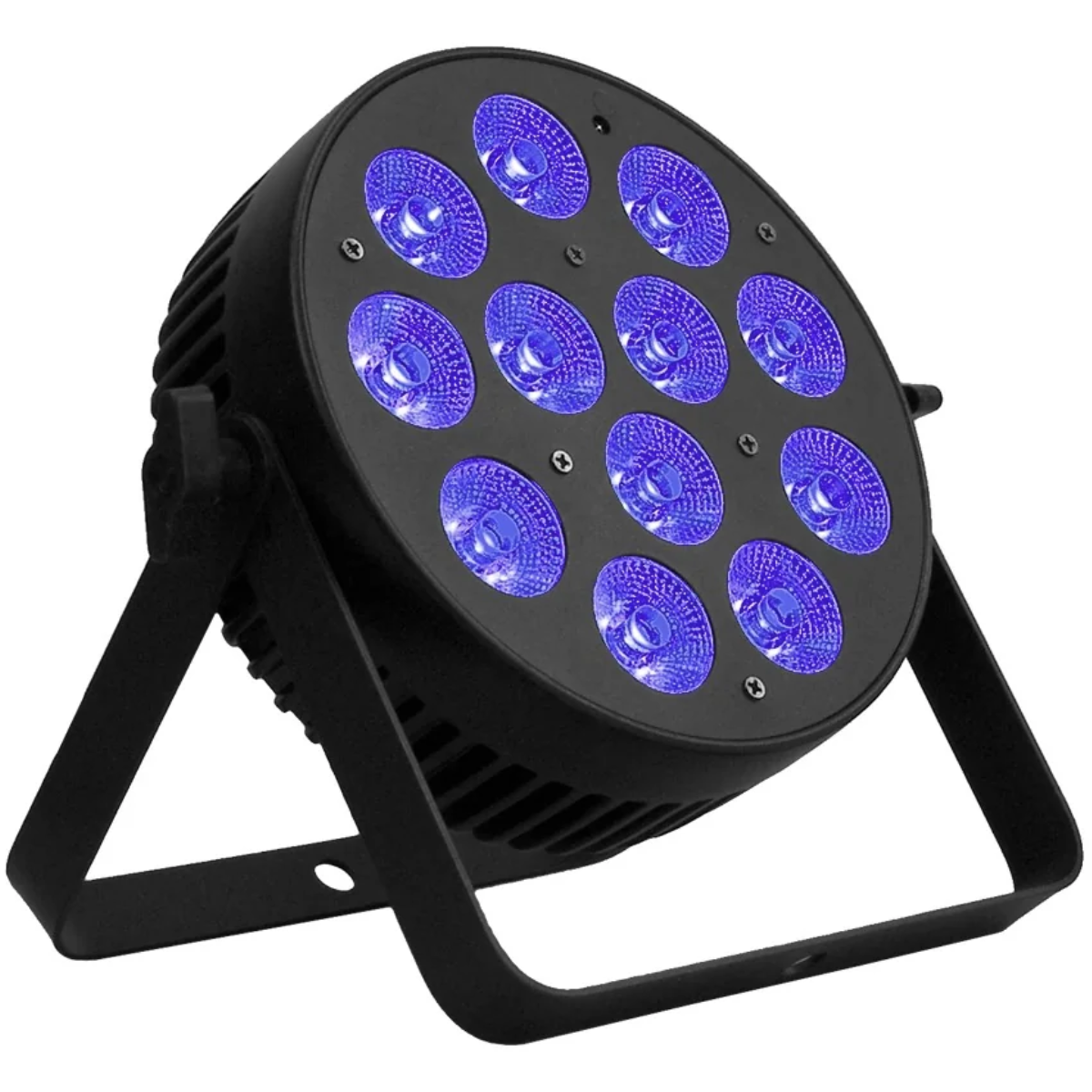

The Event Lighting PAR12X4UVL is a dedicated indoor UV par light built around 12 x 4W UV LEDs for creating ultraviolet lighting effects in parties, venues, DJ setups, and entertainment spaces. Its compact die-cast aluminium housing and fanless cooling provide quiet operation, while a 40° beam angle delivers broad UV coverage.

Event Lighting PAR12X4UVL Competitive Differences

• 12 x 4W dedicated UV LEDs provide a powerful ultraviolet lighting effect
• Fanless cooling allows quiet operation without cooling-fan noise
• 20,000Hz PWM supports smooth, flicker-conscious LED operation
• 40° beam angle provides broad coverage for indoor UV applications
• DMX512 control plus manual, auto, sound active, and master/slave operation
• IEC power input and output support convenient power linking

Event Lighting PAR12X4UVL Description

The Event Lighting PAR12X4UVL combines a dedicated UV light source with a compact, durable fixture design. Its 12 UV LEDs are rated at 4W each, while the die-cast aluminium housing provides a sturdy enclosure with a matte black finish suitable for professional entertainment environments.

A 40° beam angle makes the fixture suitable for washing wider areas with ultraviolet light rather than producing a narrow beam. Dimming from 0–100% and an adjustable 1–20Hz strobe provide additional control over the UV effect.

For programmed lighting systems, the PAR12X4UVL supports DMX512 with selectable 1- or 2-channel operation through 3-pin XLR input and output connections. It can also operate independently using manual, automatic, sound active, or master/slave modes, with settings accessed through the integrated 4-button, 4-digit LED control panel.

The fanless cooling system keeps operation quiet, making the fixture useful for DJs, parties, entertainment venues, stages, and other indoor applications where dedicated UV illumination is required. Universal 100–240V AC input and IEC power input/output connections simplify integration into a variety of lighting setups.

PAR12X4UVL Features

• 12 x 4W UV LEDs
• Dedicated indoor ultraviolet lighting fixture
• 40° beam angle
• 20,000Hz PWM frequency
• 50,000-hour rated LED lifespan
• 0–100% dimming
• 1–20Hz strobe
• DMX512 control
• Selectable 1- or 2-channel DMX operation
• DMX, manual, auto, sound active, and master/slave modes
• 3-pin XLR DMX input and output
• 4-button, 4-digit LED control panel
• Fanless cooling
• Die-cast aluminium housing with matte black finish
• IEC power input and output
• IEC piggyback cable included

PAR12X4UVL Specifications

• Light Source: 12 x 4W UV LEDs
• Beam Angle: 40°
• PWM: 20,000Hz
• LED Lifespan: 50,000 hours
• Dimming: 0–100%
• Strobe: 1–20Hz
• Input Voltage: 100–240V AC, 50/60Hz
• Power Consumption: 50W
• Power Connection: IEC input/output
• Control Protocol: DMX512
• DMX Channels: 1 / 2
• Operation Modes: DMX, manual, auto, sound active, master/slave
• DMX Interface: 3-pin XLR input/output
• Display: 4-button, 4-digit LED control panel
• Housing Material: Die-cast aluminium
• Finish: Matte black
• Cooling: Fanless
• Dimensions: 8.7 x 8.3 x 2.4 in (221 x 212 x 62 mm)
• Net Weight: 4.08 lb (1.85 kg)

What's In The Box

• Event Lighting PAR12X4UVL UV par light
• IEC piggyback power cable
