RCF EVOX J9 White Package

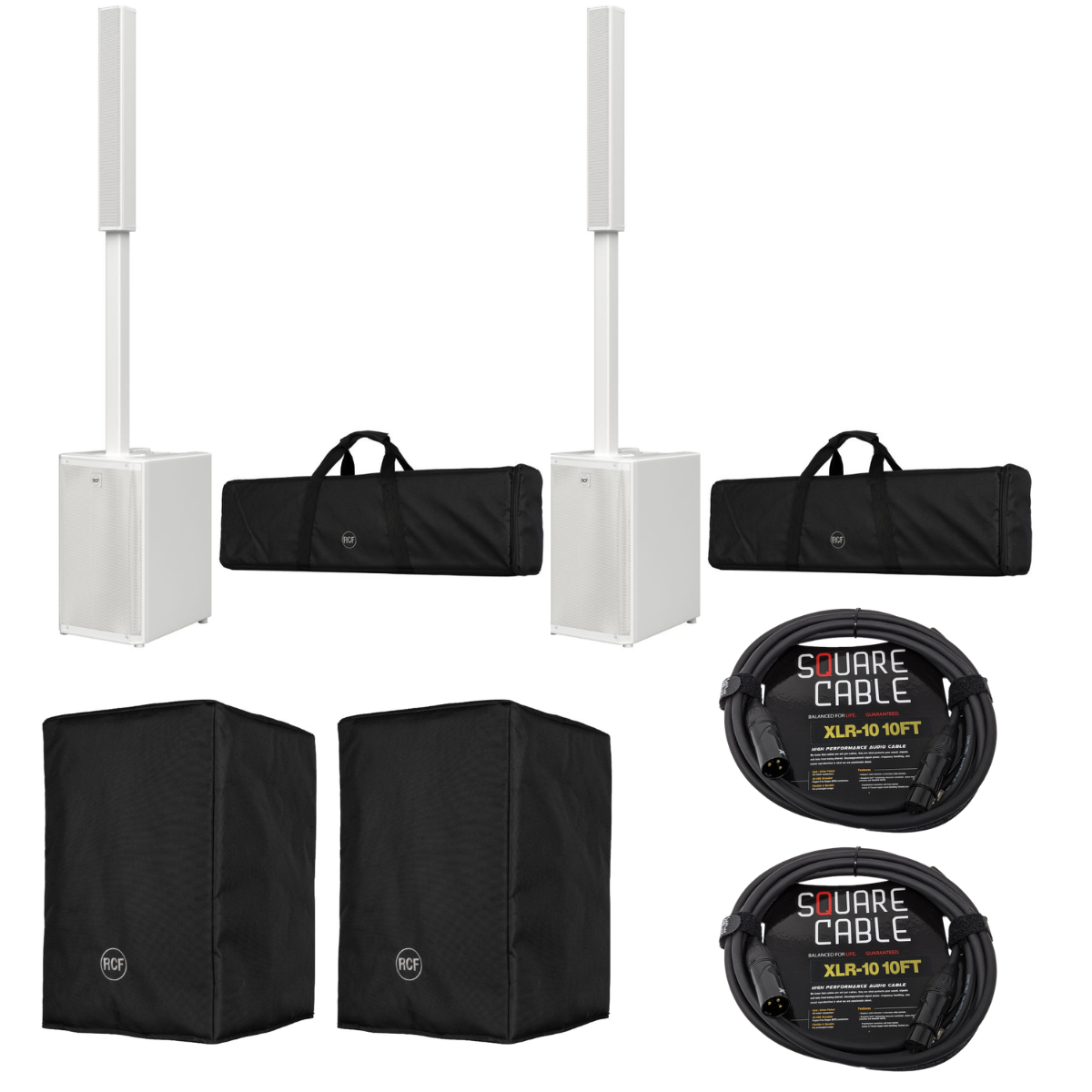

(RCF EVOX J9 White Package - Column Array with CVR60767 Covers)
Dual White Portable Column PA System Package
The RCF EVOX J9 W dual-system package combines two white active three-way portable column PA systems with two fitted protective covers and two 10ft balanced XLR cables. Designed for mobile DJs, bands, live performers, wedding production, corporate events, and other applications where powerful sound and a clean visual presentation matter, this package provides wide coverage, deep bass, quick setup, and essential transport protection.
RCF EVOX J9 W Competitive Differences
- Includes two white EVOX J9 W systems, two RCF CVR60767 protective covers, and two SquareCable XLR-10 10ft balanced XLR cables
- White RAL 9003 finish provides a clean appearance for weddings, corporate events, houses of worship, and visually sensitive installations
- Each EVOX J9 W delivers 2100W peak Class-D power and up to 130 dB max SPL
- True three-way design combines a 1.75” neodymium compression driver, six 3” neodymium full-range transducers, and a 12” high-power woofer
- RCF FiRPHASE and Bass Motion Control processing support clear, controlled, phase-coherent reproduction
- 120° x 40° True Resistive Waveguide coverage delivers broad, consistent sound throughout the listening area
RCF EVOX J9 W Description
The RCF EVOX J9 W is an active three-way portable column system designed to combine high output, detailed sound, and streamlined deployment in an elegant white enclosure. With two complete systems included, this package is well suited for stereo PA configurations and events requiring balanced coverage across a room, dance floor, ceremony space, or performance area.
Each system uses a 1.75” neodymium compression driver coupled to RCF's True Resistive Waveguide for consistent 120° horizontal and 40° vertical coverage. Six 3” neodymium full-range transducers reproduce articulate mids, while a 12” high-power woofer extends the response down to 40 Hz for deep, controlled low-frequency performance. Each system is capable of producing up to 130 dB max SPL.
A 2100W peak dual-channel Class-D amplifier powers each EVOX J9 W and works with onboard DSP, FiRPHASE, and Bass Motion Control processing. LINEAR/LIVE, CLUB, and VOICE presets provide quick response optimization for different applications, including live music, DJ playback, presentations, ceremonies, and speech-focused events. Thermal and RMS protection, soft limiting, and fanless convection cooling support reliable professional operation.
The white RAL 9003 PP composite cabinets provide a refined look that blends especially well into weddings, upscale event spaces, corporate environments, and houses of worship. Each EVOX J9 W includes an aluminum-alloy distance pole and padded transport bag for the column speaker. Two black RCF CVR60767 covers protect the bass cabinets during transport and storage, while the two included SquareCable XLR-10 cables provide 10ft balanced XLR-M to XLR-F signal connections.
Model Features
- Two RCF EVOX J9 W active three-way portable column systems
- White RAL 9003 finish
- 2100W peak Class-D amplifier per system
- 130 dB max SPL per system
- 1.75” neodymium compression driver with True Resistive Waveguide
- Six 3” neodymium full-range transducers per system
- 12” high-power woofer per system
- 120° horizontal x 40° vertical coverage
- Built-in DSP with LINEAR/LIVE, CLUB, and VOICE presets
- RCF FiRPHASE processing
- RCF Bass Motion Control processing
- Fanless convection cooling
- PP composite cabinets with steel grilles
- Quick-fit mounting system
- Aluminum-alloy distance pole included with each system
- Padded column transport bag included with each system
- Two RCF CVR60767 fitted protective covers included
- Two SquareCable XLR-10 10ft balanced XLR cables included
Model Specifications
- RCF EVOX J9 W Quantity: 2
- System Type: Active 3-way portable column PA system
- Color: White - RAL 9003
- Max SPL per System: 130 dB
- Power Output per System: 2100W Peak
- High-Frequency Power: 700W Peak
- Low-Frequency Power: 1400W Peak
- Frequency Response: 40 Hz - 20,000 Hz
- Crossover Frequencies: 200 Hz / 1800 Hz
- Horizontal Coverage: 120°
- Vertical Coverage: 40°
- Compression Driver: 1 x 0.75” exit neodymium driver with 1.75” voice coil per system
- Full-Range Drivers: 6 x 3” neodymium drivers with 1” voice coils per system
- Woofer: 1 x 12” high-power woofer with 2.5” voice coil per system
- Input Signal: Balanced / Unbalanced
- Input Connectors: Combo XLR/Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Controls: Volume, LINEAR/LIVE, CLUB, VOICE presets
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Cooling: Convection
- Cabinet Material: PP Composite
- Grille: Steel
- Mounting: Quick-fit socket
- Dimensions per System (H x W x D): 81.89 x 13.78 x 18.21 in (2080.1 x 350 x 462.6 mm)
- Weight per System: 57.32 lb (26 kg)
- RCF CVR60767 Cover Quantity: 2
- RCF CVR60767 Compatibility: EVOX J9, EVOX JMIX9, EVOX J11
- RCF CVR60767 Color: Black
- RCF CVR60767 Dimensions per Cover (H x W x D): 23.23 x 16.14 x 19.29 in (590 x 410 x 490 mm)
- RCF CVR60767 Weight per Cover: 2.65 lb (1.2 kg)
- SquareCable XLR-10 Quantity: 2
- Cable Type: Balanced XLR-M to XLR-F audio cable
- Cable Length: 10 ft
- Cable Conductors: 20 AWG x 2 oxygen-free copper
- Cable Shielding: 93% braided OFC copper compact shield
- Cable Contacts: Gold-plated
What's In The Box
- (2) RCF EVOX J9 W white active three-way portable column PA systems
- (2) Padded column transport bags
- (2) Aluminum-alloy distance poles
- (2) RCF CVR60767 black protective covers
- (2) SquareCable XLR-10 10ft XLR-M to XLR-F balanced audio cables
- (2) Power cables
- Documentation
