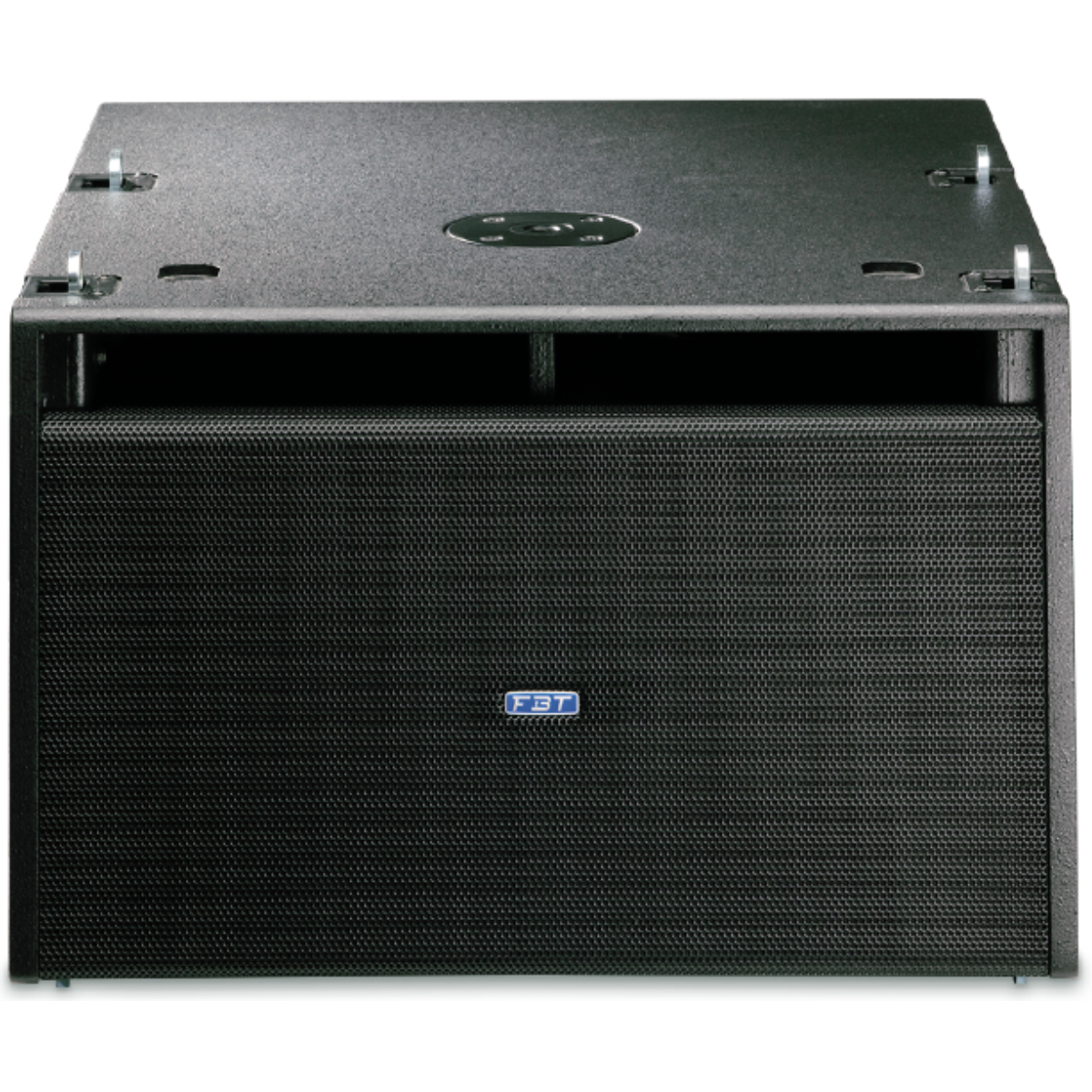

FBT MITUS 212 FSA | Dual 12in - 138dB Peak | Flyable Active Subwoofer

FBT MITUS 212FSA  (FBT MITUS-212-FSA)

Flyable Active Subwoofer

FBT MITUS 212 FSA is a compact active subwoofer designed to extend low-frequency output in MITUS modular sound systems. With dual 12-inch neodymium woofers, 1200W RMS Class D amplification, onboard DSP, and integrated suspension hardware, it is built for flown arrays, ground-stacked systems, touring rigs, and permanent installations.

FBT MITUS 212 FSA Competitive Differences

• Dual 12-inch B&C neodymium woofers with 3-inch voice coils for fast, punchy low-frequency response
• 1200W RMS Class D amplifier with 2400W peak output for high-output subwoofer performance
• DSP with 8 presets for cardioid, ground-stacked, and infra configurations
• Integrated flyware for suspended use with MITUS 206LA modular line array systems

FBT MITUS 212 FSA Description

The FBT MITUS 212 FSA is engineered for professional sound reinforcement applications where compact size, high SPL, and flexible deployment are essential. Its vented band-pass design uses two 12-inch B&C neodymium high-excursion woofers with 3-inch voice coils to deliver responsive low-frequency output down to 45 Hz.

A 1200W RMS Class D amplifier powers the system, while onboard DSP provides 8 presets for adapting the subwoofer to cardioid, ground, and infra configurations. The rear control panel includes XLR input and link connections, volume control, preset selection, delay adjustment, phase control from 0° to 180°, and a ground lift switch.

Built from 15 mm birch plywood with a scratch-resistant finish, the MITUS 212 FSA is made for demanding touring, installation, and live event environments. Its integrated suspension hardware allows it to be flown with MITUS 206LA modules, while its compact footprint also makes it useful in ground-stacked PA systems.

Ideal for theaters, clubs, houses of worship, concert halls, conference rooms, touring productions, bands, orchestras, and larger live sound systems, the FBT MITUS 212 FSA adds powerful and controlled bass extension to modular MITUS arrays.

MITUS 212 FSA Features

• Compact active flyable subwoofer for MITUS modular systems
• Vented band-pass configuration
• Dual 12-inch B&C neodymium high-excursion woofers
• 3-inch voice coils for strong transient response
• 1200W RMS Class D amplifier
• 2400W peak amplifier output
• Maximum peak SPL of 138 dB half-space
• Onboard DSP with 8 presets
• Cardioid, ground, and infra configuration support
• Delay adjustment for array alignment
• Phase control from 0° to 180°
• Ground lift switch
• XLR input with loop output
• Integrated suspension hardware for flown configurations
• Designed for use with MITUS 206LA line array modules
• 15 mm birch plywood enclosure with scratch-resistant black finish
• Omnidirectional dispersion

MITUS 212 FSA Specifications

• Configuration: 1-way vented band-pass active subwoofer
• Low Frequency Woofer: 2 x 12 in B&C neodymium woofers with 3 in voice coils
• Built-In Amplifier: 1200W RMS
• Peak Amplifier Power: 2400W
• Frequency Response: 45 Hz - 120 Hz (-6 dB)
• Maximum SPL: 134 dB continuous / 138 dB peak half-space
• Dispersion: Omnidirectional
• Input Impedance: 22 kohm
• Crossover Frequency: Preset dependent
• Input Connector: XLR with loop
• AC Power Requirements: 640 VA
• Power Cord: 16.4 ft (5 m)
• Enclosure Material: 15 mm birch plywood
• Dimensions: 22.6 x 16.5 x 26 in (574 x 420 x 660 mm)
• Weight: 80.5 lb (37 kg)
• Transport Dimensions: 30.7 x 20.5 x 28 in (785 x 520 x 710 mm)
• Transport Weight: 90.4 lb (41.5 kg)
• Product Code: 31709
