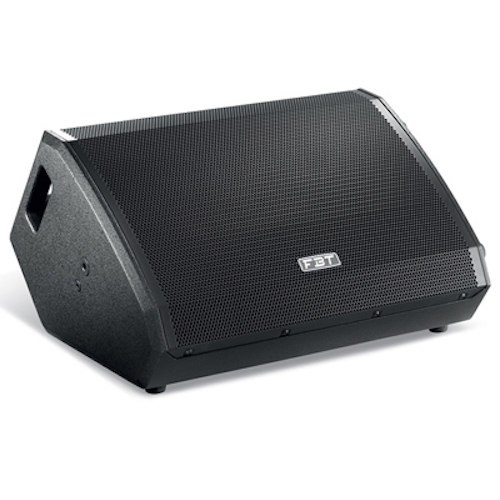

FBT Ventis112MA
(FBT Ventis 112ma)
12-Inch Powered Coaxial Stage Monitor
The FBT Ventis 112MA is a 12-inch powered coaxial stage monitor designed for live performers, musicians, mobile DJs, and professional sound reinforcement applications. Featuring a custom 12-inch woofer with a 2.5-inch voice coil, a B&C high-frequency compression driver with a 1.7-inch voice coil, and 900W RMS bi-amplification, it delivers up to 132dB peak SPL with consistent 90° conical coverage. Its built-in DSP provides six factory presets, two customizable EQ presets, adjustable delay, and multiple limiter settings for flexible sound optimization. With a durable 15mm birch plywood enclosure, integrated carrying handles, and a 35mm pole-mount socket, the Ventis 112MA is suitable for floor monitoring, DJ booths, touring productions, and portable PA applications.
FBT Ventis 112MA Competitive Differences
- Coaxial 12-Inch Speaker Design: Combines a custom 12-inch woofer and B&C compression driver in a coaxial configuration for consistent sound reproduction and controlled dispersion.
- 900W RMS Bi-Amplification: Features dedicated 700W low-frequency and 200W high-frequency amplifier sections, delivering a combined 900W RMS and 1800W peak amplifier output.
- 132dB Peak SPL: Delivers powerful sound output with a rated 126dB continuous and 132dB peak SPL for demanding stage monitoring and live sound applications.
- 90° Conical Dispersion: Provides consistent horizontal and vertical coverage, helping performers hear their monitor mix across a wider listening area.
- Advanced DSP Processing: Includes six factory presets: Original, Hi-Cut/Drumfill, Lo-Cut/Twin, FOH, Vocal, and Touring.
- Two Customizable DSP Presets: Provides two user-programmable memory slots with five adjustable EQ filters per preset for detailed speaker tuning.
- Adjustable Digital Delay: Supports delay settings from 0 to 10 meters for time alignment with other loudspeakers in distributed sound systems.
- Three Limiter Modes: MIN, NORMAL, and MAX limiter settings allow users to select the desired balance between output level and signal protection.
- Flexible Audio Connectivity: Features a balanced XLR/TRS combo input, stereo RCA input, and configurable XLR output for connection to additional audio equipment.
- Integrated DSP Display: Rear-panel display and push-to-select rotary encoder provide direct access to presets, EQ, input sensitivity, delay, and system settings.
- Durable Birch Plywood Cabinet: Constructed from 15mm birch plywood with internal reinforcement and a scratch-resistant black finish for dependable stage and touring use.
- Multiple Installation Options: Includes a 35mm pole-mount socket and mounting points for an optional wall bracket, allowing use as a stage monitor, FOH speaker, or fixed-installation loudspeaker.
FBT Ventis 112MA Description
The FBT Ventis 112MA delivers professional stage monitoring performance through a two-way, bi-amplified coaxial speaker design. Its custom 12-inch woofer features a 2.5-inch voice coil for controlled low-frequency reproduction, while the coaxially mounted B&C compression driver uses a 1-inch exit throat and 1.7-inch voice coil for clear high-frequency response. The integrated amplifier provides 700W RMS to the low-frequency section and 200W RMS to the high-frequency section, delivering 900W RMS combined power with up to 132dB peak SPL. Its 55Hz-20kHz frequency response and 90° conical dispersion make it suitable for vocals, instruments, DJ monitoring, and professional live sound reinforcement.
The Ventis 112MA incorporates a powerful onboard DSP system designed to optimize speaker performance across different applications. Six factory presets provide quick access to settings for standard monitoring, drum fills, paired monitor configurations, front-of-house sound, vocals, and touring use. Two additional user-programmable presets allow detailed sound customization through five adjustable EQ filters per memory slot. Further processing includes a 3-band equalizer, adjustable high-pass filtering, configurable limiter modes, and digital delay from 0 to 10 meters. These controls allow sound engineers and performers to adapt the monitor to stage acoustics, personal monitoring preferences, and different speaker placement requirements.
Designed for flexible audio connectivity, the Ventis 112MA features a balanced XLR/TRS combo input with selectable microphone or line sensitivity, along with a stereo RCA input for connecting external playback sources. Separate input level controls allow adjustment of connected sources, while the main digital volume encoder provides access to the DSP menu. The XLR output can be configured to pass the original input signal or send a combined output mix to another powered speaker. A rear-panel display provides access to system settings, preset selection, limiter configuration, equalization, and operating information, simplifying setup and troubleshooting during live performances.
The Ventis 112MA features a durable 15mm birch plywood cabinet with internal reinforcement and a scratch- and scuff-resistant black finish. Its bass-reflex enclosure is designed for stage monitoring, while the coaxial driver arrangement maintains consistent sound distribution across the listening area. Two integrated wooden carrying handles simplify handling and transportation, and the built-in 35mm pole-mount socket allows the speaker to be positioned vertically for portable PA or front-of-house applications. An optional mounting bracket supports wall installation, making the speaker suitable for permanent sound reinforcement systems in clubs, theaters, auditoriums, and houses of worship.
With its combination of high-output bi-amplification, coaxial transducers, advanced DSP processing, and flexible mounting options, the Ventis 112MA provides a practical solution for professional musicians, live sound engineers, touring companies, DJs, and installation technicians. Whether used as a dedicated floor wedge, DJ booth monitor, side-fill speaker, or compact PA loudspeaker, it delivers powerful sound reproduction and adaptable system control for demanding entertainment environments.
Ventis 112MA Features
- 12-inch powered coaxial stage monitor for professional live sound applications
- Two-way bi-amplified bass-reflex design
- Custom 12-inch (320mm) low-frequency woofer with 2.5-inch (64mm) voice coil
- B&C high-frequency compression driver with 1-inch (25mm) exit throat
- 1.7-inch (44mm) high-frequency driver voice coil
- 900W RMS total amplifier power
- 700W RMS low-frequency amplifier section
- 200W RMS high-frequency amplifier section
- 1400W peak low-frequency amplifier output
- 400W peak high-frequency amplifier output
- 1800W combined peak amplifier power
- 126dB continuous and 132dB peak maximum SPL
- 55Hz-20kHz frequency response (-6dB)
- 90° conical sound dispersion
- Built-in digital signal processor for advanced speaker configuration
- Six factory DSP presets: Original, Hi-Cut/Drumfill, Lo-Cut/Twin, FOH, Vocal, and Touring
- Two user-programmable DSP memory slots
- Five adjustable EQ filters per custom DSP preset
- 3-band EQ with low, mid, and high-frequency adjustment
- Adjustable high-pass filter for speaker optimization
- Digital delay adjustable from 0 to 10 meters
- Three selectable limiter modes: MIN, NORMAL, and MAX
- Microphone and line input sensitivity selection
- Rear-panel DSP display with push-to-select rotary encoder
- Independent microphone/line and stereo input level controls
- Balanced XLR/TRS combo input for microphones and line-level sources
- Stereo RCA input for auxiliary playback devices
- XLR output with selectable link or mix routing
- System monitoring and protection status through DSP interface
- Durable 15mm birch plywood enclosure with internal reinforcement
- Scratch- and scuff-resistant black cabinet finish
- Two integrated wooden carrying handles
- 35mm (1.38-inch) speaker stand socket
- Compatible with optional wall-mounting bracket
- Suitable for stage monitoring, DJ booths, portable PA, side-fill, and FOH applications
- Designed for touring productions, clubs, theaters, auditoriums, and houses of worship
Ventis 112MA Specifications
- Product Type: Powered Coaxial Stage Monitor
- Series: Ventis
- Configuration: 2-Way Active, Bi-Amplified Bass Reflex
- Low-Frequency Driver: 12-Inch (320mm) Custom Woofer
- Low-Frequency Voice Coil: 2.5 Inches (64mm)
- High-Frequency Driver: B&C Compression Driver
- High-Frequency Exit Throat: 1 Inch (25mm)
- High-Frequency Voice Coil: 1.7 Inches (44mm)
- Frequency Response (-6dB): 55Hz-20kHz
- Maximum Continuous SPL: 126dB
- Maximum Peak SPL: 132dB
- Dispersion: 90° Conical (Horizontal and Vertical)
- Amplifier Configuration: Bi-Amplified
- Total Amplifier Power: 900W RMS / 1800W Peak
- Low-Frequency Amplifier: 700W RMS / 1400W Peak
- High-Frequency Amplifier: 200W RMS / 400W Peak
- Built-In DSP: Yes
- Factory DSP Presets: 6 (Original, Hi-Cut/Drumfill, Lo-Cut/Twin, FOH, Vocal, Touring)
- User-Programmable DSP Presets: 2
- Custom EQ: 5 Adjustable Filters Per User Preset
- Additional Equalization: 3-Band Low/Mid/High EQ
- High-Pass Filter: Adjustable
- Delay Range: 0-10m (0-32.8 ft)
- Delay Adjustment: 0.25m Increments
- Limiter Modes: MIN, NORMAL, MAX
- Input Impedance: 22 kOhms
- Microphone/Line Input: 1 x Balanced XLR/TRS Combo
- Auxiliary Input: 1 x Stereo RCA (L/R)
- Audio Output: 1 x XLR
- Output Routing: Input Link or Mixed Output
- Input Sensitivity: Selectable Mic/Line
- Control Interface: DSP Display and Push-to-Select Rotary Encoder
- Power Source: AC Mains
- AC Power Requirement: 640VA (Current Manufacturer Product Listing)
- Power Connection: Neutrik powerCON TRUE1 Input/Output
- Power Cord Length: 16.4 ft (5m)
- Enclosure Material: 15mm (0.59-Inch) Birch Plywood
- Cabinet Finish: Scratch-Resistant Black
- Carrying Handles: 2 Integrated Wooden Handles
- Pole Mount: 35mm (1.38-Inch) Socket
- Optional Mounting: Wall-Mount Bracket (Sold Separately)
- Dimensions (W x H x D): 21.96 x 12.24 x 17.80 in (558 x 311 x 452 mm)
- Net Weight: 40.8 lb (18.5 kg)
- Transport Dimensions: 19.09 x 24.61 x 14.76 in (485 x 625 x 375 mm)
- Transport Weight: 47.4 lb (21.5 kg)
- Manufacturer Product Code: 41214
What's In The Box
- FBT Ventis 112MA Powered Coaxial Stage Monitor
- 5m (16.4 ft) AC Power Cord
