Fender Quantum HD 2 | 20x24 USB-C Interface | 32-bit 192kHz with MAX-HD Preamps

Fender Quantum HD 2  (Fender Quantum-HD-2)

USB Audio Interface

Fender Quantum HD 2 is a professional-grade USB-C audio interface designed for multi-channel recording, production, and streaming applications. With 20x24 I/O, next-generation MAX-HD mic preamps, and high-resolution 32-bit / 192 kHz conversion, it provides the clarity, headroom, and flexibility required for modern studios and demanding creators.

Fender Quantum HD 2 Competitive Differences

• 20x24 I/O with 32-bit / 192 kHz converters and ultra-low-latency performance
• MAX-HD mic preamps with Auto Gain, DSP monitoring, and re-amp outputs

Fender Quantum HD 2 Description

The Fender Quantum HD 2 is engineered for musicians, producers, and project studios that require detailed audio capture and flexible routing. Its 20x24 input/output configuration supports complex recording setups, while expanded digital connectivity—including 16 channels of ADAT and S/PDIF I/O—makes it easy to integrate external gear and expand your system.

At the core of the interface are next-generation MAX-HD mic preamps, delivering up to 75 dB of gain with ultra-low noise performance. These preamps are designed to capture vocals and instruments with precision and clarity, while front-facing Fender instrument inputs are optimized specifically for guitar and bass recording. The built-in Auto Gain function simplifies setup by quickly setting optimal input levels.

Designed for modern workflows, the Quantum HD 2 includes a DSP monitor mixer and loopback functionality, making it ideal for streaming, podcasting, and content creation. Re-amp outputs allow users to send recorded tracks back through amplifiers and effects for creative tone shaping, adding versatility for music production and sound design.

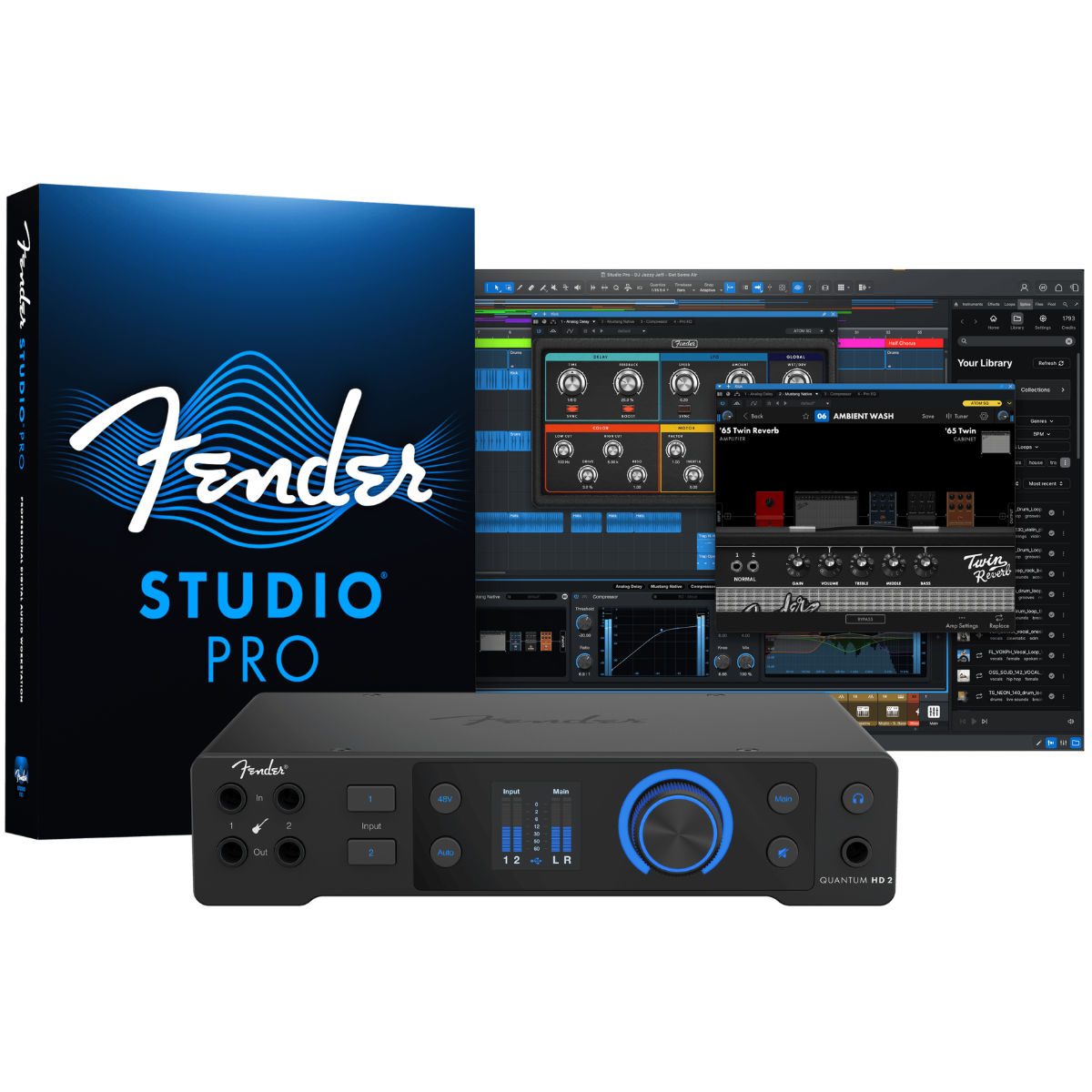

Control over preamps, phantom power, and routing is available via Fender Studio Pro or Universal Control software, offering intuitive system management. With professional-grade converters delivering up to 124 dB dynamic range and support for up to 192 kHz sample rates, this interface ensures accurate and transparent audio performance for recording, mixing, and mastering applications.

Quantum HD 2 Features

• 20x24 USB-C audio interface for advanced recording setups
• 32-bit / 192 kHz converters with high dynamic range
• MAX-HD mic preamps with up to 75 dB gain
• Auto Gain function for quick level setting
• 16-channel ADAT input expansion and S/PDIF I/O
• Front-facing instrument inputs for guitar and bass
• DSP monitor mixer with loopback for streaming
• Re-amp outputs for creative signal routing
• MIDI I/O via 5-pin DIN connections
• Software control via Fender Studio Pro and Universal Control
• USB-C connectivity for modern systems

Quantum HD 2 Specifications

• Bit Depth: 32-bit
• Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
• Mic Input: XLR/TRS Combo, Balanced
• Mic Frequency Response: 20 Hz – 20 kHz (±0.1 dB)
• Mic Input Impedance: 1600 Ω
• Mic Dynamic Range: 116 dB (A-weighted)
• EIN: -130 dBu
• THD+N (Mic): 0.002%
• Mic Gain Range: Up to 75 dB
• Max Mic Input Level: +18 dBu
• Phantom Power: +48 VDC
• Line Input Impedance: 10 kΩ
• Line Dynamic Range: 118 dB
• Instrument Dynamic Range: 111 dB
• Max Instrument Input Level: +21 dBu
• Main Outputs: 1/4" TRS
• Headphone Output: 1/4" TRS
• Headphone Dynamic Range: 118 dB
• MIDI I/O: 5-pin DIN
• Digital I/O: ADAT (16 channels), S/PDIF
• Connectivity: USB-C
• System Dynamic Range: 124 dB
• Dimensions: 8.5 x 7.5 x 1.9 in (216 x 191 x 48.3 mm)
• Weight: 2.9 lb (1.3 kg)

What's In The Box

• Fender Quantum HD 2 audio interface
• USB-C cable
