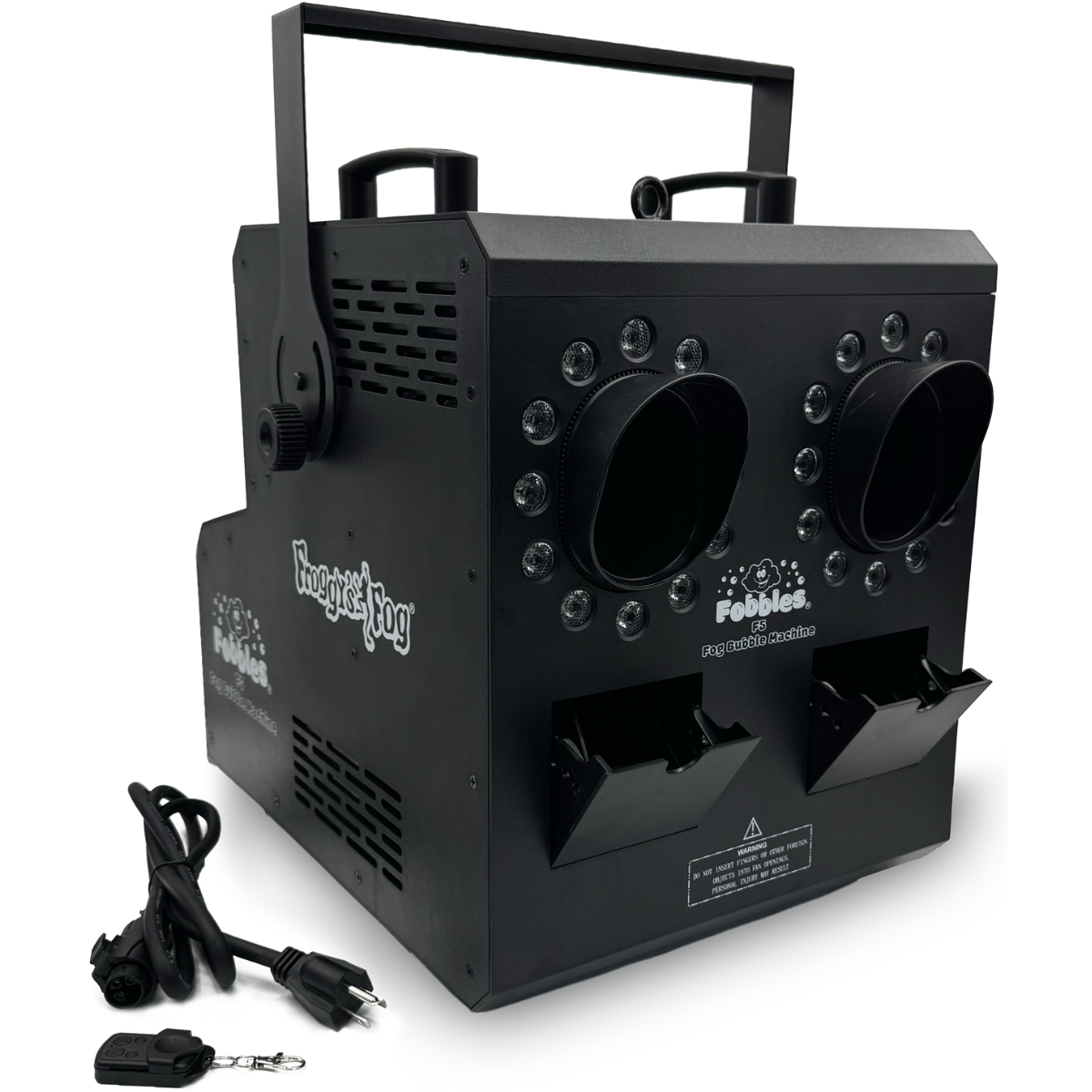

Froggy's Fog Fobbles F5
(Froggys Fog Fobbles-F5)
Fog and Bubble Effects Machine
The Froggy's Fog Fobbles F5 is a 4-in-1 special effects machine capable of producing fog, haze, standard bubbles, and fog-filled bubbles from a single unit. With 1100W power, up to 10,000 CFM output, integrated RGBW lighting, DMX control, and variable effect settings, it provides a versatile solution for live events, entertainment venues, celebrations, and stage productions.
Froggy's Fog Fobbles F5 Competitive Differences
- Four effects in one machine: fog, haze, standard bubbles, and fog-filled bubbles.
- Double-wheel bubble system produces a high volume of bubbles for larger visual effects.
- 24 x 4W RGBW LEDs illuminate bubbles and atmospheric effects with controllable color.
- Up to 10,000 CFM output provides substantial atmospheric coverage.
- 11-channel DMX control allows integration with professional lighting and effects systems.
- Variable 0-100% control provides precise adjustment of multiple effect parameters.
- Full-color digital display and wireless fob provide convenient local and remote operation.
- Approximately 2-minute warm-up time reduces setup time before operation.
Froggy's Fog Fobbles F5 Description
The Froggy's Fog Fobbles F5 combines four commonly used atmospheric effects into one compact machine. Operators can create conventional fog, a lighter haze effect, regular bubbles, or signature fog-filled bubbles that release a visible puff of fog when they burst. Independent effect control makes the F5 useful for productions that require multiple looks without carrying separate machines.
A double-wheel bubble system works alongside the fog generator to produce high-volume bubble effects, while 24 integrated 4W RGBW LEDs add color directly to the output. Output parameters are adjustable from 0-100%, allowing users to fine-tune the bubble system, fog or haze output, booster fan, and lighting effects to suit different venues and applications.
The F5 supports 11-channel DMX512-A control through 3-pin and 5-pin DMX connections, making it easy to synchronize with lighting consoles and other production equipment. A full-color digital control display provides onboard access to settings, while the included wireless fob adds convenient remote operation. Continuous and timer-controlled output modes provide additional flexibility for unattended or programmed effects.
The ABS housing can be used standing or suspended with the included hanging bracket. Separate 0.32-gallon fog and bubble fluid reservoirs keep the two fluid systems independent, while an IP65-rated push-lock AC power connection provides a secure electrical connection. For maximum output and efficiency, Froggy's Fog recommends outdoor operation.
Fobbles F5 Features
- 4-in-1 fog, haze, bubble, and fog-filled bubble effects
- 1100W power consumption at full output
- Double-wheel bubble system
- Maximum output of 10,000 CFM
- Approximately 30 ft maximum output height
- Approximately 2-minute warm-up time
- Continuous output capability
- 24 x 4W RGBW LEDs
- Independent RGBW color control through DMX
- 11-channel DMX operation
- ANSI E1.11 / USITT DMX512-A compliant
- 3-pin and 5-pin DMX connections
- Full-color digital control display
- Wireless remote control
- Continuous or timer-controlled output modes
- Variable 0-100% output control
- Adjustable fog and haze output
- Adjustable bubble output
- Adjustable booster fan speed
- Integrated LED dimmer, strobe, and color controls
- Separate fog and bubble fluid reservoirs
- Standing or hanging installation
- ABS housing
- Black finish
- IP65-rated push-lock AC power connection
Fobbles F5 Specifications
- Effects: Fog, haze, bubbles, fog-filled bubbles
- Power Consumption: 1100W at 100%
- US Input Voltage: 120V AC, 60 Hz
- Main Fuse: 15A, 250V
- Warm-Up Time: Approximately 2 minutes
- Maximum Output: 10,000 CFM
- Maximum Output Height: Approximately 30 ft (9.1 m)
- Continuous Output: Yes
- LED System: 24 x 4W RGBW
- DMX Channels: 11
- DMX Standard: ANSI E1.11 / USITT DMX512-A
- DMX Connections: 3-pin and 5-pin
- Control Options: DMX, onboard digital display, wireless remote
- Control Modes: Continuous or timer-controlled output
- Variable Output: 0-100%
- Fog Fluid Reservoir: 0.32 gal (1.21 L)
- Bubble Fluid Reservoir: 0.32 gal (1.21 L)
- AC Connection: IP65-rated push-lock connector
- Housing: ABS
- Color: Black
- Mounting: Standing or hanging
- Machine Dimensions: 15 x 12.2 x 17.3 in (381 x 310 x 439 mm)
- Net Weight: 28.3 lb (12.84 kg)
- Shipping Dimensions: 17.8 x 13.8 x 18.4 in (452 x 351 x 467 mm)
- Shipping Weight: 31 lb (14.06 kg)
- Manufacturer Warranty: 90-day limited warranty
What's In The Box
- Froggy's Fog Fobbles F5 effects machine
- Wireless fob
- Power cable
- Hanging bracket
- User manual
