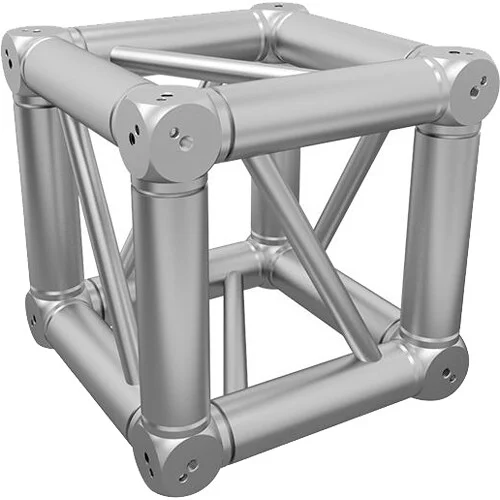

Global Truss DT-UJB-34P | 6-Way Junction Block for 11.41in Truss | Includes M12 Connecting Hardware

Global DT34P0144  (Global Truss DT UJB 34P)

The Global Truss DT-UJB-34P is a 6-way universal junction block for 11.41-inch-wide truss systems. Its EN AW-6082 T6 aluminum construction provides a durable connection point, and two sets of M12 connecting hardware are included.

6-Way Universal Truss Junction Block

The Global Truss DT-UJB-34P is a 6-way universal junction block designed for creating multi-directional truss connections. Its 11.41-inch overall width, reinforced aluminum construction, and included M12 connecting hardware make it useful for stage, event, exhibition, and structural truss installations.

Global Truss DT-UJB-34P Competitive Differences

• Six-way configuration supports multiple truss connection directions
• Constructed from EN AW-6082 T6 aluminum alloy
• Uses 1.96-inch outer-diameter main tubes with 0.11-inch walls
• Includes two sets of connecting hardware with M12 bolts
• Brushed aluminum finish matches professional truss systems

Global Truss DT-UJB-34P Description

The Global Truss DT-UJB-34P provides a central connection point for building multi-directional truss structures. Its six-way design supports flexible configurations for stage roofs, lighting grids, exhibition structures, and other temporary or permanent installations.

The junction block is manufactured from EN AW-6082 T6 aluminum alloy for strength and structural reliability. The main tubes measure 1.96 inches in outer diameter with a 0.11-inch wall thickness, while the diagonal braces measure 0.78 inches in outer diameter with the same 0.11-inch wall thickness.

With an overall truss width of 11.41 inches and a unit weight of 20 pounds, the DT-UJB-34P provides a durable connection solution while remaining manageable during setup and transport. Its brushed aluminum finish provides a clean appearance that coordinates with compatible aluminum truss systems.

DT-UJB-34P Features

• Six-way universal truss junction block
• Supports multi-directional truss configurations
• EN AW-6082 T6 aluminum alloy construction
• Brushed aluminum finish
• Reinforced diagonal bracing
• Two sets of connecting hardware included
• M12 connecting bolts included

DT-UJB-34P Specifications

• Configuration: 6-way universal junction block
• Overall Truss Width: 11.41 in (290 mm)
• Main Tube Outer Diameter: 1.96 in (50 mm)
• Main Tube Wall Thickness: 0.11 in (3 mm)
• Diagonal Bracing Outer Diameter: 0.78 in (20 mm)
• Diagonal Bracing Wall Thickness: 0.11 in (3 mm)
• Material: Aluminum alloy EN AW-6082 T6
• Finish: Brushed aluminum
• Unit Weight: 20 lb (9.07 kg)
• SKU: DT34P0144

What's In The Box

• Global Truss DT-UJB-34P 6-way universal junction block
• Two sets of connecting hardware with M12 bolts
