Gravity Stands GLS431B
(Gravity Stands GR-GLS431B)
Adjustable Lighting Stand Package with Steel Base and Carry Bags
The Gravity Stands LS431B Package combines a black telescoping steel stand pole, a heavy square steel base, and two padded carrying bags into one complete lighting stand setup. Designed for mobile DJs, event production, and stage lighting applications, the assembled stand adjusts from 4.7 to 7.9 feet (1420 to 2420 mm), supports up to 44.1 lb (20 kg), and features three M20 female base mounting points for flexible equipment positioning.
Gravity Stands LS431B Package Competitive Differences
- Complete four-piece package includes the WB431B square steel base, GXSP1076 telescoping pole, GBGWBLS331 base plate bag, and GBGDBLS331 distance pole bag.
- Heavy 30.4 lb (13.8 kg) square steel base provides a stable foundation with a low-profile design.
- Three M20 female base threads allow centered and off-center mounting configurations.
- Adjustable stand height from 55.9 to 95.3 inches (1420 to 2420 mm) accommodates different stage lighting requirements.
- 35 mm upper extension with an M10 female threaded insert supports compatible mounting accessories.
- Steel height adjustment system uses a set screw and safety pin for secure positioning.
- Two integrated base handles simplify carrying and repositioning, while felt-covered feet help protect floors.
- Dedicated water-repellent 1680D nylon bags provide padded protection for the base and telescoping pole.
- Base plate bag features 5 mm padding, while the distance pole bag includes 10 mm foam padding and a padded divider.
Gravity Stands LS431B Package Description
The Gravity Stands LS431B Package offers a practical lighting stand solution for DJs, mobile entertainers, lighting technicians, and event production professionals. Combining the primary components of the LS431B stand with dedicated transport bags, this package provides the stability of a heavy steel base, the flexibility of telescoping height adjustment, and separate padded storage for both major stand components. Its black powder-coated finish makes it suitable for stages, clubs, corporate events, and professional installations.
The included Gravity Stands WB431B square steel base measures 22.2 x 22.2 inches (563 x 563 mm) and weighs 30.4 lb (13.8 kg). Its heavy steel construction provides a stable footing without the extended legs of a traditional tripod. Three M20 female threaded mounting points accommodate flexible pole placement and off-center weight attachment. Two integrated carrying handles make the base easier to transport, while felt-covered feet protect sensitive flooring from scratches and marks.
The Gravity Stands GXSP1076 telescoping replacement pole is designed for the LS431B stand system. Constructed from durable black powder-coated steel, it adjusts from 55.9 to 95.3 inches (1420 to 2420 mm) using a single extension section. The set screw and safety pin secure the selected height, while the 35 mm top tube includes an M10 female threaded insert for compatible lighting and speaker mounting accessories. When assembled as the LS431B lighting stand, the system has a maximum load capacity of 44.1 lb (20 kg).
For transporting the base, the included Gravity Stands GBGWBLS331 carry bag is designed specifically for the 563 x 563 mm square base plates used with LS431B and related Gravity stand models. Its water-repellent 1680D ballistic nylon construction features 5 mm padding, a sturdy double zipper, two carrying straps with a soft hook-and-loop handle wrap, and a transparent labeling window for easy identification.
The Gravity Stands GBGDBLS331 distance pole bag provides dedicated transport protection for the telescoping stand pole. Made from durable, water-repellent 1680D nylon, it features 10 mm foam padding, a padded internal divider, reinforced stress points, dual zippers, and a comfortable wrap-around handle. Designed to accommodate two compatible Gravity distance poles, the bag provides convenient storage for the included GXSP1076. Together, these components deliver a complete black lighting stand package with separate padded bags for transportation and storage.
LS431B Package Features
- Four-piece lighting stand package with pole, base plate, and two carrying bags
- Heavy-duty black powder-coated steel construction
- Adjustable stand height from 4.7 to 7.9 ft
- Maximum assembled stand load capacity of 44.1 lb (20 kg)
- 35 mm telescoping pole extension with M10 female threaded insert
- Secure height adjustment using set screw and safety pin
- Heavy square steel base with three M20 female mounting threads
- Off-center mounting options for flexible equipment positioning
- Two integrated base carrying handles
- Felt-covered base feet for floor protection
- Low-profile base design without extended tripod legs
- Water-repellent 1680D nylon carrying bags
- 5 mm padded base plate bag with double zipper and labeling window
- 10 mm padded distance pole bag with internal divider
- Reinforced carry bag construction for repeated transportation
- Separate storage and protection for telescoping pole and steel base
LS431B Package Specifications
- Brand: Gravity Stands
- Package Type: Lighting Stand with Steel Base and Carry Bags
- Compatible Stand Model: LS431B
- Stand Color: Black
- Stand Material: Steel
- Stand Finish: Powder Coated
- Minimum Stand Height: 55.9 in (1420 mm)
- Maximum Stand Height: 95.3 in (2420 mm)
- Maximum Assembled Stand Load Capacity: 44.1 lb (20 kg)
- Height Adjustment: Set Screw and Safety Pin
- Number of Pole Extensions: 1
- Upper Tube Diameter: 35 mm (1.38 in)
- Upper Tube Thread: M10 Female
- Base Material: Steel
- Base Dimensions (W x H x D): 22.2 x 0.6 x 22.2 in (563 x 15 x 563 mm)
- Base Weight: 30.4 lb (13.8 kg)
- Base Thread Connections: 3 x M20 Female
- Base Carrying Handles: 2 Integrated Handles
- Carry Bag Material: 1680D Nylon
- Carry Bag Color: Black
- Number of Main Package Components: 4
WB431B Square Steel Base Specifications
- Model: WB431B
- Manufacturer Item Number: GWB431B
- Product Type: Stands and Tripod Accessories
- Type: Square Steel Base Plate
- Material: Steel
- Color: Black
- Surface Finish: Powder Coated
- Threaded Connector: M20 Female
- Number of Threaded Mounting Points: 3
- Mounting Options: Centered and Off-Center
- Dimensions (W x H x D): 22.2 x 0.6 x 22.2 in (563 x 15 x 563 mm)
- Weight: 30.4 lb (13.8 kg)
- Carrying Handles: 2 Integrated Handles
- Feet: Felt Covered
- Compatible Stand: Gravity LS431B
GXSP1076 Telescoping Pole Specifications
- Model: GXSP1076
- Type: Telescoping Replacement Stand Pole
- Compatible Stand: Gravity LS431B
- Material: Steel
- Color: Black
- Surface Finish: Powder Coated
- Minimum Height: 55.9 in (1420 mm)
- Maximum Height: 95.3 in (2420 mm)
- Transport Length: 55.9 in (1420 mm)
- Height Adjustment: Set Screw and Safety Pin
- Number of Extensions: 1
- Top Tube Diameter: 35 mm (1.38 in)
- Top Tube Thread: M10 Female
GBGWBLS331 Base Plate Carry Bag Specifications
- Model: GBGWBLS331
- Product Type: Stands and Tripod Accessories
- Type: Square Base Plate Transport Bag
- Designed For: Gravity LS331B and LS431B Square Base Plates
- Compatible Base Plate Size: 22.2 x 22.2 in (563 x 563 mm)
- Material: 1680D Ballistic Nylon
- Color: Black
- Water-Repellent: Yes
- Padding Thickness: 0.2 in (5 mm)
- Closure: YKK Double Zipper
- Carrying System: Two Straps with Soft Hook-and-Loop Handle Wrap
- Transparent Label Window: Yes
- Number of Compartments: 1
- Bag Width: 23.6 in (600 mm)
- Bag Depth: 23.6 in (600 mm)
- Weight: 1.30 lb (0.59 kg)
GBGDBLS331 Distance Pole Carry Bag Specifications
- Model: GBGDBLS331
- Product Type: Stands and Tripod Accessories
- Type: Distance Pole Transport Bag
- Designed For: Gravity LS331B and LS431B Distance Poles
- Capacity: 2 Distance Poles
- Material: 1680D Nylon
- Color: Black
- Water-Repellent: Yes
- Padding Thickness: 0.4 in (10 mm)
- Internal Divider: Padded
- Closure: YKK Double Zipper
- Number of Compartments: 2
- Reinforced Stress Points: Yes
- Carrying System: Dual Straps with Wrap-Around Handle
- Width: 55.9 in (1420 mm)
- Height: 4.7 in (120 mm)
- Depth: 5.5 in (140 mm)
- Weight: 1.98 lb (0.9 kg)

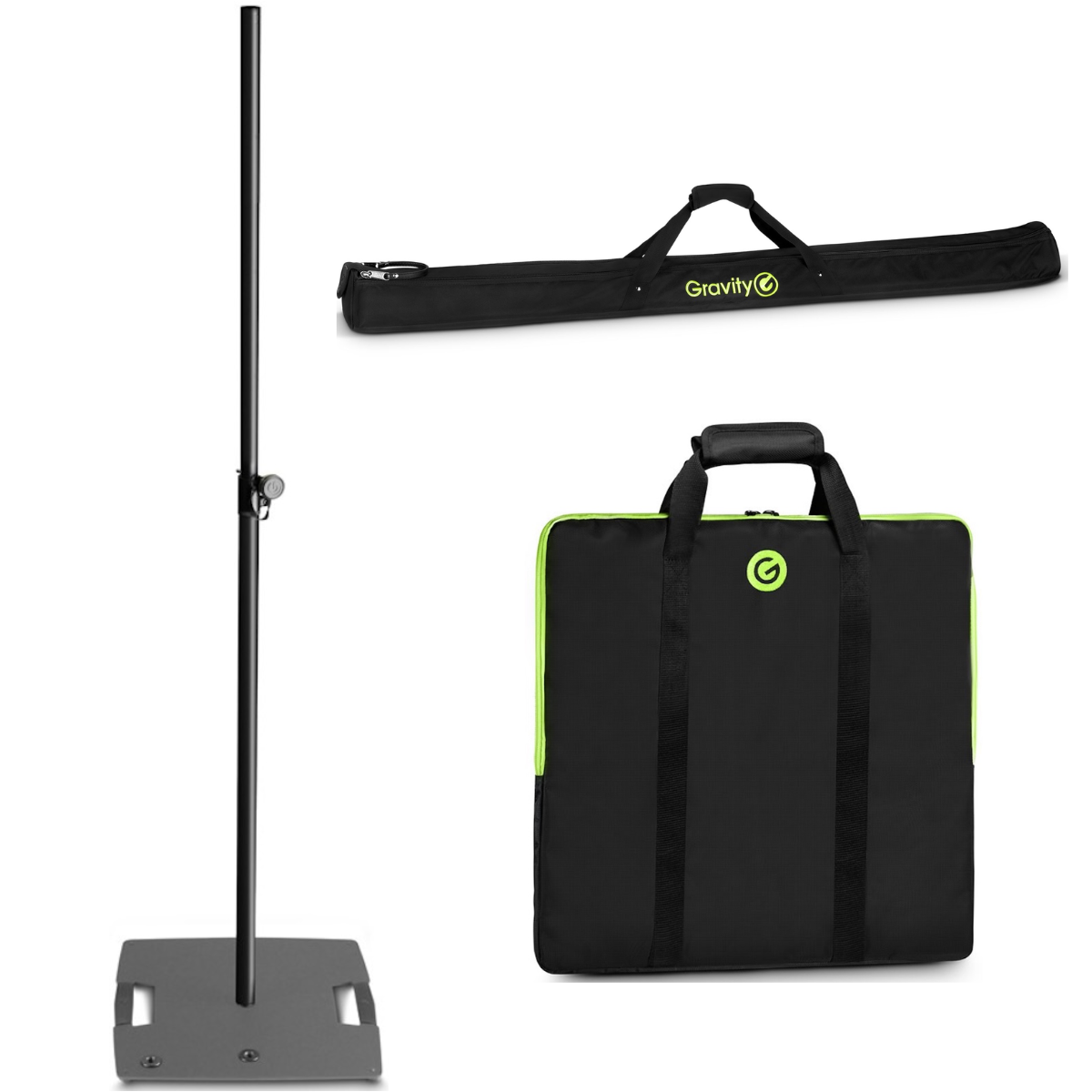

What's In The Box
- (1) Gravity Stands WB431B - Black Square Steel Base Plate
- (1) Gravity Stands GXSP1076 - Black Telescoping Replacement Pole
- (1) Gravity Stands GBGWBLS331 - Padded Square Base Plate Carry Bag
- (1) Gravity Stands GBGDBLS331 - Padded Distance Pole Carry Bag
