HK Audio Cadis CAD 208 Top | Dual 8in Line Array Module - 136dB | Passive Installation Speaker

HK Audio CAD 208  (HK Audio CAD 208 Black)

Passive Line Array Top Speaker

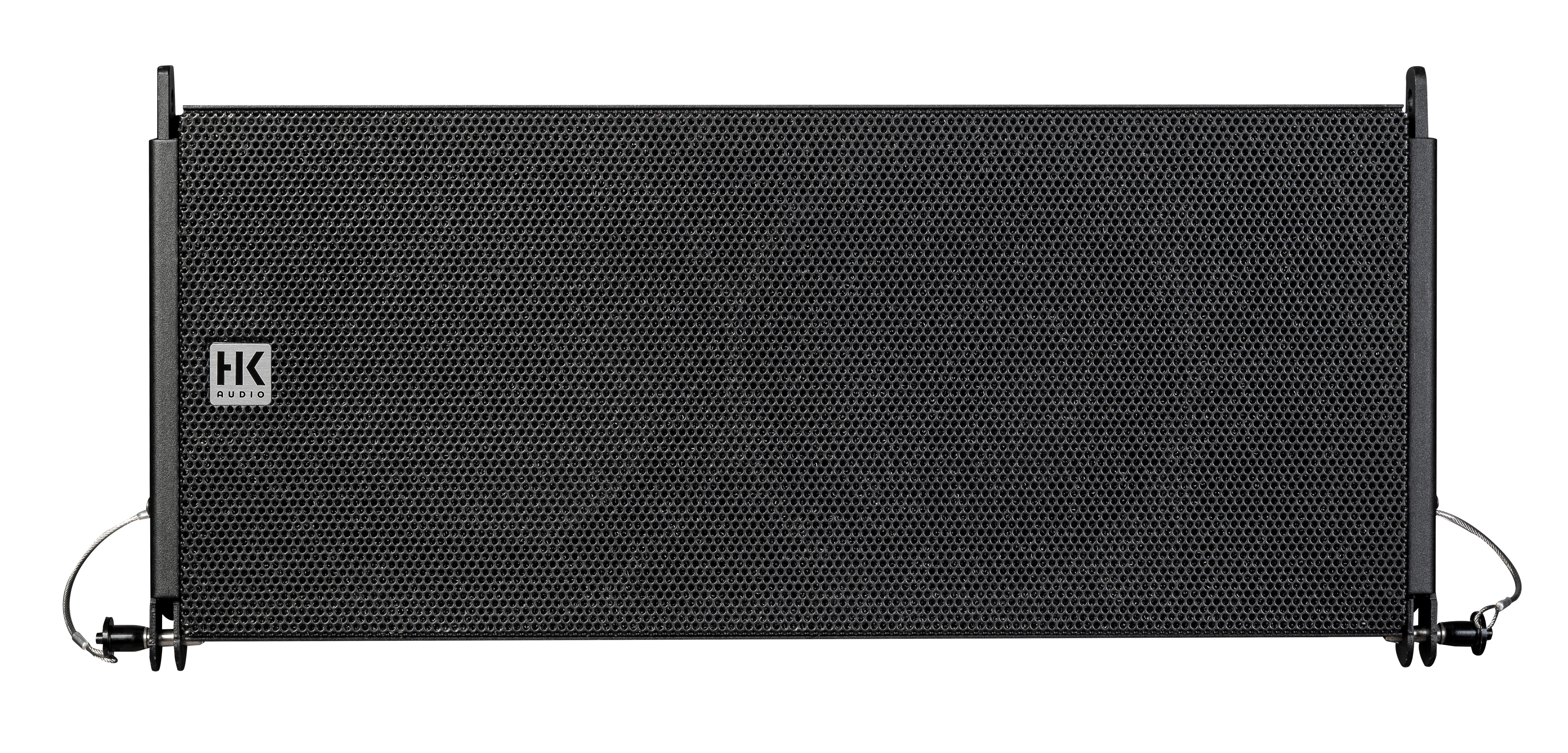

The HK Audio Cadis CAD 208 Top is a compact passive line array mid/high module designed for professional installation systems in venues such as theaters, houses of worship, sports facilities, and conference centers. Featuring dual 8-inch low/mid drivers and dual 1-inch compression drivers, it delivers strong output, excellent speech intelligibility, and consistent coverage across large listening areas.

HK Audio Cadis CAD 208 Top Competitive Differences

• Dual 8" low/mid drivers and dual 1" compression drivers for powerful line array clarity
• 100° horizontal coverage with integrated rigging for scalable CADIS arrays

HK Audio Cadis CAD 208 Top Description

The HK Audio Cadis CAD 208 Top is part of the CADIS (Compact Adaptive Installation System) series, developed for permanent sound reinforcement installations where clarity, output, and reliability are critical. The 2.5-way design uses two high-performance 8-inch drivers for low and midrange frequencies combined with dual 1-inch compression drivers mounted to a precision waveguide to ensure even high-frequency distribution.

This design provides consistent sound coverage with a wide 100° horizontal dispersion and 15° vertical coverage per cabinet, making it ideal for building scalable line array systems that cover small to large venues. Multiple CAD 208 Top modules can be flown together to create arrays tailored to the specific acoustic needs of the space.

The enclosure is built from glass-fiber reinforced polyamide, offering exceptional durability while remaining lightweight. This weather-resistant construction makes the speaker suitable for demanding installation environments, including indoor venues and protected outdoor spaces.

An integrated three-point rigging system allows installers to quickly configure array angles between cabinets, ensuring precise audience coverage. When paired with Cadis subwoofers such as the CAD 115 Sub, the system becomes a powerful full-range installation solution capable of delivering both clear speech reinforcement and high-impact music playback.

CAD 208 Top Features

• Passive 2.5-way line array mid/high module
• Dual 8" low/midrange drivers
• Dual 1" compression HF drivers with waveguide
• High output design for scalable installation arrays
• 100° horizontal x 15° vertical dispersion
• Integrated 3-point rigging system
• Adjustable array angles for precise venue coverage
• Durable glass-fiber reinforced polyamide enclosure
• Weather-resistant design for installation use
• Speakon NL4 input and parallel output connectors

CAD 208 Top Specifications

• System Type: Passive 2.5-Way Line Array Top
• Power Handling: 250 W RMS / 500 W Program / 1000 W Peak
• Max SPL (Peak): 136 dB
• Sensitivity: 95 dB (1 W / 1 m)
• Frequency Range (-6 dB): 100 Hz – 18 kHz
• Dispersion: 100° (H) x 15° (V)
• Drivers: 2 x 8" low/mid drivers, 2 x 1" compression drivers
• Nominal Impedance: 8 Ohms
• Connections: 2 x Speakon NL4 (Input / Parallel)
• Dimensions: 22.8 x 9.4 x 14.7 in (578 x 238 x 373 mm)
• Weight: 38.6 lb (17.5 kg)

What's In The Box

• HK Audio Cadis CAD 208 Top speaker
• Integrated rigging hardware
