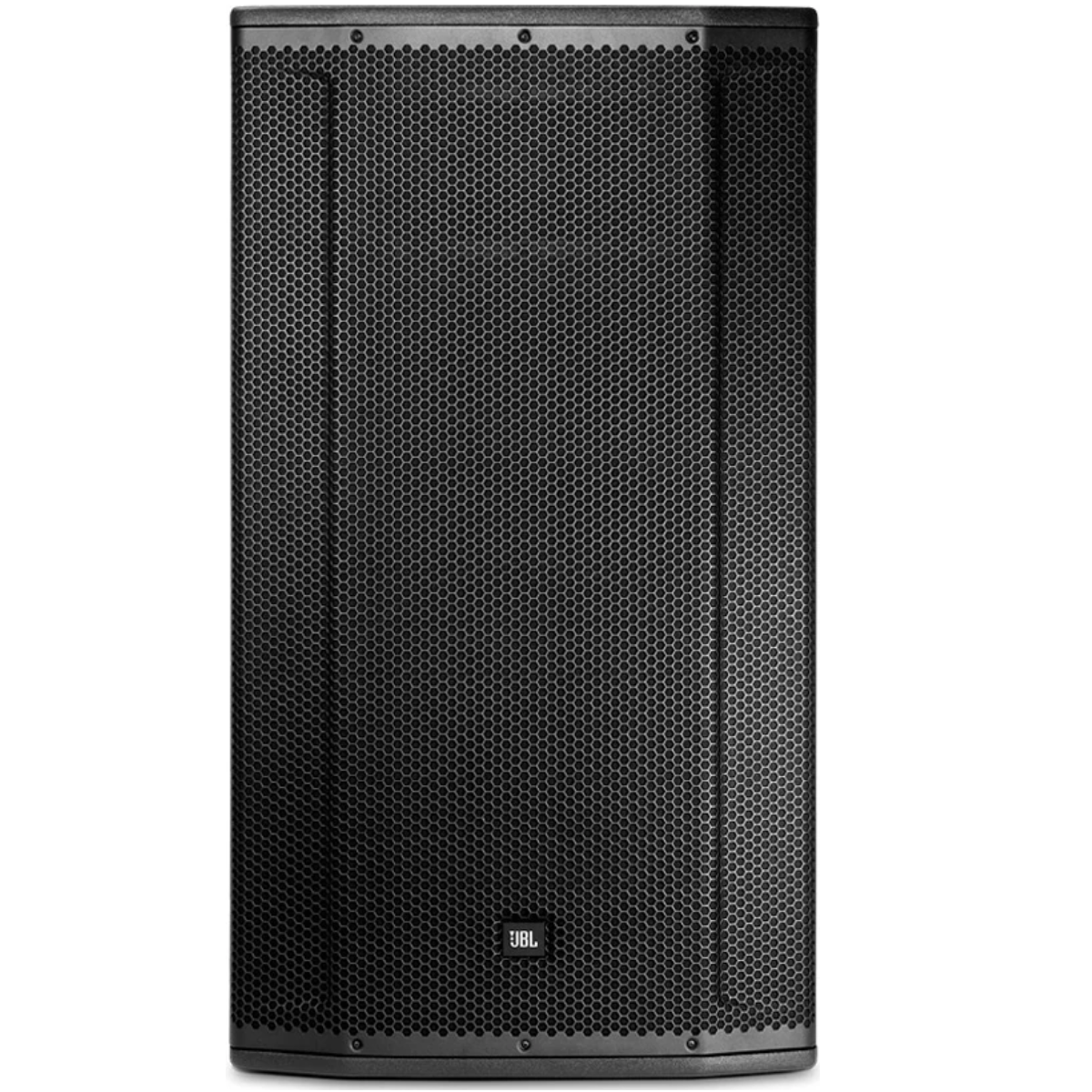

JBL SRX835P | 15in 3-Way - 137dB Max SPL | 2000W Powered PA Speaker with DSP

JBL SRX835P  (JBL SRX-835P)

15-Inch 3-Way Powered PA Speaker

JBL SRX835P is a self-powered 15-inch 3-way bass-reflex loudspeaker designed for demanding live sound, DJ, touring, rental, and permanent installation applications. With 2000W peak Crown amplification, premium JBL transducers, onboard DSP, and up to 137dB maximum SPL, it delivers high output with extensive system control in an all-in-one enclosure.

JBL SRX835P Competitive Differences

• True 3-way design combines a 15-inch Differential Drive LF driver, dedicated midrange driver, and 3-inch voice-coil neodymium compression driver
• Integrated 2000W peak Crown Class D amplification with user-configurable DSP, HiQnet network control, and JBL V5 tuning compatibility

JBL SRX835P Description

JBL SRX835P combines JBL transducer technology with Crown amplification to provide a high-output point-source solution for professional sound reinforcement. Its 15-inch 2275F Differential Drive woofer handles low frequencies, while a dedicated 2107H midrange driver and 2432H neodymium compression driver provide clear reproduction throughout the mid and high-frequency ranges.

The integrated Crown Class D amplifier provides a 2000W peak power rating and works with onboard 400MHz SHARC DSP for extensive system optimization. Users have access to 20 parametric EQ filters, up to 2 seconds of speaker delay, signal generators, input mixing, amplifier monitoring, and 50 preset slots. An integrated LCD screen provides direct access to setup and configuration functions.

HiQnet network integration allows SRX800 Series systems to be configured and controlled over a wired network connection, while support for compatible wireless router configurations expands remote-control options. JBL V5 tunings also provide compatibility with VERTEC and VTX touring-system workflows.

The enclosure is constructed from 18 mm, 11-ply Finnish birch plywood and finished in durable black DuraFlex. Integral recessed handles aid transportation, while a pole socket and 12 M10 suspension points provide flexible setup options for mobile systems and permanent installations. The SRX835P is well suited for live performances, mobile and fixed DJ systems, rental and touring applications, and installed sound systems.

SRX835P Features

• 15-inch 3-way self-powered bass-reflex loudspeaker
• Maximum SPL of 137dB at 1 meter
• 2000W peak Crown Class D amplification
• Crown DriveCore front-end technology
• 15-inch JBL 2275F Differential Drive low-frequency driver
• JBL 2107H dedicated midrange driver
• JBL 2432H neodymium compression driver with 3-inch voice coil
• 60° x 40° coverage pattern
• 400MHz SHARC DSP
• 20 parametric EQ filters
• Up to 2 seconds of speaker delay
• Signal generators and input mixing
• Amplifier monitoring
• 50 available preset slots
• JBL V5 tuning compatibility with VERTEC and VTX systems
• Integrated LCD screen for setup and configuration
• HiQnet network integration
• 18 mm, 11-ply Finnish birch plywood enclosure
• Black DuraFlex finish
• Integral recessed carrying handles
• 12 M10 suspension points
• Pole-mount socket

SRX835P Specifications

• System Type: Self-powered 15-inch, 3-way, bass-reflex
• Maximum SPL: 137dB @ 1 m
• Frequency Range (-10dB): 33 Hz - 21 kHz
• Frequency Response (±3dB): 41 Hz - 20 kHz
• Coverage Pattern: 60° x 40°
• Amplifier Design: Class D
• Power Rating: 2000W Peak
• LF Driver: 1 x JBL 2275F Differential Drive, 15 in
• MF Driver: 1 x JBL 2107H
• HF Driver: 1 x JBL 2432H neodymium compression driver with 3 in (76 mm) voice coil
• EQ: 20 parametric EQ filters, speaker delay, and 50 available preset slots
• Inputs: Neutrik 1/4 in - XLR input
• Outputs: 2 x XLR
• Enclosure: 18 mm, 11-ply Finnish birch plywood with black DuraFlex finish
• Mounting: Pole socket and 12 x M10 suspension points
• Dimensions (H x W x D): 38.74 x 21.4 x 18.74 in (984 x 544 x 476 mm)
• Weight: 85 lb (38.6 kg)
