JMAZ Centipede B4
(JMAZ CentipedeB4)
RGBW Moving Head LED Bar

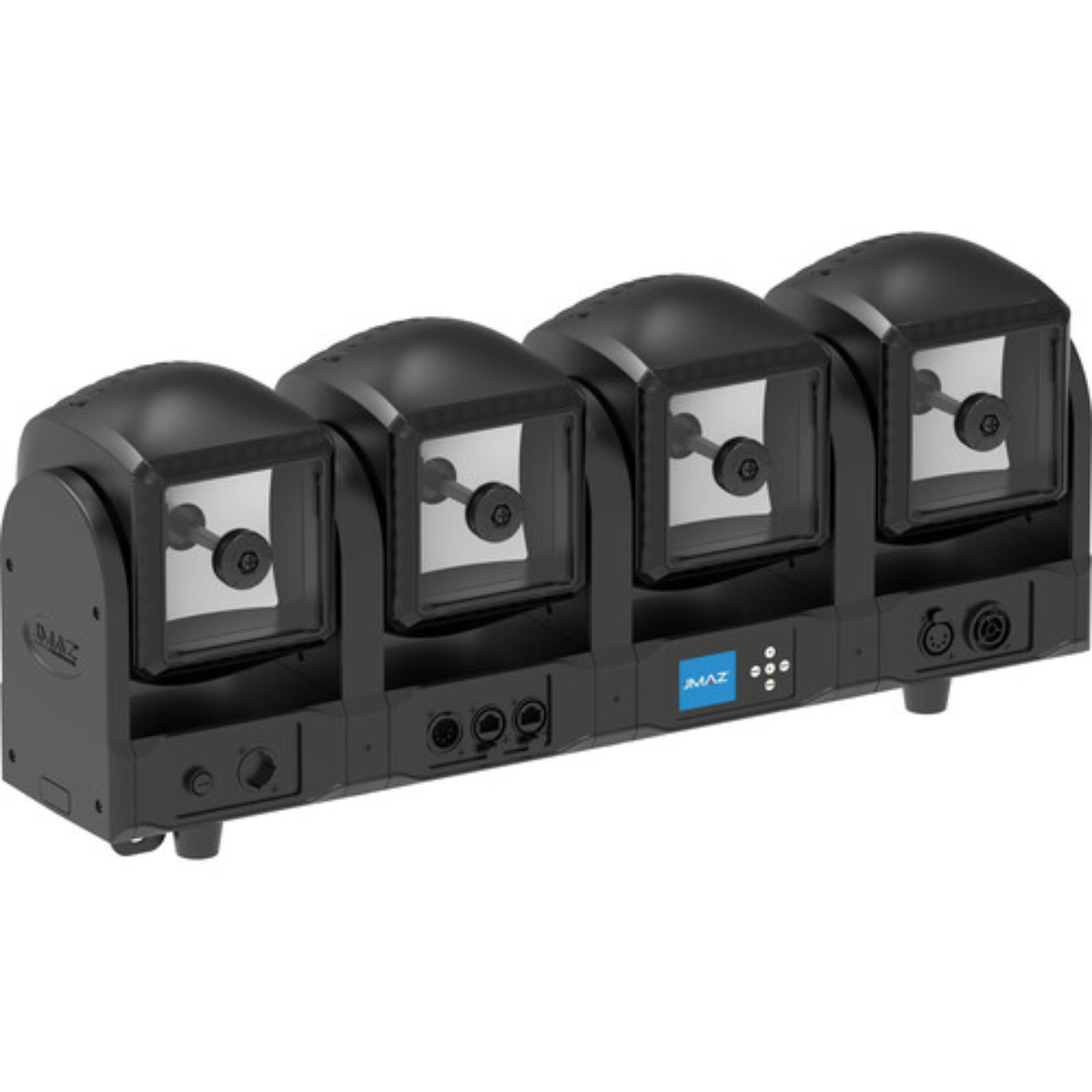

The JMAZ Centipede B4 combines four independently controlled RGBW moving heads with RGB LED ring effects in one intelligent bar fixture. Its narrow beams, continuous tilt movement, pixel mapping, color macros, and network-based control protocols make it useful for concerts, clubs, DJ events, touring productions, and synchronized lighting installations.
JMAZ Centipede B4 Competitive Differences
- Four independently controlled 60W RGBW moving heads in one linear fixture
- 120 RGB SMD LEDs create individually controlled outer-ring effects
- Selectable continuous 360° tilt or precise 240° movement with 8-bit and 16-bit control
- Individual pixel mapping and ring control support complex animated effects
- Supports DMX512, RDM, Art-Net, sACN, and Kling-Net protocols
- Adjustable 2500K to 8000K color temperature supports warm and cool white output
- Each head produces up to 9,640 lux at 1 meter with a narrow 3.5° beam
- Automatic tilt-position correction helps maintain accurate movement
JMAZ Centipede B4 Description
The JMAZ Centipede B4 is designed for lighting professionals who need moving beams, pixel effects, and network control from a single compact bar. Four 60W RGBW LEDs generate sharp 3.5° beams, with each head producing up to 9,640 lux at 1 meter when operated at full output.
Each moving head also incorporates 30 RGB SMD LEDs for a total of 120 ring-effect LEDs. Individual pixel control, built-in virtual colors, foreground and background color selection, dynamic RGB macros, and movement macros allow the fixture to produce layered visual effects without requiring multiple separate fixtures.
The heads can operate with continuous 360° tilt or within a 240° range using 8-bit or 16-bit positioning. Preset home-position macros, adjustable movement speeds, position memory scanning, and automatic tilt correction support accurate programming for coordinated shows.
DMX512, RDM, Art-Net, sACN, and Kling-Net compatibility provide flexible integration into conventional and networked lighting systems. The housing combines aluminum and steel with high-impact, flame-retardant PA6 GF30 material for demanding professional use, while fan cooling helps manage operating temperatures.
Electronic dimming, pulse effects, random strobes, and shutter speeds up to 25Hz expand the fixture's effect options. The Centipede B4 includes mounting hardware, safety cables, a 5-pin DMX cable, and a powerCON TRUE1 power cable for installation and operation.
Centipede B4 Features
- Four 60W RGBW moving-head LEDs
- 120 RGB SMD ring LEDs rated at 0.2W each
- Eight controllable pixel zones
- Individual head and LED-ring control
- Continuous 360° tilt movement
- Selectable 240° tilt with 8-bit and 16-bit positioning
- Automatic tilt-position correction
- Preset home-position and movement macros
- Built-in virtual colors and dynamic RGB color macros
- Foreground and background color control
- Adjustable 2500K to 8000K color temperature
- Electronic dimming from 0 to 100%
- Electronic shutter and strobe from 0 to 25Hz
- Pulse and random strobe effects with variable speed
- DMX512, RDM, Art-Net, sACN, and Kling-Net control
- 5-pin XLR DMX input and output
- RJ45 network input and output
- powerCON TRUE1 power input and output
- Fan-cooled aluminum, steel, and PA6 GF30 construction
- Floor-base and omega-bracket mounting options
- IP20 rated
Centipede B4 Specifications
- Fixture Type: Intelligent RGBW moving-head LED bar
- Main Light Source: 4 RGBW LEDs, 60W each
- Ring Light Source: 120 RGB SMD LEDs, 0.2W each
- Pixel Zones: 8
- LED Life Expectancy: 50,000 hours
- Colors: Red, green, blue, and white
- Color Temperature: 2500K to 8000K
- Beam Angle: 3.5°
- Illuminance at 1m: 9,640 lux per head
- Illuminance at 3m: 1,278 lux per head
- Illuminance at 5m: 487 lux per head
- Tilt Range: 240° or continuous 360°
- Tilt Resolution: 8-bit or 16-bit
- Strobe Rate: 0 to 25Hz
- Dimming: Electronic, 0 to 100%
- Control Protocols: DMX512, RDM, Art-Net, Kling-Net, and sACN
- DMX Connections: 5-pin XLR input and output
- Network Connections: RJ45 input and output
- Power Connections: powerCON TRUE1 input and output
- Input Voltage: 100 to 240VAC, 50/60Hz
- Power Consumption: 320W
- Fuse: F12A, 250V
- Power Linking: Up to 6 units at 110V
- Power Linking: Up to 12 units at 208V or 230V
- Maximum Linked Current: 20A
- Cooling: Fan
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Mounting: Floor base or omega bracket
- Environmental Rating: IP20
- Exterior Color: Black
- Dimensions: 23 x 9.3 x 5 in (58.4 x 23.6 x 12.7 cm)
- Weight: 42.1 lb (19.1 kg)
- Certifications: CE, cETL, FCC, and RoHS
What's In The Box
- JMAZ Centipede B4 lighting fixture
- powerCON TRUE1 power cable
- 5-pin DMX cable
- Two mounting brackets
- Two safety cables
