JMAZ JP3002
(JMAZ Gotham Panel W8)
Outdoor RGB+Lime LED Panel

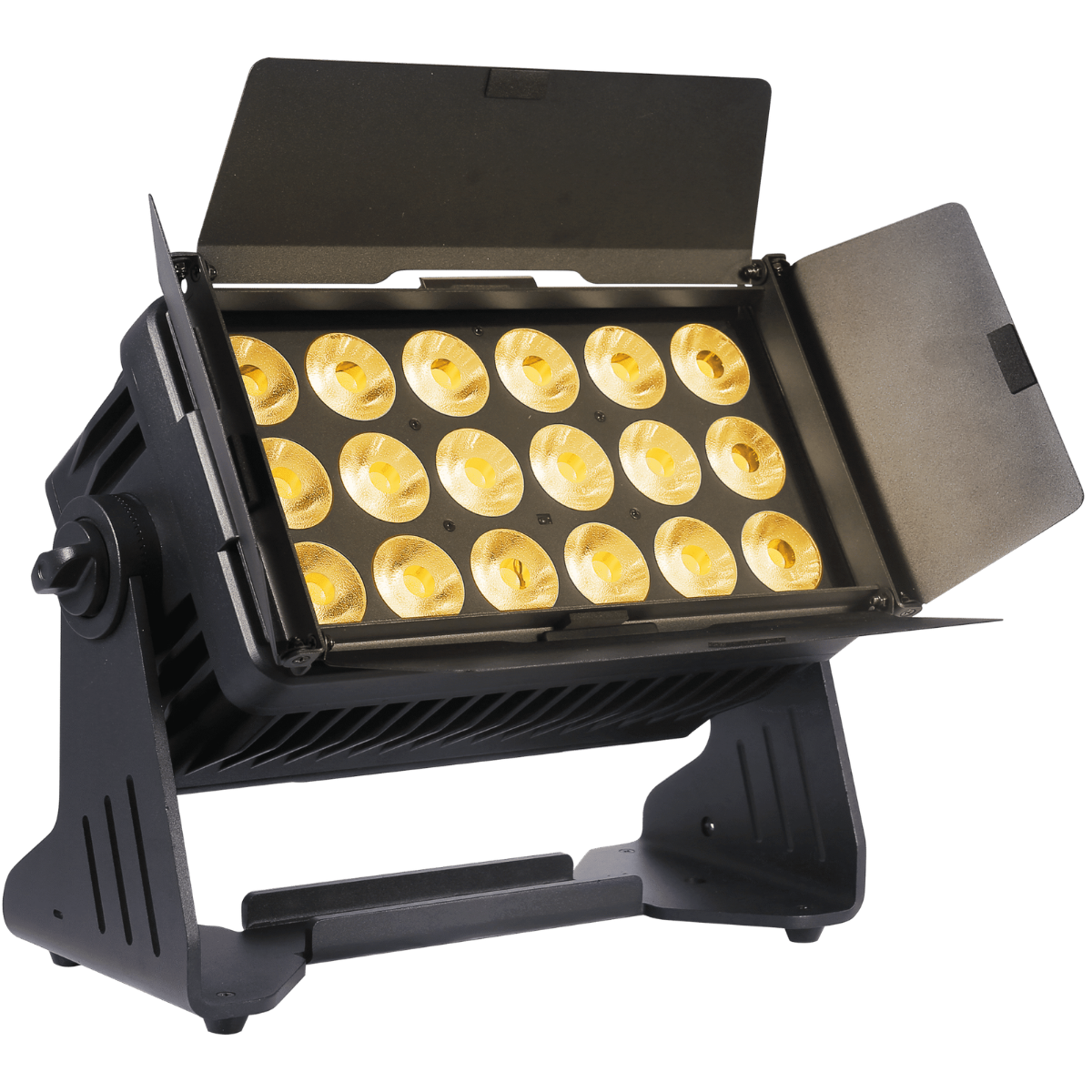

The JMAZ Gotham Panel W18 is a professional IP65-rated LED panel powered by eighteen 12W RGB+Lime LEDs. It combines saturated colors, pastel tones, adjustable white light, wireless and wired control, and silent fanless operation for outdoor productions, houses of worship, broadcast environments, architectural installations, and touring applications.
JMAZ Gotham Panel W18 Competitive Differences
- Eighteen 12W RGB+Lime LEDs deliver 216W of output with saturated colors, pastel shades, and controllable white light
- Adjustable 2300K to 8500K color temperature supports warm tungsten-style looks through cool daylight output
- Native 20° beam provides focused projection, while the included 40° diffuser creates broader wash coverage
- Integrated CRMX by LumenRadio supports professional wireless DMX control
- IP65-rated construction supports outdoor and weather-exposed installations
- Fanless cooling provides silent operation for broadcast, theater, worship, and noise-sensitive environments
- Includes 73 preset colors, 72 automatic effects, and four customizable favorite colors
- TRUE1 IP65 power input and output support power linking for multi-fixture systems
JMAZ Gotham Panel W18 Description
The JMAZ Gotham Panel W18 is designed for lighting professionals who need flexible color reproduction and dependable outdoor performance from a compact panel fixture. Its eighteen high-output 12W RGB+Lime LEDs provide 216W of total output, with the lime component helping produce nuanced pastel colors and more controlled white-light tones.
A variable color temperature range from 2300K to 8500K allows the panel to transition from warm interior lighting to cooler daylight-style output. The native 20° beam angle is suitable for focused, longer-throw applications, while the included 40° diffuser spreads the light into a broader and more even wash.
Integrated CRMX by LumenRadio enables wireless DMX operation, while DMX512, RDM, and sealed 5-pin XLR connections support professional wired control. Seven DMX personality options provide HSV, HSI, and 3-, 4-, 6-, 11-, or 16-channel operation for systems ranging from simple color control to detailed fixture programming.
For console-free use, the fixture includes 73 preset color programs, 72 automatic and fade effects, standalone color mixing, and four customizable favorite colors that can be triggered through DMX or the included IR remote. An OLED graphical display provides onboard access to fixture settings and operating modes.
The die-cast aluminum and steel housing is IP65 rated and uses fanless cooling for silent performance. Sealed TRUE1 power connections and 5-pin DMX ports support touring, permanent installation, outdoor production, architectural, broadcast, and house-of-worship applications.
Gotham Panel W18 Features
- Eighteen 12W RGB+Lime LEDs
- 216W total LED output
- 8-bit and 16-bit RGB+Lime color mixing
- Adjustable color temperature from 2300K to 8500K
- Native 20° beam angle
- Included 40° diffuser
- 73 preset color programs
- 72 built-in automatic and fade programs
- Four customizable favorite colors
- Standalone color mixing
- Electronic dimming with four dimming modes
- Electronic shutter and strobe from 1 to 25Hz
- Built-in fading, jumping, and color macros
- CRMX wireless DMX by LumenRadio
- DMX512 and RDM control
- IR remote operation
- HSV, HSI, and five standard DMX channel modes
- OLED graphical display
- IP65-rated construction
- Fanless, silent cooling
- Sealed 5-pin XLR data input and output
- Seetronic powerCON TRUE1 IP65 power input and output
- Die-cast aluminum and steel housing
- Black exterior finish
Gotham Panel W18 Specifications
- Fixture Type: Outdoor RGB+Lime LED panel
- Light Source: 18 RGB+Lime LEDs, 12W each
- Total LED Output: 216W
- LED Life Expectancy: 50,000 hours
- Color Mixing: RGB+Lime, 8-bit and 16-bit
- Color Temperature Range: 2300K to 8500K
- Native Beam Angle: 20°
- Diffuser Beam Angle: 40°
- Preset Color Programs: 73
- Automatic and Fade Programs: 72
- Favorite Color Memories: 4
- Strobe Rate: 1 to 25Hz
- Dimming: Electronic
- Dimming Modes: 4
- DMX Channel Modes: HSV, HSI, 3, 4, 6, 11, or 16 channels
- Control Protocols: DMX512, RDM, CRMX wireless DMX, and IR remote
- Wireless DMX System: CRMX by LumenRadio
- Display: OLED graphical display
- Data Connections: Seetronic 5-pin XLR input and output
- Power Input: Seetronic powerCON TRUE1 IP65
- Power Output: Seetronic powerCON TRUE1 IP65
- Input Voltage: 100 to 240VAC, 50/60Hz
- Power Consumption: 216W
- PWM Frequency: 1.5kHz
- Power Linking: Up to 8 units at 110V on a 20A circuit
- Power Linking: Up to 14 units at 208V on a 20A circuit
- Power Linking: Up to 17 units at 230V on a 20A circuit
- Included Power Cable Length: 4.1 ft (1.25m)
- Housing: Die-cast aluminum and steel
- Cooling: Fanless
- Environmental Rating: IP65
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Certifications: CE, FCC, and RoHS
- Pending Certification: cETL
- Dimensions: 16.2 x 7.3 x 10.6 in
- Weight: 18.74 lb (8.5 kg)
- UPC: 618528599038
- Warranty: 3 years
What's In The Box
- JMAZ Gotham Panel W18
- powerCON TRUE1 IP65 power cable
- 40° diffuser
- Barndoors
- Omega bracket
- IR remote
- Quick start guide
- User manual
