Jmaz JP3001
(JMAZ Gotham Panel W8)
Outdoor RGB+Lime LED Panel

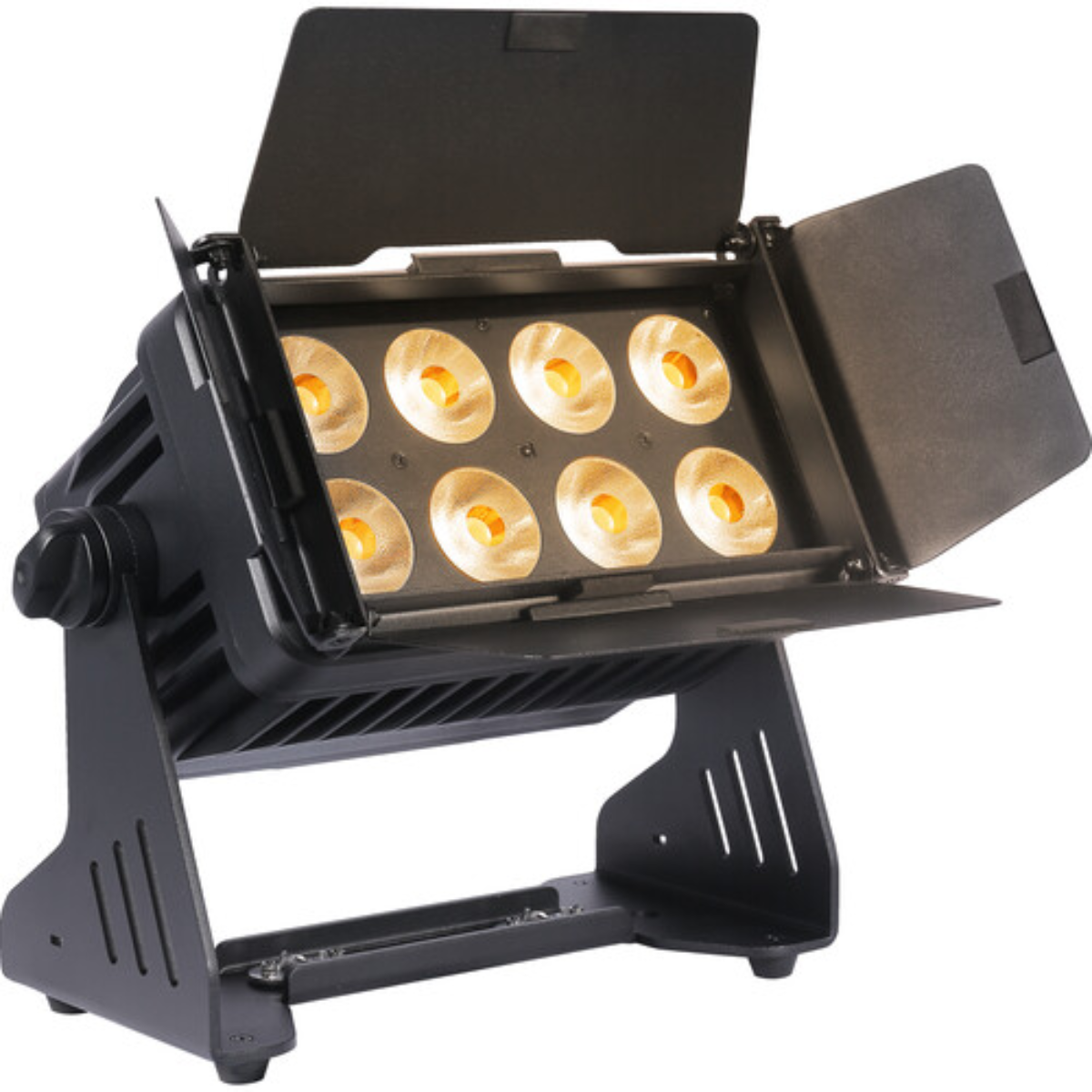

The JMAZ Gotham Panel W8 is a compact IP65-rated LED panel powered by eight 12W RGB+Lime LEDs. It delivers saturated colors, enhanced pastel tones, tunable white light, and silent fanless operation for outdoor productions, architectural lighting, houses of worship, installations, and other professional applications.
JMAZ Gotham Panel W8 Competitive Differences
- Eight 12W RGB+Lime LEDs provide 96W of LED output with saturated colors, pastel tones, and controllable white light
- Adjustable 2300K to 8500K color temperature supports warm through cool white output
- Native 20° beam provides controlled projection, while the included 40° diffuser creates broader wash coverage
- Integrated CRMX by LumenRadio supports professional wireless DMX control
- IP65-rated construction supports outdoor and weather-exposed applications
- Fanless cooling provides silent operation for broadcast, worship, theater, and noise-sensitive spaces
- Includes 73 preset colors, 72 automatic effects, and four customizable favorite colors
- TRUE1 IP65 power linking supports up to 40 fixtures on a 230V, 20A circuit
JMAZ Gotham Panel W8 Description
The JMAZ Gotham Panel W8 is designed for lighting professionals who need flexible color control and outdoor-ready performance in a smaller fixture. Eight high-output 12W RGB+Lime LEDs provide 96W of LED output, with the lime component helping produce nuanced pastel colors and smoother white-light reproduction.
A variable color temperature range from 2300K to 8500K allows the fixture to shift from warm tungsten-style looks to cooler daylight tones. The native 20° beam angle supports focused projection, while the included 40° diffuser creates a softer and more uniform wash.
Integrated CRMX by LumenRadio enables wireless DMX operation, while DMX512, RDM, and sealed 5-pin XLR connections provide professional wired control. Seven personality options include HSV, HSI, and 3-, 4-, 6-, 11-, and 16-channel modes for both simplified and detailed programming.
For operation without a lighting console, the fixture includes 73 preset color programs, 72 automatic and fade effects, standalone color mixing, and four customizable favorite colors. These functions can be accessed through DMX, the included IR remote, or the onboard OLED graphical display.
The die-cast aluminum and steel housing is IP65 rated and uses fanless cooling for silent performance. Seetronic powerCON TRUE1 IP65 connections and sealed 5-pin DMX ports support scalable touring, installation, architectural, outdoor, and house-of-worship systems.
Gotham Panel W8 Features
- Eight 12W RGB+Lime LEDs
- 96W total LED output
- 8-bit and 16-bit RGB+Lime color mixing
- Adjustable color temperature from 2300K to 8500K
- Native 20° beam angle
- Included 40° diffuser
- 73 preset color programs
- 72 built-in automatic and fade programs
- Four customizable favorite colors
- Standalone color mixing
- Electronic dimming with four dimming modes
- Electronic shutter and strobe from 1 to 25Hz
- Built-in fading, jumping, and color macros
- CRMX wireless DMX by LumenRadio
- DMX512 and RDM control
- IR remote operation
- HSV, HSI, and five standard DMX channel modes
- OLED graphical display
- IP65-rated construction
- Fanless, silent cooling
- Sealed 5-pin XLR data input and output
- Seetronic powerCON TRUE1 IP65 power input and output
- Die-cast aluminum and steel housing
- Black exterior finish
Gotham Panel W8 Specifications
- Fixture Type: Outdoor RGB+Lime LED panel
- Light Source: 8 RGB+Lime LEDs, 12W each
- Total LED Output: 96W
- LED Life Expectancy: 50,000 hours
- Color Mixing: RGB+Lime, 8-bit and 16-bit
- Color Temperature Range: 2300K to 8500K
- Native Beam Angle: 20°
- Diffuser Beam Angle: 40°
- Preset Color Programs: 73
- Automatic and Fade Programs: 72
- Favorite Color Memories: 4
- Strobe Rate: 1 to 25Hz
- Dimming: Electronic
- Dimming Modes: 4
- DMX Channel Modes: HSV, HSI, 3, 4, 6, 11, or 16 channels
- Control Protocols: DMX512, RDM, CRMX wireless DMX, and IR remote
- Wireless DMX System: CRMX by LumenRadio
- Display: OLED graphical display
- Data Connections: Seetronic 5-pin XLR input and output
- Power Input: Seetronic powerCON TRUE1 IP65
- Power Output: Seetronic powerCON TRUE1 IP65
- Input Voltage: 100 to 240VAC, 50/60Hz
- Power Consumption: 120W
- PWM Frequency: 1.5kHz
- Power Linking: Up to 18 units at 110V on a 20A circuit
- Power Linking: Up to 30 units at 208V on a 20A circuit
- Power Linking: Up to 40 units at 230V on a 20A circuit
- Included Power Cable Length: 4.1 ft (1.25m)
- Housing: Die-cast aluminum and steel
- Cooling: Fanless
- Environmental Rating: IP65
- Operating Temperature: 14° to 140°F (-10° to 60°C)
- Certifications: CE, FCC, and RoHS
- Pending Certification: cETL
- Dimensions: 12.56 x 5.51 x 9.77 in
- Weight: 11.2 lb (5.1 kg)
- UPC: 618528599021
What's In The Box
- JMAZ Gotham Panel W8
- powerCON TRUE1 IP65 power cable
- 40° diffuser
- Barndoors
- IR remote
- Quick start guide
- User manual
