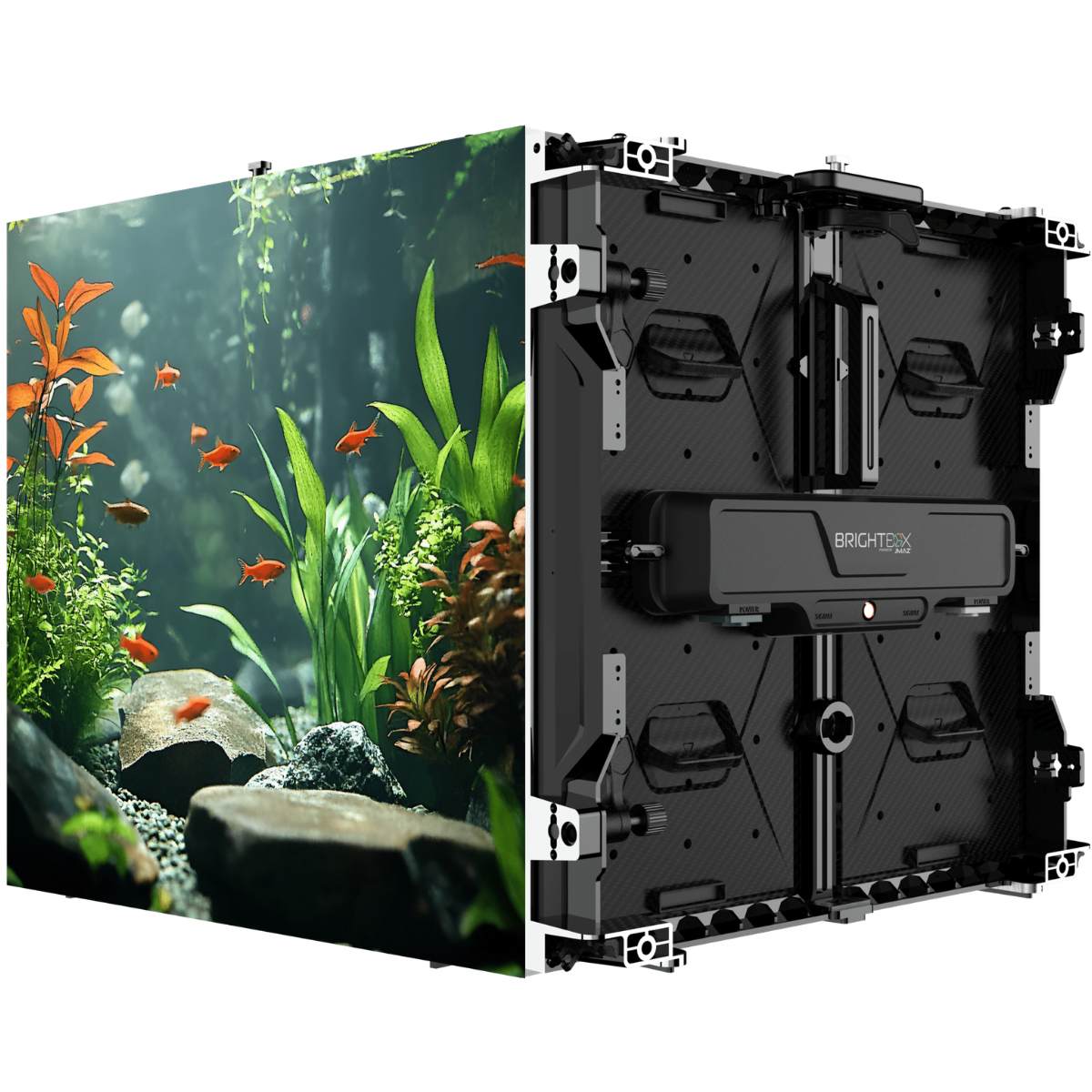

JMAZ BB1038 Osiris 1.9 GOB Fixed/Mobile | 1.9mm GOB LED Video Wall Panel | 500x500mm - 800 Nits

Indoor LED Video Wall Panel

JMAZ BB1038 is an Osiris 1.9 GOB LED video wall panel designed for fixed installations and mobile production environments. Featuring a 1.9mm pixel pitch, 256 x 256 pixel resolution, 800-nit brightness, and a refresh rate of at least 7680Hz, this 500 x 500mm panel provides high-resolution LED display performance with flexible installation options and front and rear service access.

JMAZ BB1038 Competitive Differences

• 1.9mm GOB pixel pitch with 256 x 256 resolution per panel for detailed LED video displays
• 800-nit brightness with a refresh rate of at least 7680Hz
• Hybrid design supports fixed installations and mobile video wall applications
• Multiple installation methods including hanging, stacking, and direct wall mounting
• Front and rear service access with a swappable all-in-one power box
• Corner protection and a lightweight 11 lb (5 kg) panel design

JMAZ BB1038 Description

The JMAZ BB1038 Osiris 1.9 GOB LED video wall panel combines fine-pitch LED technology with a versatile 500 x 500mm cabinet format. Its SMD1515 black LEDs provide a 256 x 256 pixel resolution per panel, while 16-bit grayscale processing supports detailed image reproduction and smooth tonal transitions.

With 800-nit brightness and a refresh rate of at least 7680Hz, the panel is designed for video presentations, event productions, stage backdrops, corporate displays, and permanent indoor installations. The 1.9mm GOB configuration supports high-resolution video wall assemblies where image detail and consistent visual performance are important.

The Osiris hybrid design accommodates both temporary and permanent installations. Panels can be configured for hanging, stacking, or direct wall mounting, allowing integrators and production teams to adapt the display to different venues and installation requirements. Built-in corner protection helps protect the panel during handling and setup.

For maintenance, the BB1038 provides front and rear service access along with a swappable all-in-one power box. Its Novastar A8s-N control system, 2 x 2 module configuration, and compact 64mm cabinet depth support integration into modular LED display systems. The panel carries an IP30 front rating and IP20 rear rating.

BB1038 Features

• Osiris 1.9 GOB hybrid LED video wall panel
• 1.9mm pixel pitch
• 256 x 256 pixel resolution per panel
• 800-nit brightness
• Refresh rate of at least 7680Hz
• SMD1515 black LED technology
• 16-bit grayscale processing
• 1/32 scan mode
• 500 x 500mm modular panel dimensions
• Supports fixed and mobile installations
• Hanging, stacking, and direct wall mounting options
• Front and rear serviceability
• Corner protection for handling and transport
• Swappable all-in-one power box
• 2 x 2 LED module configuration
• Novastar A8s-N control system
• IP30 front and IP20 rear ratings
• 100,000-hour rated lifespan
• FCC, RoHS, and CE certifications

BB1038 Specifications

• Product Type: LED Video Wall Panel
• Series: Osiris 1.9 GOB
• Pixel Pitch: 1.9mm GOB
• LED Type: SMD1515 Black
• Pixel Resolution: 256 x 256
• Pixel Density: 262,144 Dots/m²
• Brightness: 800 Nits
• Refresh Rate: ≥7680Hz
• Grayscale: 16-bit
• Scan Mode: 1/32 Scanning
• Module Configuration: 2 x 2
• Installation Type: Mobile / Fixed Installation
• Installation Methods: Hanging, Stacking, Direct Wall Mounting
• Service Access: Front and Rear
• Control System: Novastar A8s-N
• Power Box: Swappable All-in-One Design
• Maximum Power Usage: 150W
• Input Power: 450W
• Rated Lifespan: 100,000 Hours
• Front Protection Rating: IP30
• Rear Protection Rating: IP20
• Dimensions: 19.69 x 19.69 x 2.52 in (500 x 500 x 64 mm)
• Weight: 11 lb (5 kg)
• Certifications: FCC, RoHS, CE
• UPC: 618528599946
