JMAZ ThunderZ TZ1001 | 1.5ft Square Straight Truss | 12in F34-Compatible Aluminum Section

JMAZ TZ1001  (JMAZ Square 12 Inch TZ34 Straight Truss 1.5 Foot (0.5M))

Square Straight Truss Section

The JMAZ ThunderZ TZ1001 is a 1.5-foot square straight truss section designed for professional staging, lighting, exhibition, and event-production systems. Its 12-inch profile and EN AW-6082 aluminum construction provide a durable, lightweight building block for compatible F34 truss structures.

JMAZ ThunderZ TZ1001 Competitive Differences

• Constructed from EN AW-6082 aluminum for strength and corrosion resistance
• Standard F34 compatibility supports integration with compatible truss systems
• Compact 1.5-foot length is useful for precise span adjustments and smaller structures
• 2-inch main tubing and 3/4-inch bracing provide a professional square truss profile
• TÜV certified for verified manufacturing and product compliance

JMAZ ThunderZ TZ1001 Description

The JMAZ ThunderZ TZ1001 is a compact straight section for building or extending compatible square truss systems. Measuring approximately 1.5 feet, or 0.5 meter, it is useful where a full-length section would be too large or where a structure requires a more precise overall span.

The truss is manufactured from EN AW-6082 aluminum, a material selected for its combination of strength, durability, and manageable weight. Its square 12-inch profile uses 2-inch main tubing with 3/4-inch diagonal bracing for compatibility with standard F34-style systems.

This section is suitable for stage lighting grids, trade show structures, DJ and production setups, scenic frameworks, and other professional event applications. At approximately 12 pounds, it remains manageable for touring and installation crews while providing a rigid structural component for approved configurations.

All truss systems must be assembled, inspected, and operated by qualified personnel. Load limits depend on the complete system design, connection hardware, support method, span, and loading configuration.

TZ1001 Features

• 1.5-foot straight square truss section
• Approximate metric length of 0.5 meter
• 12-inch square truss profile
• EN AW-6082 aluminum construction
• Compatible with standard F34 truss systems
• 2-inch main tubing
• 3/4-inch diagonal bracing
• TÜV certified
• Suitable for stage, lighting, exhibition, and event structures
• Compact length for precise truss span adjustments

TZ1001 Specifications

• Product Type: Square straight truss section
• Truss Series: TZ34
• Length: 1.5 ft (0.5 m)
• Profile Size: 12 in square
• Material: EN AW-6082 aluminum
• Main Tubing Diameter: 2 in (50.8 mm)
• Bracing Diameter: 3/4 in (19.1 mm)
• Compatibility: Standard F34 truss
• Certification: TÜV
• Weight: 12 lb (5.44 kg)

What's In The Box

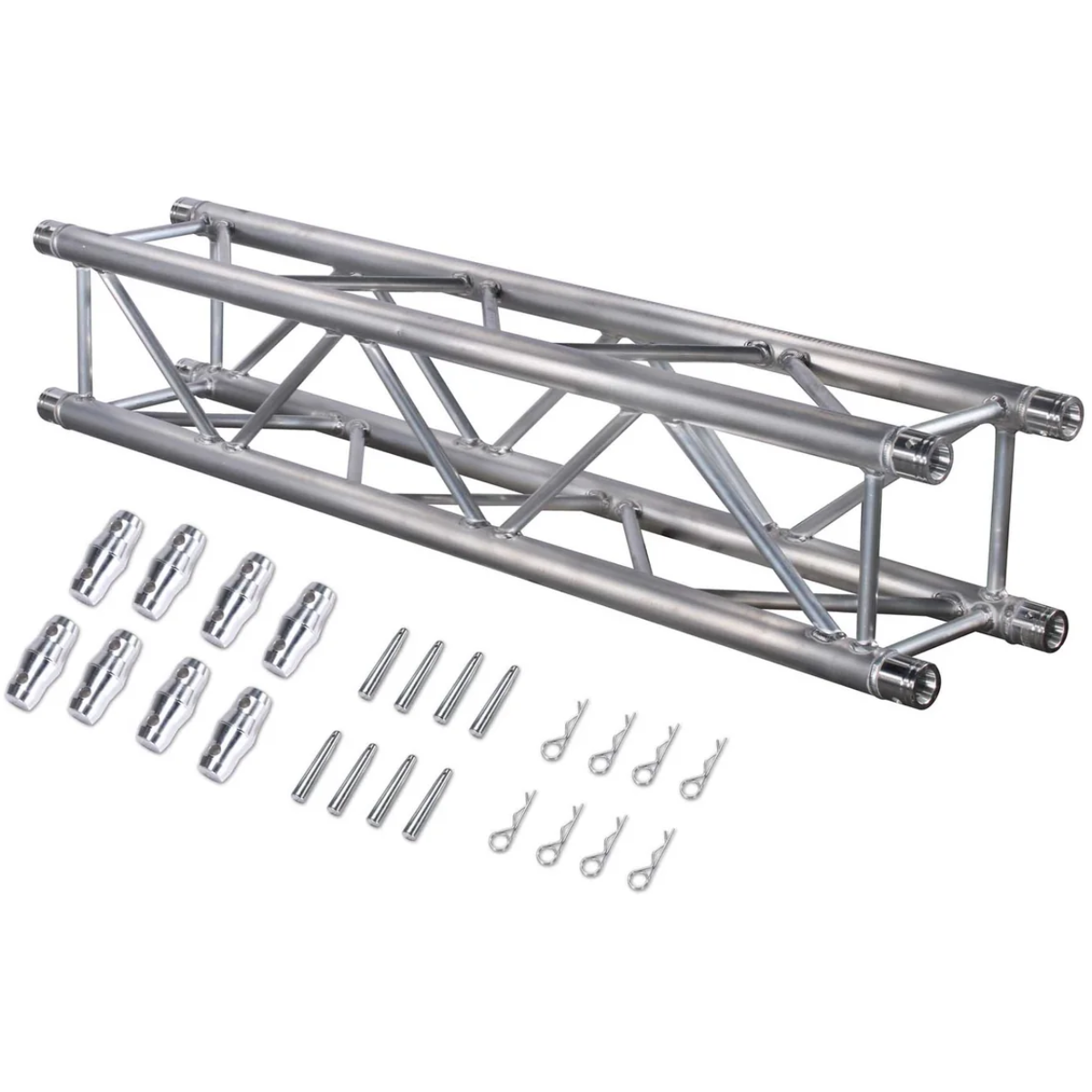

• JMAZ ThunderZ TZ1001 1.5-foot square straight truss section
