JMAZ Thunderz TZ1007 | 12in 6-Way TZ34 Junction Block | TUV-Certified F34 Truss Compatibility

JMAZ TZ1007  (JMAZ Square 12 Inch 6 Way TZ34 Universal Corner Junction Block)

JMAZ Thunderz TZ1007 | 12in 6-Way TZ34 Junction Block | TUV-Certified F34 Truss Compatibility The JMAZ Thunderz TZ1007 is a 12-inch square, 6-way universal corner junction block designed for standard F34 truss systems. Its EN-AWT6082 aluminum construction and included 3-way parts and pins support flexible stage, lighting, and event-production configurations.

Universal Corner Junction Block

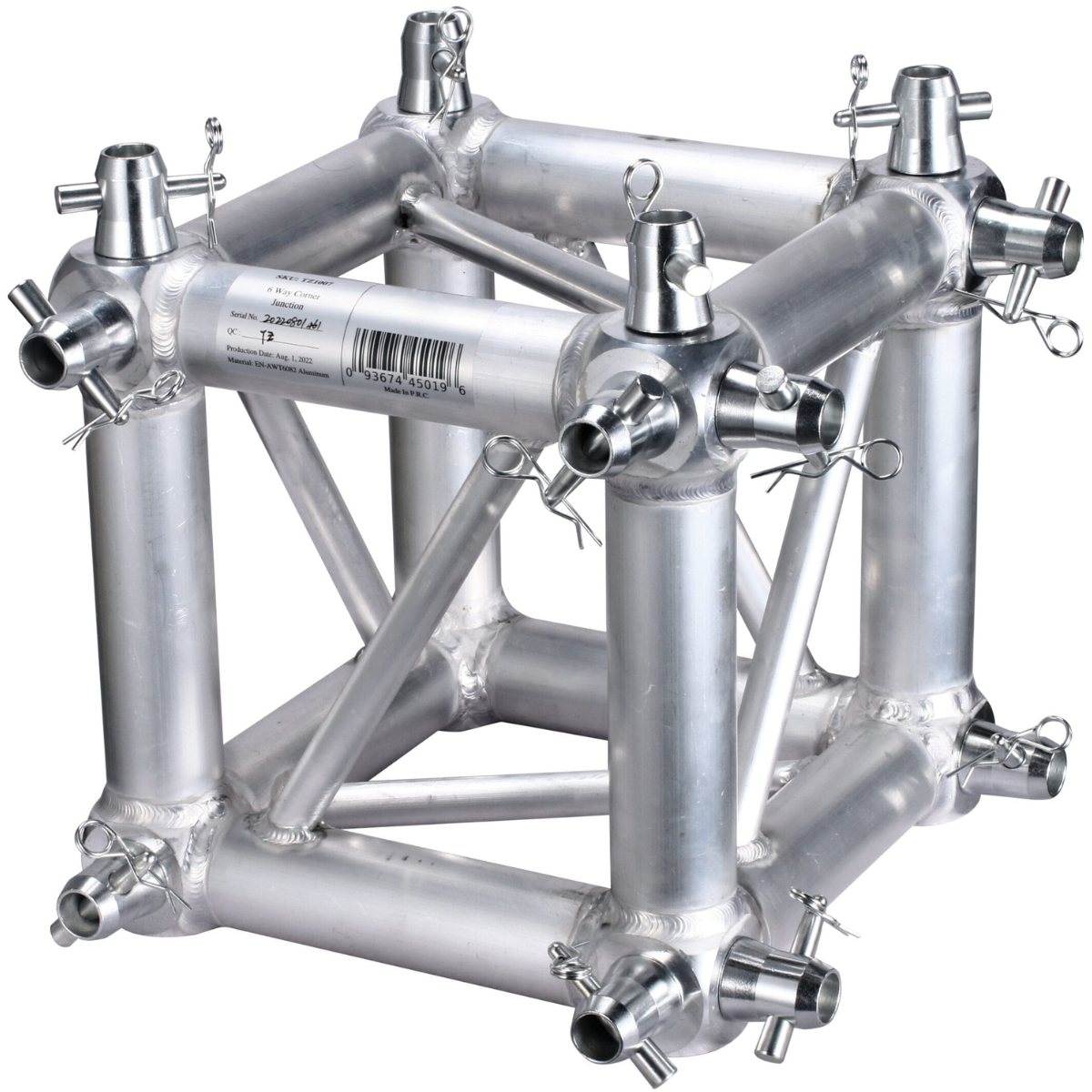

The JMAZ Thunderz TZ1007 is a square 12-inch, 6-way corner junction block designed to create multi-directional connections in compatible F34 truss systems. Its universal configuration helps production teams, installers, and event professionals build corners, intersections, and customized truss structures.

JMAZ Thunderz TZ1007 Competitive Differences

• Six-way universal design supports multiple truss connection directions
• Constructed from EN-AWT6082 aluminum for demanding production applications
• TUV-certified design for use with standard F34 truss systems
• Includes 3-way parts and connection pins

JMAZ Thunderz TZ1007 Description

The JMAZ Thunderz TZ1007 provides a versatile connection point for assembling square truss structures. Its 6-way configuration allows sections to connect from multiple directions, making it useful for stage roofs, lighting grids, exhibit structures, event installations, and other modular truss designs.

Constructed from EN-AWT6082 aluminum, the junction block is built for repeated use in mobile production and installed applications. It is compatible with standard F34 truss featuring 2-inch main tubing and 3/4-inch bracing.

The TZ1007 includes the required 3-way parts and pins, helping simplify integration into a compatible truss system. At 25 pounds, it provides a substantial central junction while remaining manageable for event-production crews and system installers.

TZ1007 Features

• Square 12-inch universal corner junction block
• Six-way connection configuration
• Compatible with standard F34 truss
• EN-AWT6082 aluminum construction
• TUV certified
• Designed for modular stage and lighting truss structures
• Includes 3-way parts and pins

TZ1007 Specifications

• Product Type: Universal corner junction block
• Configuration: 6-way
• Size: 12 in square
• Material: EN-AWT6082 aluminum
• Certification: TUV certified
• Truss Compatibility: Standard F34
• Main Tubing Diameter: 2 in
• Bracing Diameter: 3/4 in
• Weight: 25 lb (11.3 kg)

What's In The Box

• JMAZ Thunderz TZ1007 junction block
• 3-way parts
• Connection pins
