JMAZ Thunderz TZ1010 | 16in Aluminum Truss Base Plate | Standard F34 Compatibility

JMAZ TZ1010  (JMAZ 16x16 inch Aluminum TZ34 Square Truss Base Plate)

Square Truss Base Plate

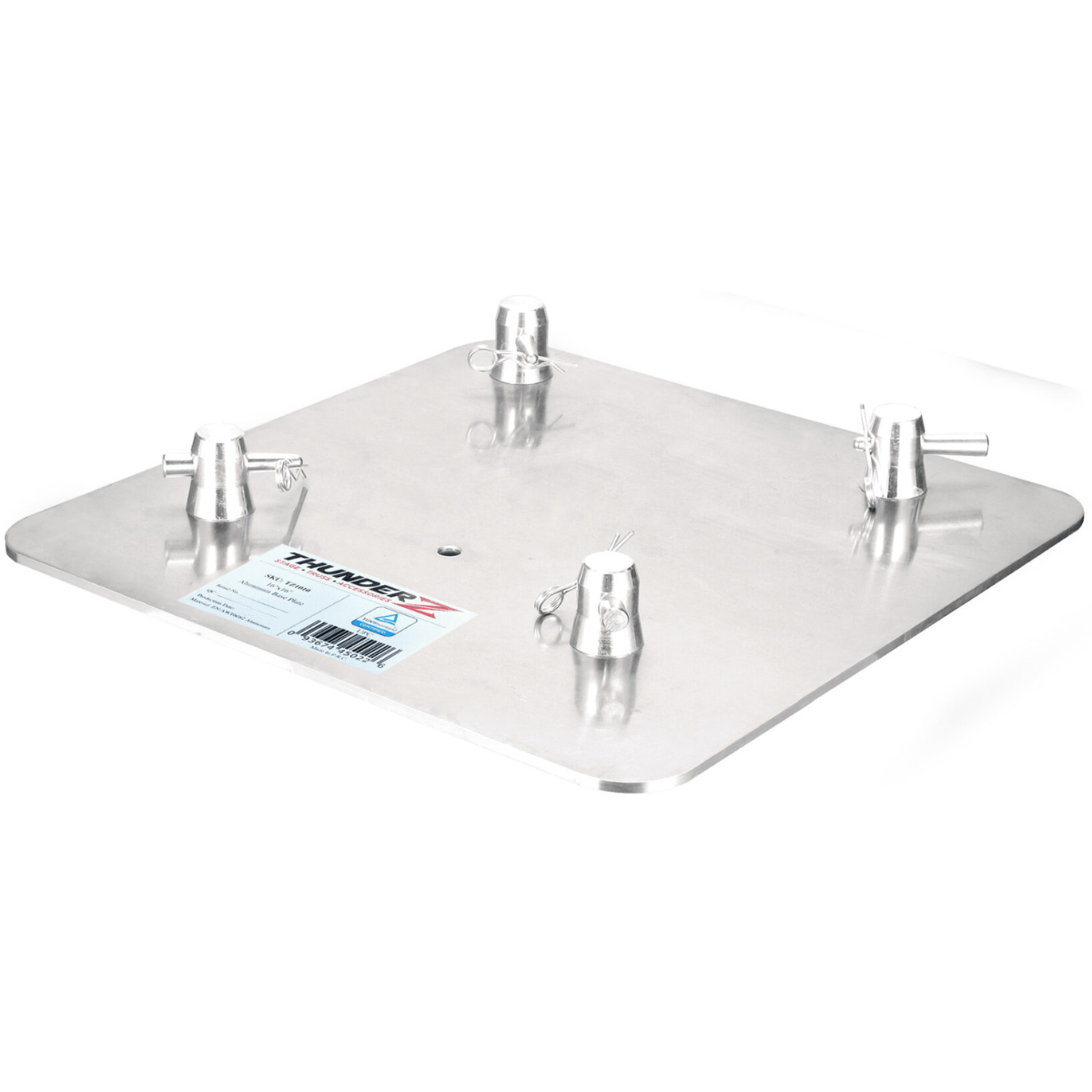

The JMAZ Thunderz TZ1010 is a 16-inch aluminum base plate designed to provide a stable mounting point for compatible standard F34 square truss sections. Its broad footprint is useful for vertical truss installations in stage lighting, event production, exhibits, displays, and other modular truss applications.

JMAZ Thunderz TZ1010 Competitive Differences

• Designed for compatibility with standard F34 square truss systems
• Large 16 x 16-inch footprint provides a substantial mounting surface
• Constructed from EN-AWT6082 aluminum
• 0.20-inch plate thickness balances strength with manageable handling

JMAZ Thunderz TZ1010 Description

The JMAZ Thunderz TZ1010 provides a dedicated base connection for compatible square truss structures. It is designed for supporting vertical truss sections in properly configured stage, lighting, exhibit, and event-production installations.

Manufactured from EN-AWT6082 aluminum, the base plate offers durable construction for repeated setup and installation use. Its 16-inch-square surface provides additional mounting area for applications that benefit from a larger base footprint.

The TZ1010 measures 0.20 inches thick and weighs 9 pounds, making it manageable for mobile production crews and system installers. Its standard F34 compatibility allows it to integrate with appropriate TZ34 and F34-style square truss systems.

TZ1010 Features

• 16-inch square aluminum truss base plate
• Designed for standard F34 truss systems
• EN-AWT6082 aluminum construction
• Large mounting footprint
• Suitable for vertical truss installations
• Designed for stage, lighting, exhibit, display, and event-production applications

TZ1010 Specifications

• Product Type: Square truss base plate
• Material: EN-AWT6082 aluminum
• Truss Compatibility: Standard F34
• Dimensions: 16 x 16 x 0.20 in (406.4 x 406.4 x 5.1 mm)
• Weight: 9 lb (4.1 kg)
