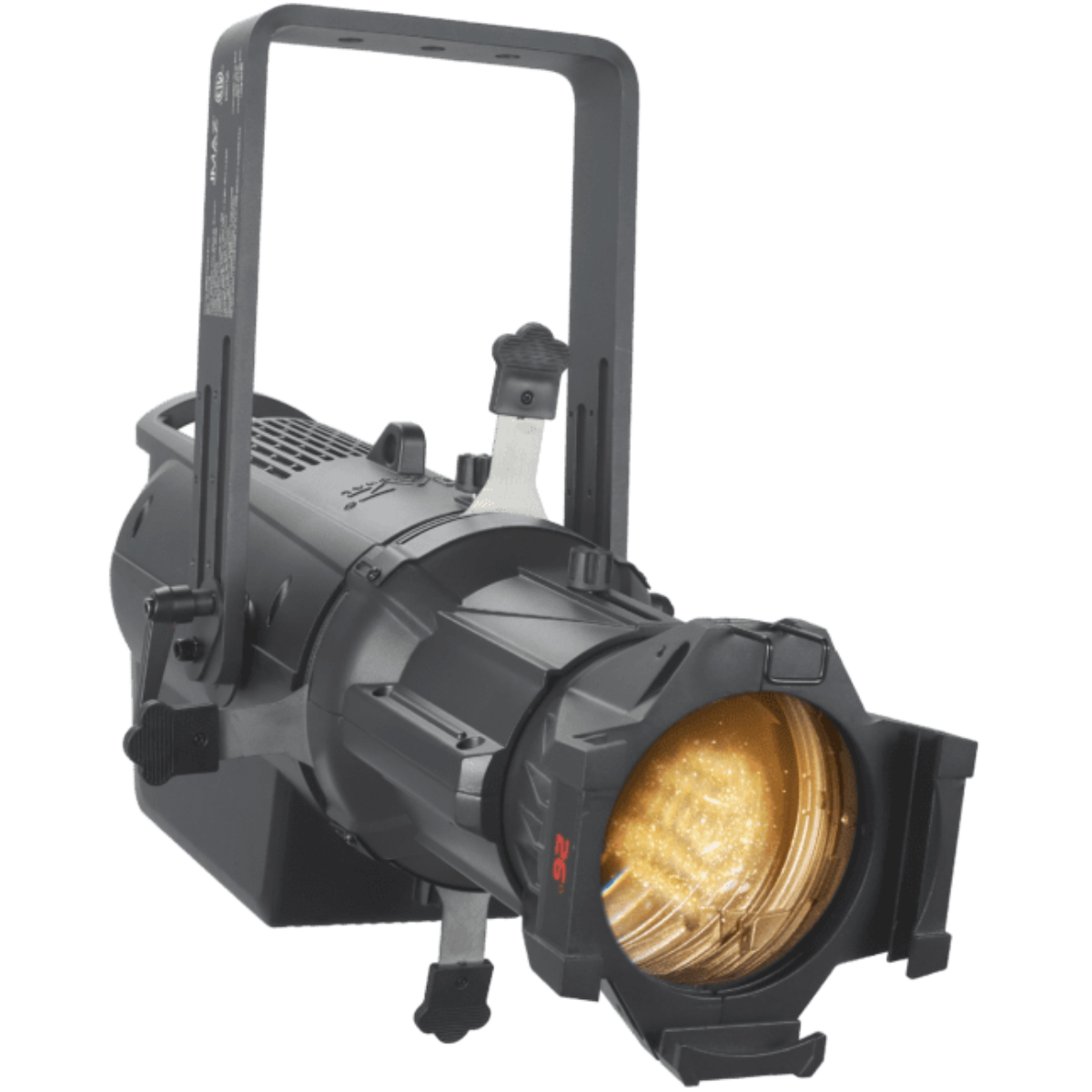

JMAZ JP4008
(JMAZ Zona Profile DW)
Variable White LED Ellipsoidal
JMAZ ZONA Profile DW is a variable white LED ellipsoidal fixture designed for precise, natural-looking white light in theatre, broadcast, worship, studio, architectural, and live production environments. With adjustable CCT from 2700K to 7500K, high color rendering up to CRI 97, and compatibility with standard ellipsoidal accessories, it gives lighting professionals flexible white-light control in a modern, production-ready fixture.
JMAZ ZONA Profile DW Competitive Differences
- Variable white CCT control from 2700K to 7500K for warm tungsten-style looks through crisp daylight output
- High-output warm white and cool white LED engine with color rendering up to CRI 97
- Ultra-smooth 16-bit dimming with 6 dimming modes and 4 selectable dimming curves
- Adjustable PWM for flicker-free performance across a wide range of camera systems
- Auto, Fast, Slow, and Fan-Off cooling modes for noise-sensitive environments
- RDM-enabled for remote configuration, monitoring, and system integration
- Advanced adjustable yoke design for easier positioning in low-clearance installations
- Compatible with standard ellipsoidal lenses, gel frames, and gobo holders; lens sold separately
JMAZ ZONA Profile DW Description
The JMAZ ZONA Profile DW was built for designers, programmers, and production teams who need beautifully controlled white light from a flexible ellipsoidal fixture. Instead of being limited to a fixed tungsten or daylight color temperature, this fixture allows precise CCT adjustment from 2700K to 7500K, making it useful across changing stage, studio, broadcast, and architectural lighting needs.
Powered by a dedicated warm white and cool white LED system, the ZONA Profile DW delivers balanced white-light output with excellent color fidelity. CRI performance reaches up to 97 at 2700K, helping produce natural skin tones, accurate scenic detail, and refined illumination for camera-facing environments.
For demanding productions, the fixture offers smooth 0-100% electronic dimming, 16-bit control, multiple dimming modes, selectable dimming curves, and high-speed shutter and strobe effects. Adjustable PWM helps support flicker-free results on camera, while multiple fan modes allow the fixture to adapt to quiet theatres, studios, houses of worship, and other noise-sensitive spaces.
The die-cast aluminum body, black exterior finish, 5-pin DMX connectivity, REAN IP65 TRUE1 power connections, and RDM support make the JMAZ ZONA Profile DW a dependable choice for professional installations and touring systems. It is compatible with optional 19°, 26°, 36°, and 50° lenses, plus standard gobo and gel frame workflows, allowing it to integrate easily into existing ellipsoidal lighting rigs.
ZONA Profile DW Features
- Variable white LED ellipsoidal fixture
- 350W cool white LED source
- 350W warm white LED source
- Linear CCT adjustment from 2700K to 7500K
- CRI up to 97 at 2700K
- CRI 95 at 3200K and 5600K
- 16-bit dimming for smooth fades and precise control
- 0-100% smooth linear electronic dimming
- 6 dimming modes
- 4 selectable dimming curves
- Adjustable PWM for flicker-free camera performance
- High-speed electronic shutter and strobe
- Variable strobe from 1-25 Hz
- Preset pulse strobe and random strobe effects with variable speed
- Built-in auto programs
- DMX and RDM control
- DMX personalities: 1, 3, 4, 8, and 11 channels
- Optional CRMX USB wireless DMX add-on powered by LumenRadio, SKU JP5001
- Auto, Fast, Slow, and Fan-Off cooling modes
- Advanced ultra-quiet fan cooling
- Advanced adjustable yoke design for precise positioning
- Compatible with optional 19°, 26°, 36°, and 50° lenses; lens not included
- Compatible with standard ellipsoidal lenses, gel frames, and gobo holders
- Die-cast aluminum body with black exterior finish
- REAN IP65 TRUE1 power input and output connections
- NEUTRIK 5-pin DMX data connectors
ZONA Profile DW Specifications
- Light Source: 1 x 350W cool white LED and 1 x 350W warm white LED
- LED Life Expectancy: 50,000 hours
- Linear CCT: 2700K-7500K
- Color Temperature at Full: 4687K
- CRI: 97 at 2700K
- CRI: 95 at 3200K
- CRI: 95 at 5600K
- Dimmer: 0-100% smooth linear electronic dimming
- Strobe/Shutter: High-speed electronic shutter and strobe
- Strobe Rate: 0-25 Hz variable
- Dimming Modes: 6
- Dimming Curves: 4
- Built-In Auto Programs: Yes
- Control Protocol: DMX, RDM
- DMX Personalities: 1/3/4/8/11
- Optional Wireless DMX Add-On: CRMX USB powered by LumenRadio, SKU JP5001
- Optional Gobo Maximum Size: 90 mm outside, 70 mm image, 2.5 mm maximum thickness
- Optional Gobo Size B: 86 mm outside, 64.5 mm image, 2.5 mm maximum thickness
- Available Lenses: 19°, 26°, 36°, and 50°; lens sold separately
- Body: Die-cast aluminum
- Exterior Finish: Black
- IP Rating: IP20
- Cooling: Advanced ultra-quiet fan
- Power Connection: US Edison ETL listed plug to REAN IP65 TRUE1
- Power Input: REAN IP65 TRUE1
- Power Output: REAN IP65 TRUE1
- Data Connectors: NEUTRIK 5-pin DMX
- Power Cable Length: 5 ft (1.5 m)
- Input Voltage: 100-240V AC, 50/60Hz, auto-ranging with active PFC
- Power Consumption: 350W
- Power Linking: Up to 5 units at 110V on a 20A circuit
- Power Linking: Up to 9 units at 208V on a 20A circuit
- Power Linking: Up to 11 units at 230V on a 20A circuit
- Fuse: T6.3A/250V
- Operating Temperature: 40°C (104°F)
- Minimum Temperature: -10°C (14°F)
- Maximum Temperature: 60°C (140°F)
- Certifications: CE, ETL Pending, RoHS, FCC
- Dimensions: 21.6 x 10.8 x 8.7 in (551.2 x 276 x 221 mm)
- Weight: 18.62 lb (8.5 kg)
- UPC: 618528599878
What's In The Box
- JMAZ ZONA Profile DW with shutter barrel; lens sold separately
- TRUE1 power cable
- User manual
- Safety cable
- Gobo holder
