LD Systems MAILA SAT | Passive Line Array Satellite | 100° x 8° Coverage with EasySplay

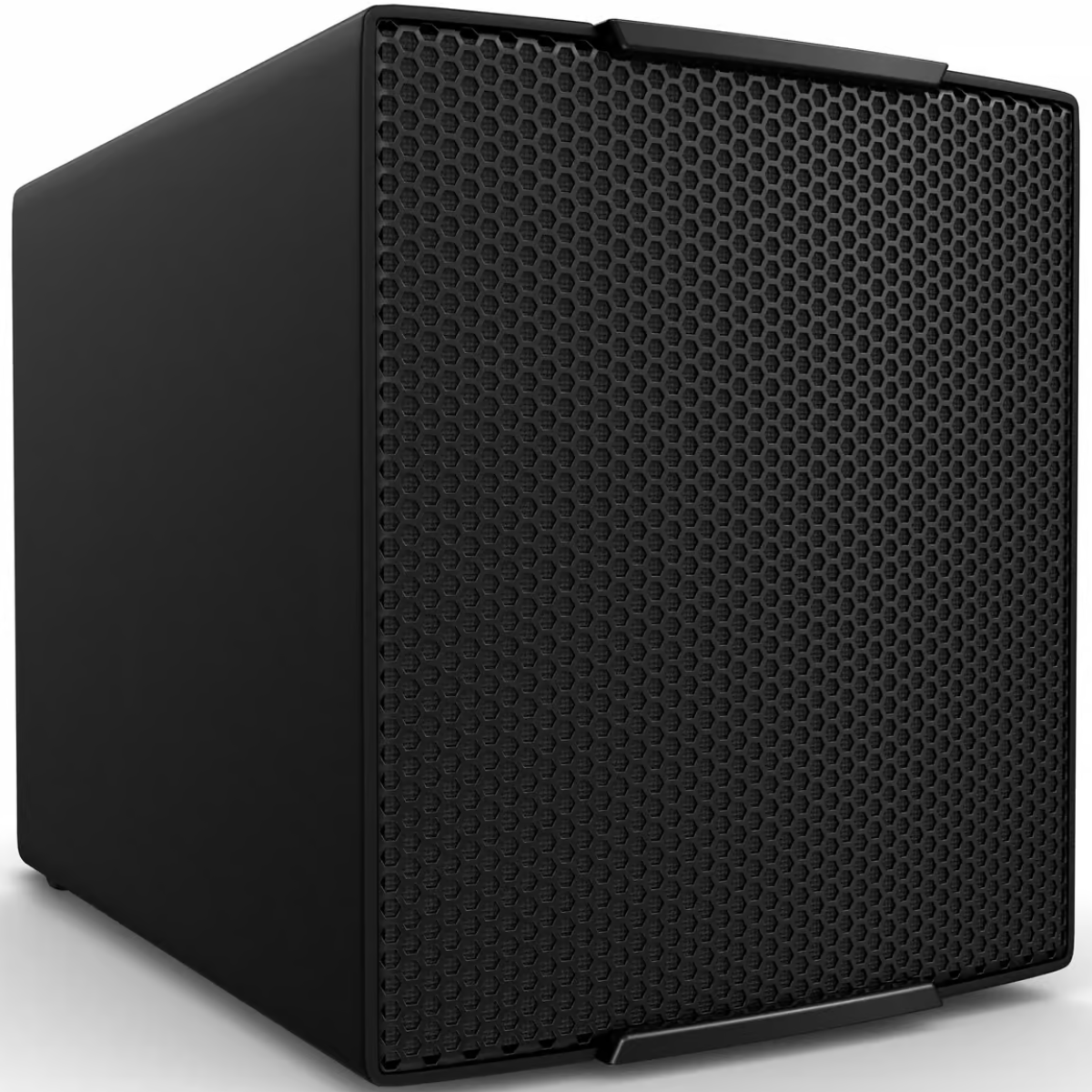

LD Systems MAILA SAT  (LD Systems LDMAILASAT)

Passive Line Array Satellite Speaker

LD Systems MAILA SAT is an ultra-compact passive array satellite designed for scalable, high-performance line array systems. Engineered with advanced coaxial technology and precision waveguides, it delivers focused vertical coverage, wide horizontal dispersion, and impressive throw in a lightweight die-cast aluminium enclosure.

Built for flexible deployment in portable and installed sound systems, MAILA SAT combines extended low-mid punch down to 100 Hz with smooth, natural high-frequency dispersion. Its compact footprint and innovative mechanical design make it ideal for events, corporate AV, houses of worship, and mobile production setups.

LD Systems MAILA SAT Competitive Differences

• Advanced WaveAhead® coaxial driver array with SonicGuide® waveguide design
• Patented EasySplay® mechanism for one-handed angle adjustment (0°–8°)
• SmartLink+® cable-free signal and power connection system
• Scalable configuration of up to eight MAILA SAT modules

LD Systems MAILA SAT Description

The LD Systems MAILA SAT is a true line array element engineered for precision coverage and efficient energy distribution. Its coaxial configuration places five vertically aligned 1" dome tweeters in front of a 6.5" horn-loaded midrange driver with a 1.8" voice coil and neodymium magnet. This Advanced WaveAhead® design, combined with dual SonicGuide® waveguides, delivers a classic line array radiation pattern with strong throw and controlled dispersion.

The five 1" titanium dome tweeters are vertically arranged to provide a smooth 100° horizontal by 8° vertical beam angle without the need for a compression chamber. This results in natural high-frequency response and consistent audience coverage. A phase plug in the midrange driver enhances efficiency while reducing heat buildup, contributing to improved overall performance.

Despite its compact size, the integrated passive membrane extends low-mid response down to 100 Hz, providing additional punch and body. With peak SPL ratings up to 129.1 dB (pink noise), MAILA SAT offers impressive output capability for its size, making it suitable for small to mid-size venues and scalable array deployments.

Setup is streamlined thanks to SmartLink+®, allowing cable-free mechanical, signal, and power connections between satellites, MAILA COL column modules, and MAILA SPA amplifier modules via robust aluminium rails. The patented EasySplay® mechanism, integrated into the rear handle, enables continuous angle adjustment from 0° to 8° with one hand—even under load—allowing precise sound coverage tuning for any environment.

MAILA SAT Features

• Ultra-compact passive line array satellite
• Advanced WaveAhead® coaxial driver configuration
• 5 x 1" titanium dome tweeters
• 1 x 6.5" horn-loaded midrange driver with 1.8" voice coil
• Neodymium magnet motor structure
• SonicGuide® dual waveguide system
• Integrated passive membrane for extended low-mid response
• Frequency range: 100 Hz – 20 kHz
• Radiation pattern: 100° (H) x 8° (V)
• Max SPL peak (pink noise): 129.1 dB
• Max SPL peak (sine burst): 128.2 dB
• Power handling (AES): LF 170 W / HF 50 W
• Patented EasySplay® adjustable angle system (0°–8°)
• SmartLink+® cable-free connection system
• Scalable up to eight MAILA SAT modules
• Die-cast aluminium unibody housing

MAILA SAT Specifications

• Type: Passive
• Speaker System: 2-way
• Frequency Response: 100 – 20,000 Hz
• Beam Angle: 100° (horizontal) / 8° (vertical)
• Max SPL Peak (pink noise, fullspace/1 m, CF 4): 129.1 dB
• Max SPL Peak (sine burst, fullspace/1 m, THD ≤10%): 128.2 dB
• Max SPL Average (sine burst, BW, fullspace/1 m): 115 dB
• Power Handling (AES): LF 170 W / HF 50 W
• LF Driver: 6.5" with neodymium magnet
• LF Voice Coil: 1.8"
• HF Drivers: 5 x 1"
• Input Connector: SmartLink+®
• Cabinet Material: Die-cast aluminium
• Design: Bass reflex with passive membrane
• Dimensions (W x H x D): 8.07 x 9.21 x 8.90 in (205 x 234 x 226 mm)
• Weight: 16.87 lb (7.65 kg)
• Color: Black

What's In The Box

• MAILA SAT satellite speaker
• Integrated EasySplay® mechanism
